Autel CSC0802-10 Corner Reflector | US Version
US Version | North American Market
- Application: OE-sized corner reflector for radar calibration on supported Toyota, Honda and Subaru vehicles, including Blind Spot Monitoring (BSM).
- Included: One CSC0802-10 corner reflector, part number 802-10. CSC0800 stand and CSC0802-13 laser sold separately.
- Warranty: One-year limited warranty.
Confirm your calibration setup before ordering.
Email
support@autel-us.com
with the vehicle year, make, model, required calibration
and your existing Autel equipment model numbers.
Suggested accessories—select only what your calibration procedure requires. Already own a component? Uncheck it before adding to cart.
Autel CSC0802-10 Corner Reflector — US Version

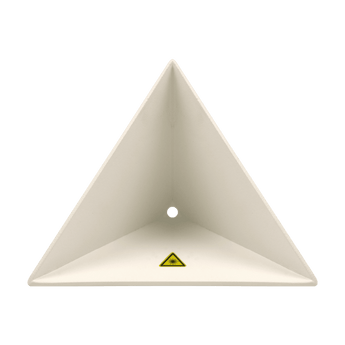

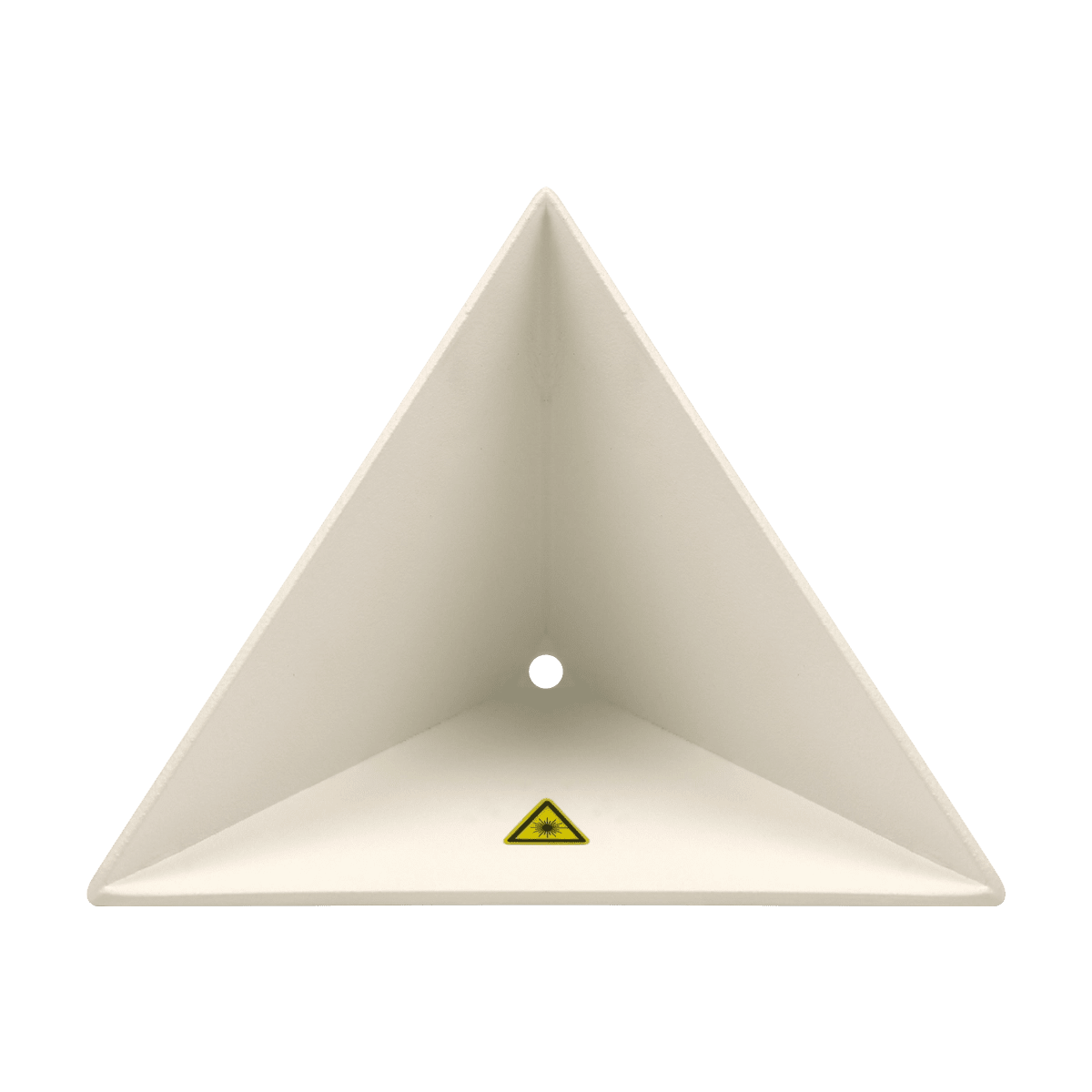

The Autel CSC0802-10 (part number 802-10) is an OE-sized corner reflector for radar calibration on supported Toyota, Honda and Subaru vehicles, including Blind Spot Monitoring (BSM) systems. This listing is for the North American US Version.
- OE-sized corner reflector: For vehicle calibration procedures that specify this reflector.
- Application: Toyota, Honda and Subaru radar calibration, including BSM. Confirm the required target for the specific vehicle and procedure.
- Related equipment: The CSC0800 stand and CSC0802-13 corner laser are separate products. Check your existing equipment before ordering.
- Warranty: Covered by a one-year limited warranty.
Confirm compatibility before purchase: Email support@autel-us.com with the vehicle year, make, model, required calibration, and your existing Autel tablet, software and calibration equipment. We can help check the required configuration before you order.
Autel CSC0802-10 US Version — Radar Calibration Accessory
OE-Sized Corner Reflector for Supported Calibration Procedures

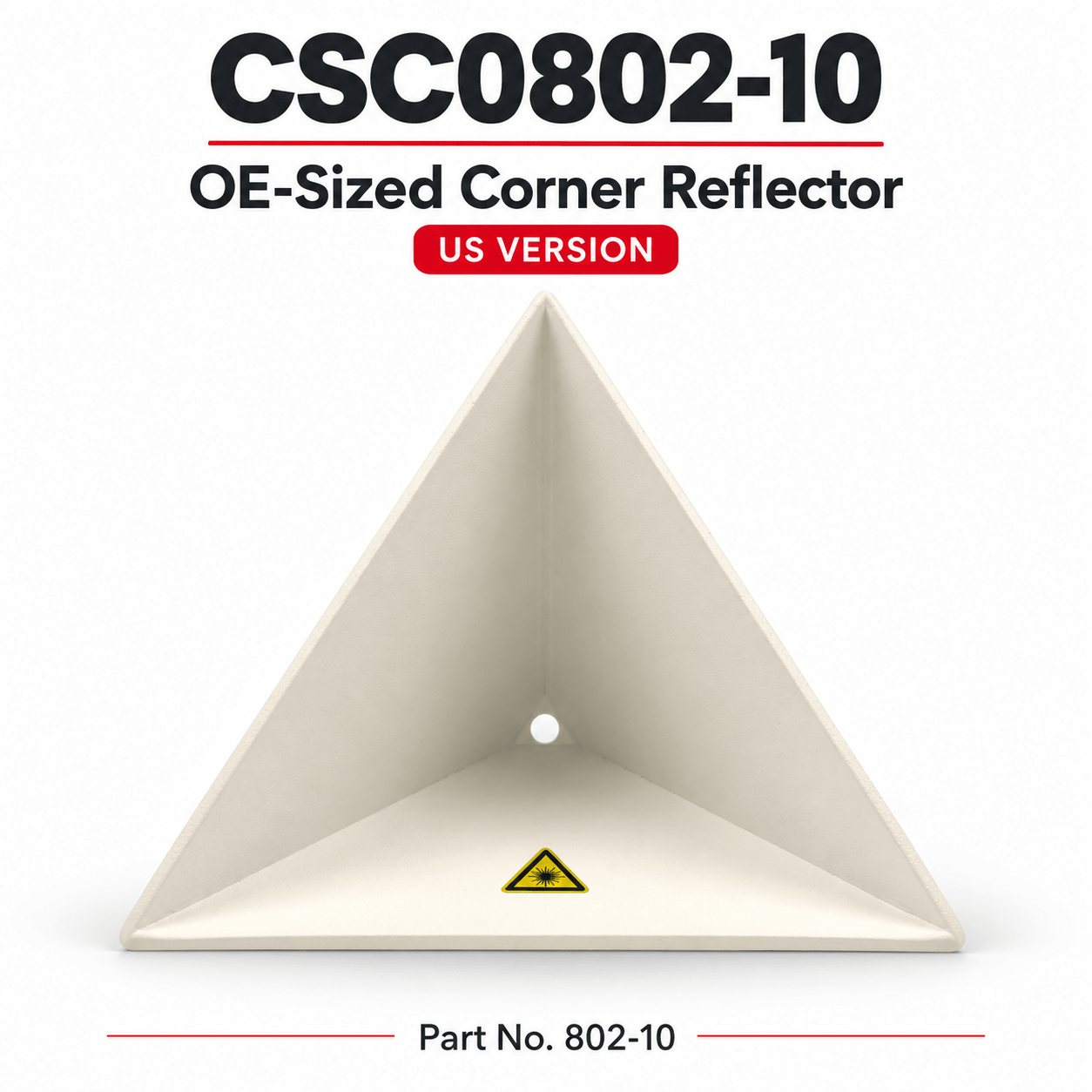

The Autel CSC0802-10 is an OE-sized corner reflector for radar calibration on supported Toyota, Honda and Subaru vehicles, including Blind Spot Monitoring (BSM) systems. The North American part number is 802-10.
- Product identity: CSC0802-10 corner reflector, supplied as the US Version.
- Purpose: A calibration accessory for procedures that specify this reflector.
- Warranty: Covered by a one-year limited warranty.
Choose by Vehicle and Calibration Procedure

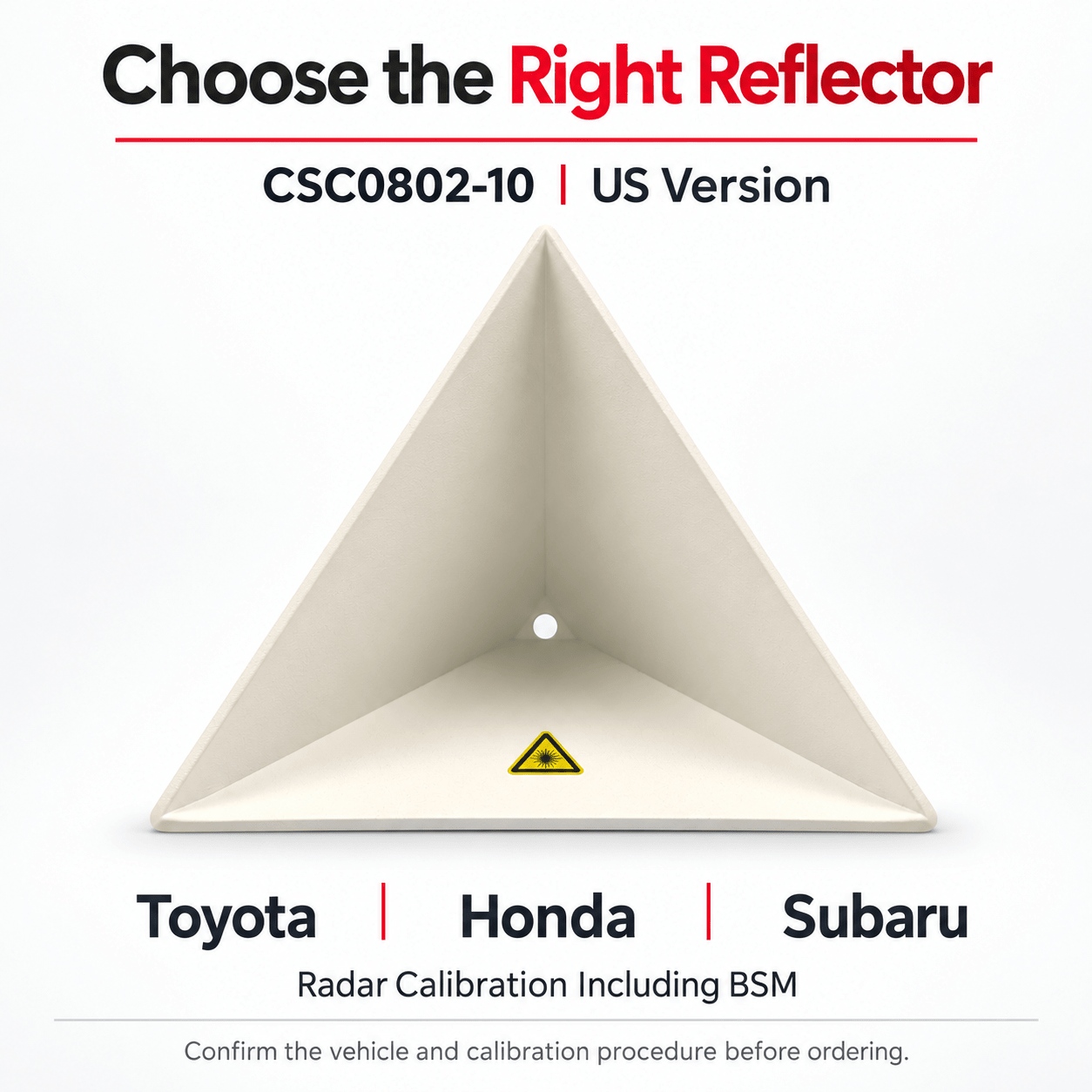

Autel identifies the CSC0802-10 for Toyota, Honda and Subaru radar calibration applications. Confirm the specified reflector for the vehicle and system being serviced before ordering.
The CSC0802-11 is a different reflector identified for Hyundai and Mazda applications. Similar appearance does not establish that the two models are interchangeable.
Send the vehicle year, make, model and required calibration to support@autel-us.com so we can help check the application before purchase.
Check Your Existing Equipment Before Adding Accessories

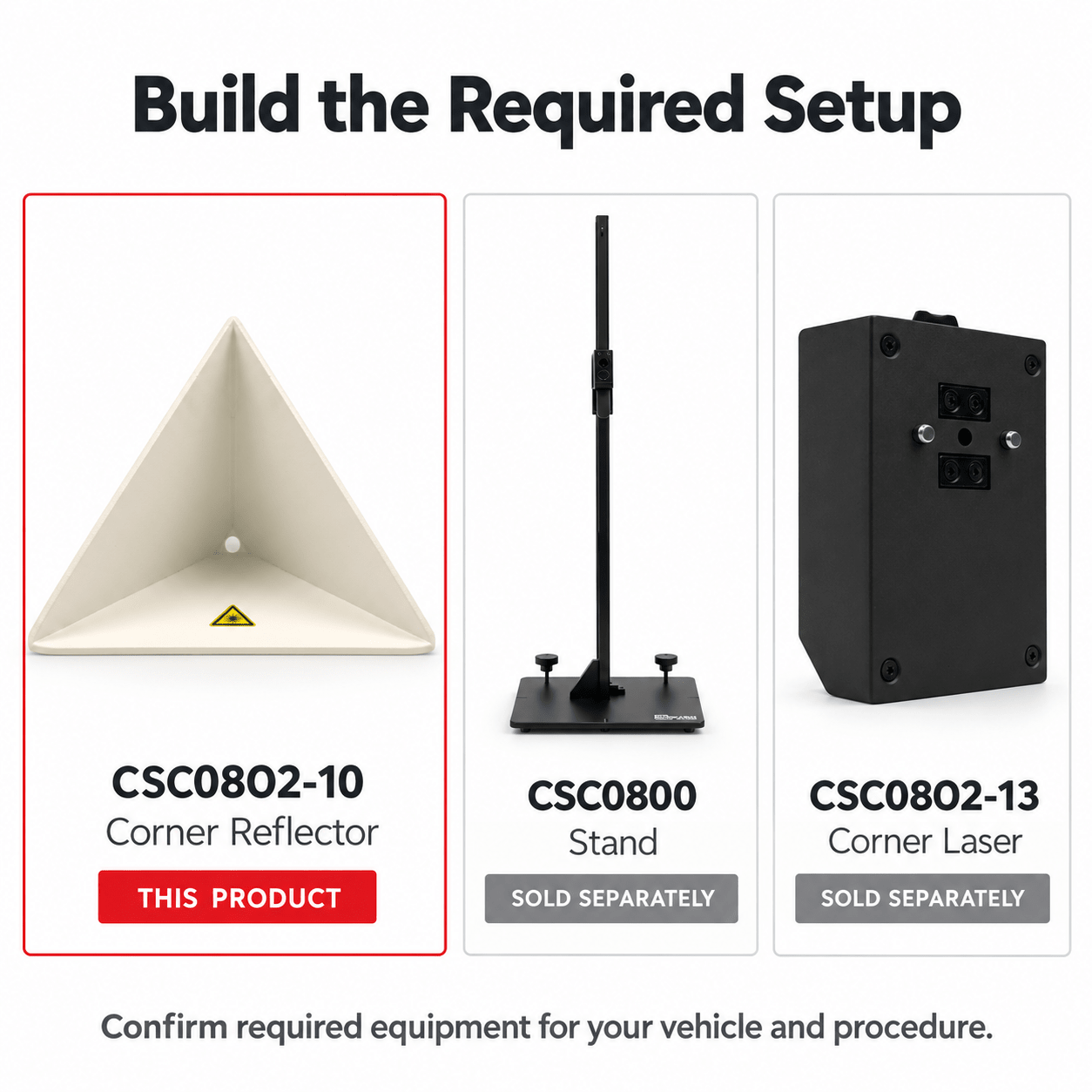

The reflector, stand and corner laser are separate products in Autel's OE-sized corner reflector accessory range. This listing is for the CSC0802-10 reflector.
- CSC0800 stand: Includes the stand, base and attachment handle. Sold separately.
- CSC0802-13 corner laser: A battery-powered laser emitter that attaches between the stand and an applicable corner reflector. Sold separately.
These accessories alone do not define a complete calibration setup. Required diagnostic equipment, software, positioning tools and preparation depend on the vehicle and procedure.
Before ordering, email support@autel-us.com with your existing Autel tablet, software and calibration equipment so we can help check what you need.
CSC0802-10 Application & Compatibility
Which Calibration Jobs Is This Reflector For?
The Autel CSC0802-10, part number 802-10, is an OE-sized corner reflector for radar calibration on supported Toyota, Honda and Subaru vehicles, including Blind Spot Monitoring (BSM) applications. This listing is for the US Version supplied for the North American market.
When choosing a Toyota BSM calibration target or a Honda or Subaru blind spot calibration reflector, confirm the target specified for the vehicle and calibration procedure. A matching vehicle brand alone does not establish compatibility.
Match the Reflector to the Vehicle Procedure
Check the required reflector against the applicable vehicle service information and your Autel calibration instructions before ordering. Confirm the exact accessory model rather than selecting a reflector by appearance.
- Vehicle: Confirm the year, make and model.
- Calibration task: Identify the radar system and procedure you need to perform.
- Required accessory: Verify that the procedure calls for CSC0802-10 or the corresponding Autel reference AUTEL-CSC0802/10.
- Existing setup: Check your Autel tablet, installed calibration software and positioning equipment.
Check Your Stand and Laser Before Ordering
The CSC0802-10 corner reflector, CSC0800 stand and CSC0802-13 corner laser are separate products. Purchasing this reflector does not include the stand or laser emitter.
Review the equipment you already own and the setup required by the calibration procedure. If you are adding this reflector to an existing Autel ADAS system, confirm the required mounting and positioning configuration before purchasing additional accessories.
Need Help Confirming the Right Configuration?
Before ordering, email support@autel-us.com with the vehicle year, make, model, required calibration and the model numbers of your existing Autel tablet, software and calibration equipment.
We can help check the required reflector and related equipment so you can choose the appropriate configuration.
|
Autel All Systems ADAS Brochure Official Autel North America system and accessory catalog, including the CSC0802-10 corner reflector (part number 802-10). |
Download |
| Included Item | Part Number | Quantity |
|---|---|---|
| Autel CSC0802-10 OE-Sized Corner Reflector — US Version | 802-10 | 1 |
Related Equipment Sold Separately
This listing includes the CSC0802-10 corner reflector. The following related accessories are not included:
- CSC0800: Corner reflector stand assembly.
- CSC0802-13: Corner reflector laser emitter.
Related equipment shown in product illustrations is for reference and is sold separately. Check the configuration required for your vehicle calibration procedure before ordering.
Need help checking your existing equipment? Email support@autel-us.com with your equipment model numbers and intended calibration.
Compare Autel Corner Reflectors & Related Accessories
Choose the reflector specified for the vehicle calibration procedure, then check the supporting equipment required for your setup. The stand and laser emitter perform different roles from the corner reflectors.
Swipe horizontally to view all accessories.
| Comparison | CSC0802-10 Corner Reflector · This Product | CSC0802-11 Corner Reflector | CSC0800 Stand Assembly | CSC0802-13 Laser Emitter |
|---|---|---|---|---|
| Part Number | 802-10 | 802-11 | 800 | 802-13 |
| Product Type | OE-sized corner reflector | OE-sized corner reflector | Corner reflector stand, base and handle | Battery-powered corner reflector laser emitter |
| Primary Application | Radar calibration on supported Toyota, Honda and Subaru vehicles, including BSM applications | Radar calibration on supported Hyundai and Mazda vehicles, including ACC and BSM applications | Supports Autel corner reflectors and the laser emitter in the required calibration setup | Used with corner reflectors for radar calibration; attaches between the stand and applicable reflector |
| How to Select | Confirm that the vehicle procedure specifies CSC0802-10 | Confirm that the vehicle procedure specifies CSC0802-11 | Check whether your existing setup already has the required compatible stand | Check the laser and positioning requirements for the intended calibration procedure |
| Separate Purchases | Stand and laser emitter sold separately | Stand and laser emitter sold separately | Corner reflector and laser emitter sold separately | Corner reflector and stand sold separately |
| Market Version | North American / US Version | North American / US Version | North American / US Version | North American / US Version |
Confirm the exact accessory before purchasing. Vehicle brands shown above describe the published applications and do not establish coverage for every model or calibration procedure. Do not assume that CSC0802-10 and CSC0802-11 are interchangeable.
Email support@autel-us.com with the vehicle year, make, model, required calibration and your existing equipment model numbers. We can help check which reflector and related accessories your configuration requires.
Autel CSC0802-10 US Version: Frequently Asked Questions
Confirm the right corner reflector for your vehicle and check your existing calibration equipment before ordering.
Q1. Will the CSC0802-10 work for my Toyota, Honda or Subaru blind spot calibration?
Autel lists the CSC0802-10 for radar calibration on supported Toyota, Honda and Subaru vehicles, including Blind Spot Monitoring (BSM) applications. Compatibility must be checked for the specific vehicle and calibration procedure.
Before purchasing, email support@autel-us.com with the vehicle year, make, model, required calibration and your existing Autel equipment. If available, include the target reference shown in the calibration instructions.
Q2. What is the difference between CSC0802-10 and CSC0802-11?
CSC0802-10, part number 802-10, is listed for Toyota, Honda and Subaru radar calibration applications, including BSM. CSC0802-11, part number 802-11, is listed for Hyundai and Mazda radar calibration applications, including ACC and BSM.
Choose the reflector specified for the vehicle procedure. Similar appearance does not confirm that the two reflectors are interchangeable.
Q3. Does the CSC0802-10 include the stand and laser, and do I need to buy them?
This listing includes one CSC0802-10 corner reflector. The CSC0800 stand and CSC0802-13 corner laser are sold separately and are not included.
Additional equipment requirements depend on your existing setup and the calibration procedure. Before ordering, email support@autel-us.com with your stand, laser and calibration equipment model numbers so we can help check what you need.
Q4. Can I use this reflector with my existing Autel tablet and ADAS system?
Your tablet, installed ADAS software, calibration equipment and vehicle procedure need to be checked together. Owning an Autel diagnostic tablet alone does not confirm support for the intended calibration.
The reflector does not include a tablet, ADAS software activation or a complete calibration system. Email support@autel-us.com with your equipment models, software details and intended calibration before purchasing if you need help confirming compatibility.
Q5. My instructions show AUTEL-CSC0802/10. Is that the CSC0802-10 listed here?
Autel's IA700 user manual identifies this corner reflector as AUTEL-CSC0802/10. The North American product page lists the model as CSC0802-10 and the part number as 802-10.
Check the complete reference, including the final “10.” Other accessories in the CSC0802 series have different model references and applications.
Q6. What warranty does the CSC0802-10 have?
Autel North America lists the CSC0802-10 with a one-year limited warranty. This listing is for the North American US Version.
For warranty assistance, email support@autel-us.com with your order number and a description of the issue.
