Autel MaxiBAS BT608 Battery & Electrical System Tester — US Version
Contact us with the year, make, model, engine and required function before ordering.
Autel MaxiBAS BT608 Battery & Electrical System Tester | US Version
The Autel MaxiBAS BT608 is a professional battery and electrical system diagnostic tool designed for battery testing, starting and charging system analysis, battery registration, and supported vehicle diagnostics. Using Autel Adaptive Conductance technology, the BT608 provides an advanced method for evaluating battery health and supporting accurate service decisions.

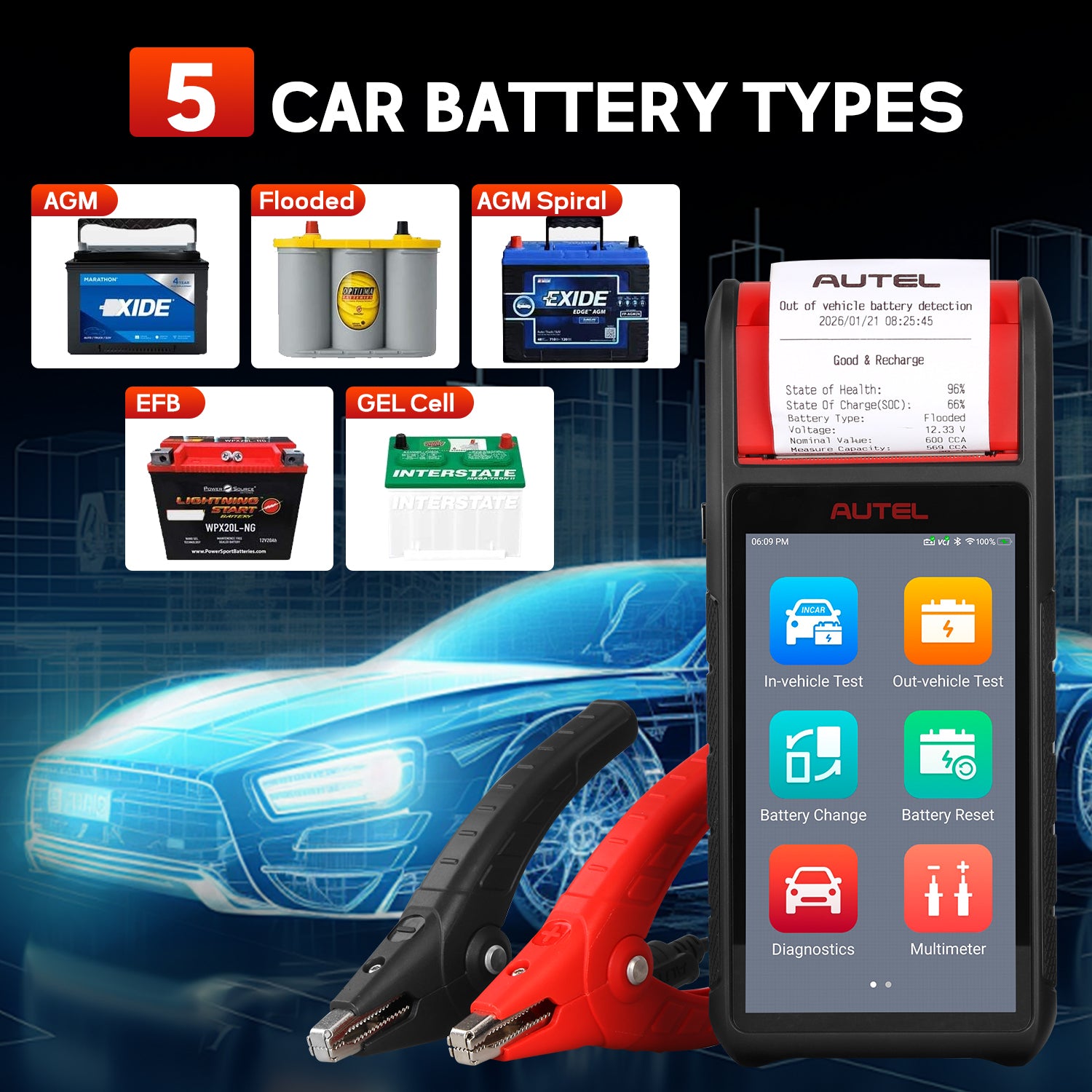

The BT608 supports in-vehicle and out-of-vehicle testing of 6V and 12V batteries rated from 100 to 3000 CCA, including Flooded, AGM, AGM Spiral, EFB, and GEL battery types. It also performs 12V and 24V starting and charging system tests to help technicians identify battery, starter, and charging-system problems.
With the included MaxiVCI V200, technicians can communicate wirelessly with compatible vehicles for battery registration, BMS reset, and supported diagnostic and service functions. The built-in thermal printer allows battery and electrical system test results to be printed directly for customer records and service documentation.
US / North American Version. Vehicle coverage and available functions vary by year, make, model, and system. Contact us before ordering if you need confirmation of a specific vehicle or function.

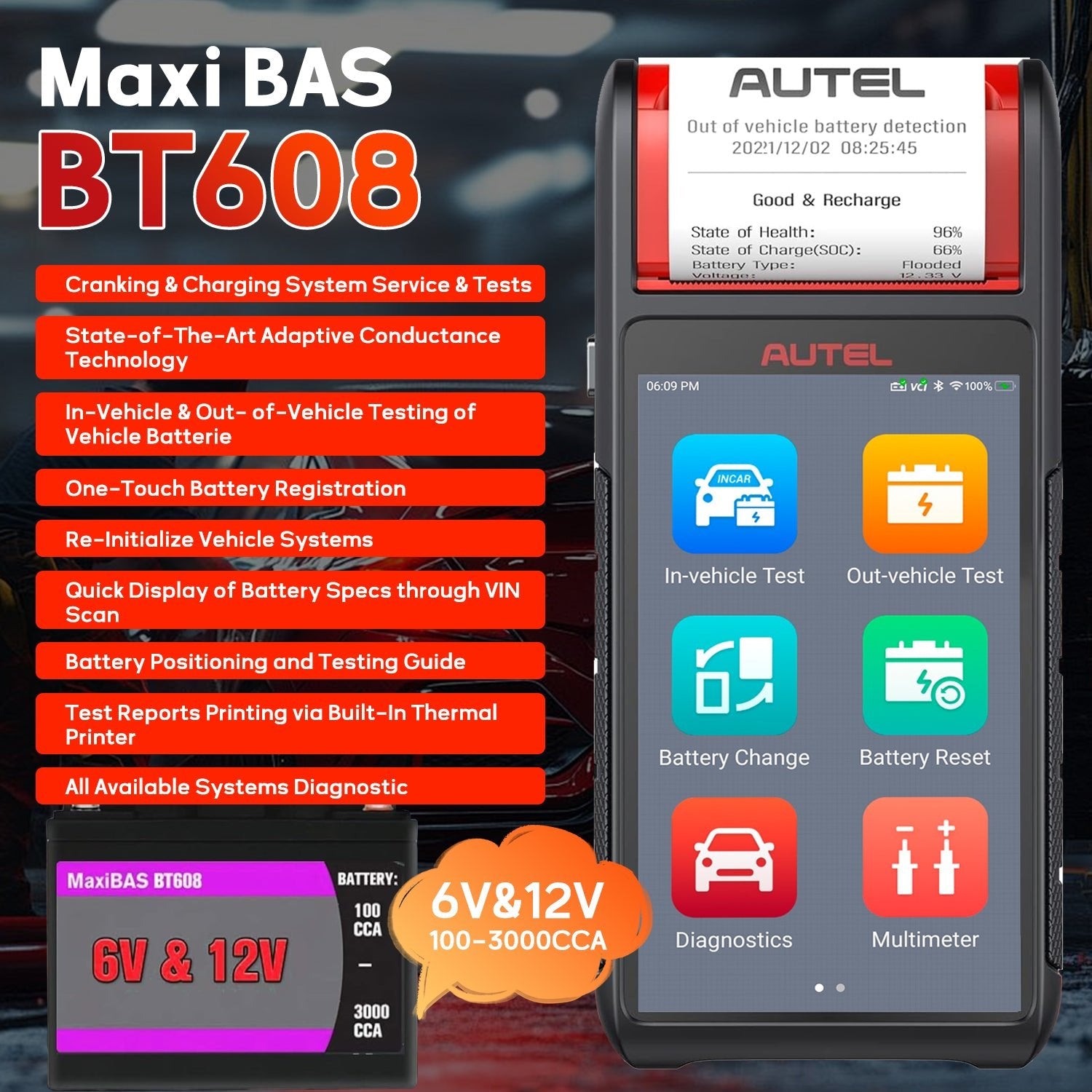

Autel MaxiBAS BT608 Professional Battery & Electrical System Tester
The Autel MaxiBAS BT608 is a professional automotive battery tester designed to help technicians evaluate battery condition, diagnose starting and charging system problems, and perform supported battery service functions.
Powered by Autel's Adaptive Conductance technology, the BT608 supports 6V and 12V battery testing from 100 to 3000 CCA, along with 12V and 24V starting and charging system analysis.
With its built-in thermal printer and included MaxiVCI V200 wireless communication interface, the BT608 combines battery analysis, vehicle communication, and service reporting in one portable battery service platform.
Advanced Battery Testing
Evaluate battery condition using Adaptive Conductance technology and supported battery testing procedures.
Electrical System Analysis
Analyze 12V and 24V starting and charging systems to support electrical fault diagnosis.
Battery Service Functions
Perform supported battery registration and BMS reset procedures on compatible vehicles.
Test 6V & 12V Batteries from 100–3000 CCA

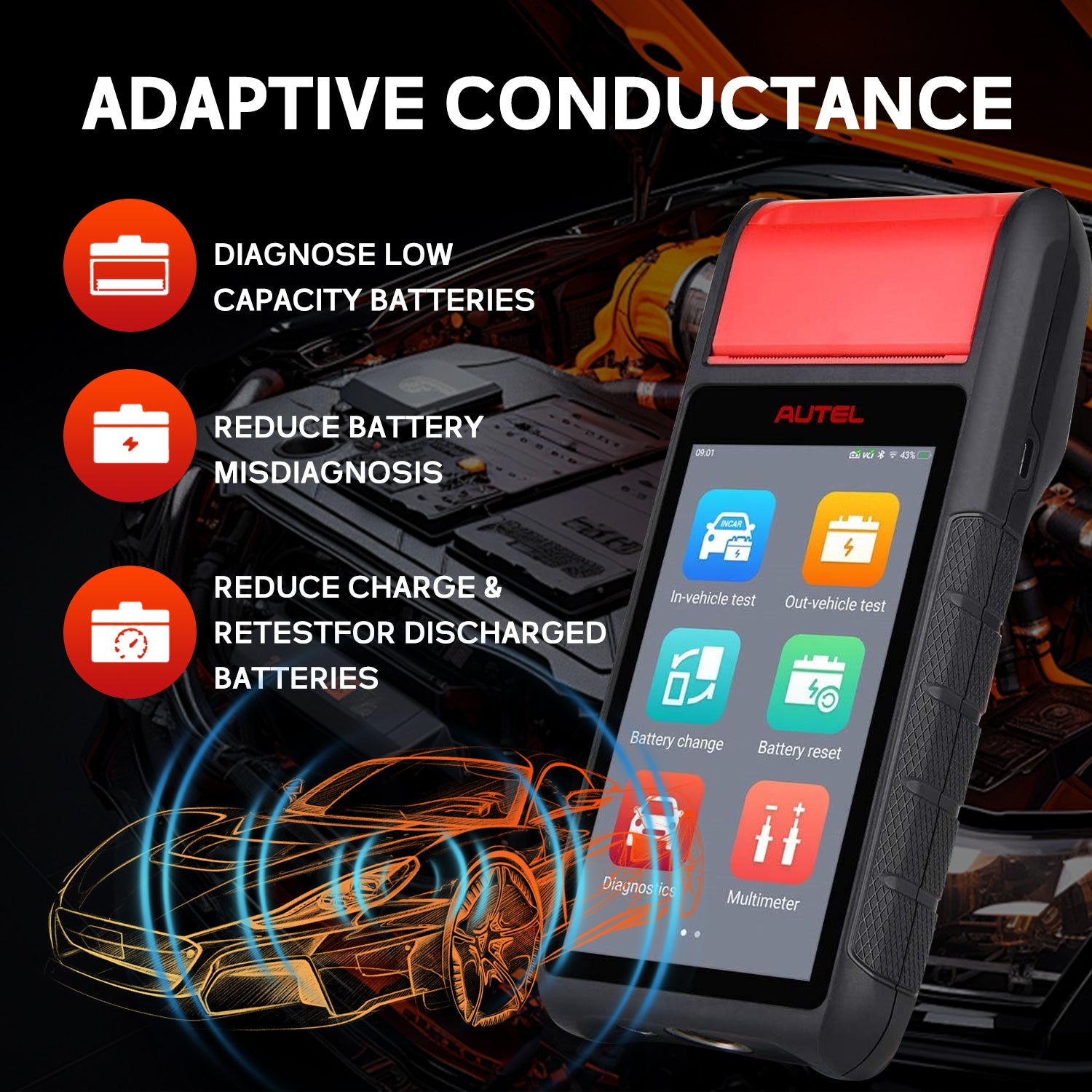

The Autel MaxiBAS BT608 uses Adaptive Conductance technology to evaluate battery condition and help technicians assess a battery's ability to perform under load.
The BT608 supports both in-vehicle and out-of-vehicle battery testing for 6V and 12V batteries rated from 100 to 3000 CCA.

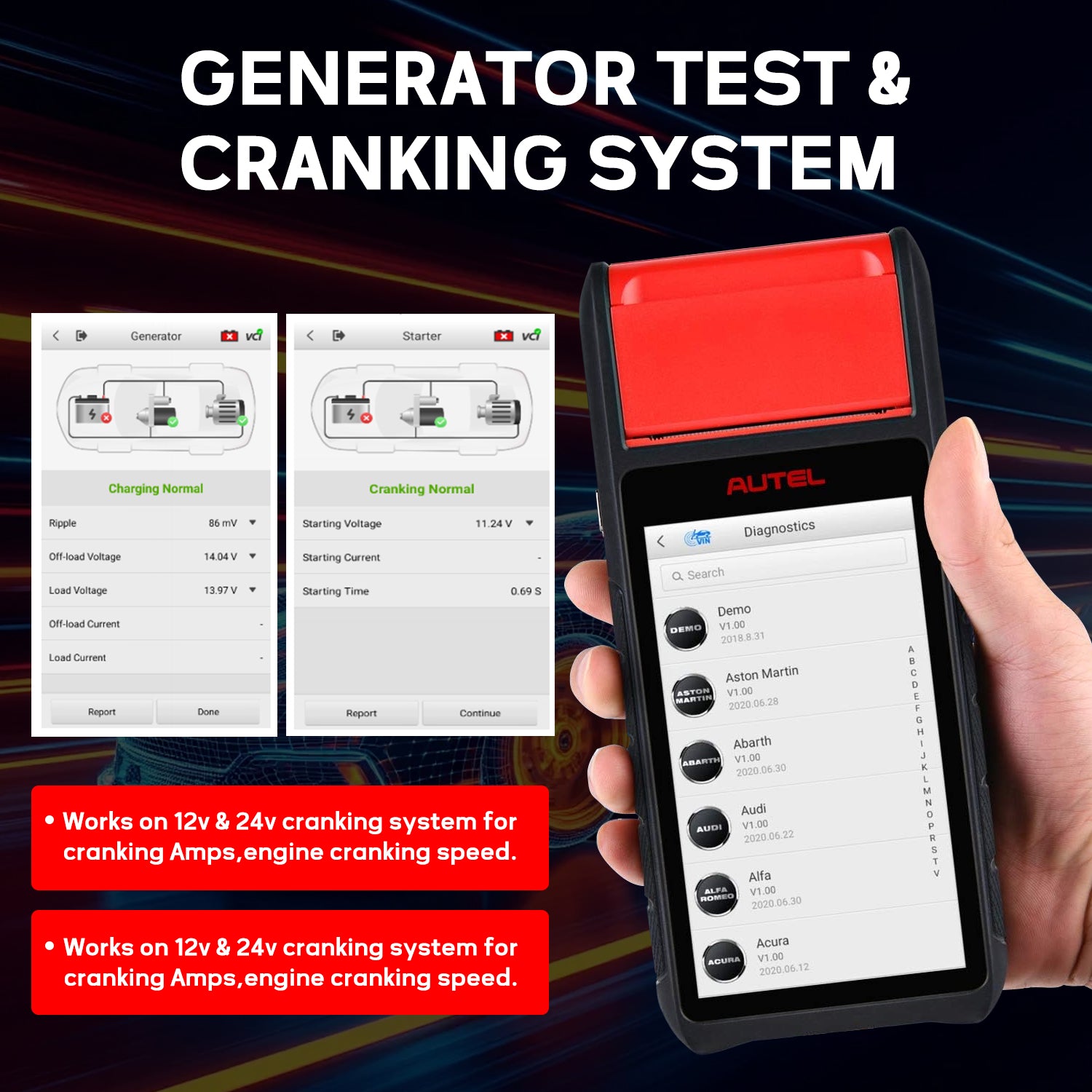

Test 12V & 24V Starting and Charging Systems
Beyond battery testing, the Autel MaxiBAS BT608 can analyze 12V and 24V starting and charging systems to help technicians evaluate the electrical systems responsible for starting the vehicle and maintaining battery charge.
These tests extend the diagnostic process beyond the battery itself, helping technicians investigate whether a starting or charging system issue may be contributing to a vehicle's electrical problem.
Starting System Test
Evaluate the vehicle's starting system as part of the battery and electrical system diagnostic process.
Charging System Test
Analyze charging-system operation to support diagnosis of battery and vehicle electrical concerns.

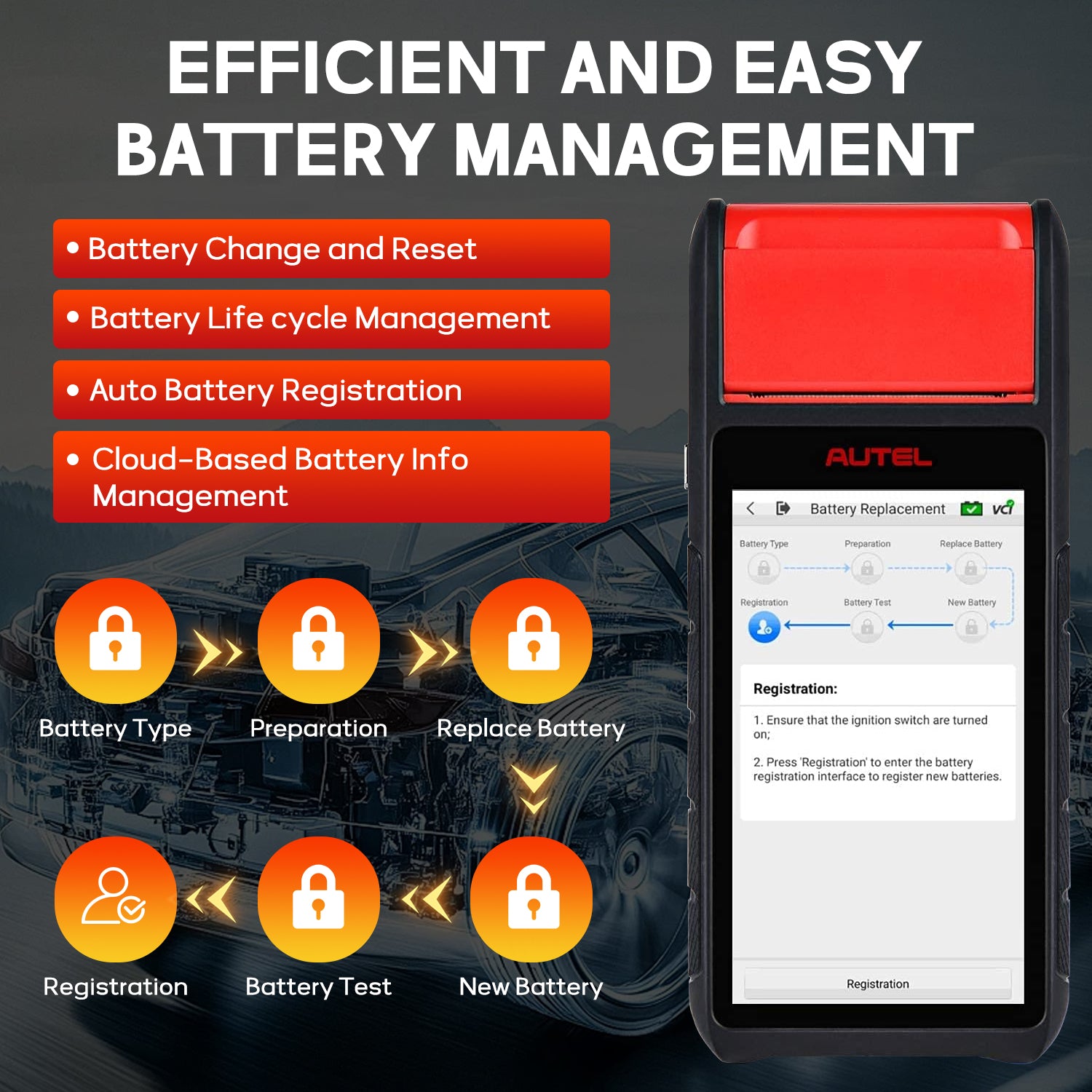

Battery Registration & BMS Reset
The Autel MaxiBAS BT608 extends beyond battery testing by supporting battery service functions on compatible vehicles. After battery replacement, technicians can use the BT608 to perform supported procedures required by the vehicle's battery management system.
Using vehicle communication through the included MaxiVCI V200, the BT608 can access supported battery management functions without requiring a separate battery service tool.
Battery Registration
Register a replacement battery on supported vehicles when battery registration is required by the vehicle's battery management system.
BMS Reset
Perform supported BMS reset procedures after battery replacement or battery service on compatible vehicles.
Vehicle Coverage: Battery registration, BMS reset, and other available service functions vary by vehicle. Confirm year, make, model, engine, and required function before ordering when specific coverage is required.

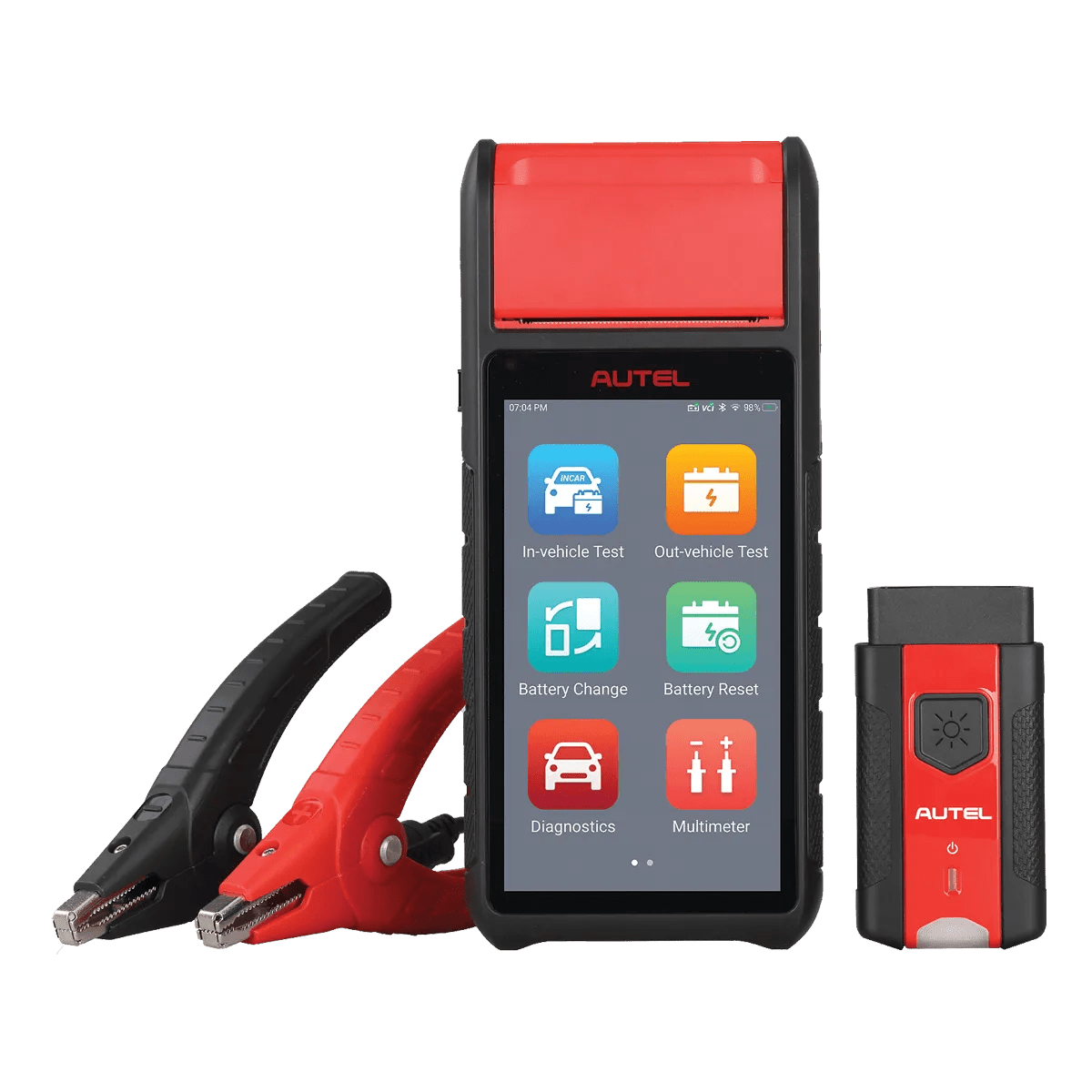

MaxiVCI V200 Included with the Autel BT608
The Autel MaxiBAS BT608 includes the MaxiVCI V200, providing wireless communication between the BT608 tablet and compatible vehicles.
Vehicle communication allows the BT608 to extend beyond standalone battery testing and access supported diagnostic and battery service functions through the vehicle's onboard systems.
Wireless Communication
Connect the BT608 to compatible vehicles through the included MaxiVCI V200 without a communication cable between the tablet and vehicle.
Battery Service Access
Use vehicle communication for supported battery registration, BMS reset, and related battery service procedures.

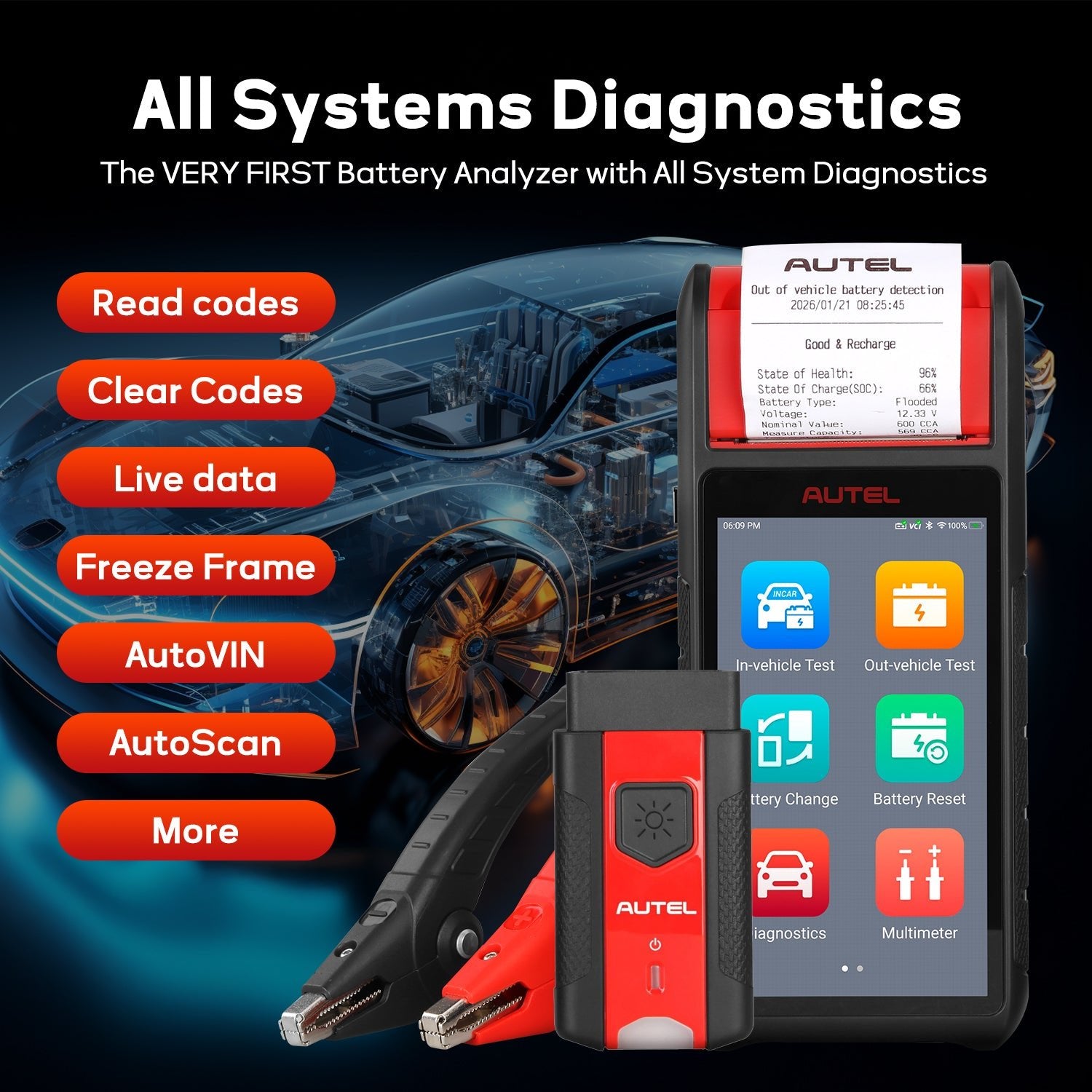

Vehicle Diagnostics
Access supported vehicle diagnostic functions that complement battery and electrical system service.
Important: Diagnostic and service-function availability varies by vehicle. The BT608 is primarily a battery and electrical system service tool and should not be treated as a replacement for a dedicated MaxiSYS full-system diagnostic scanner.

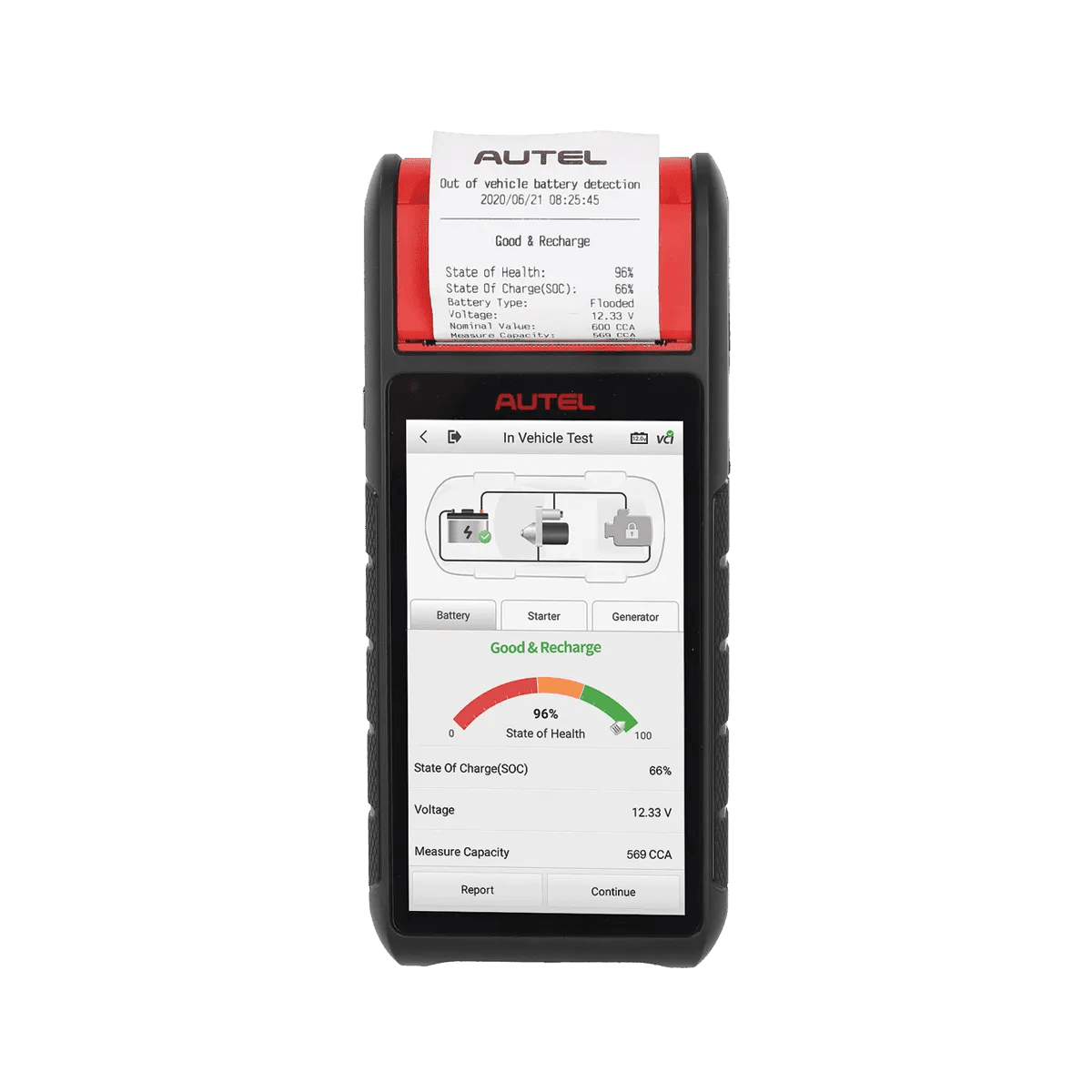

Print Battery & Electrical System Test Results
The Autel MaxiBAS BT608 features a built-in thermal printer, allowing technicians to print supported battery and electrical system test results directly from the tool.
Printed results can provide customers with a physical record of testing and help service professionals document battery and electrical system checks as part of the service process.
Test
Perform the supported battery or electrical system test.
Review
Review the available test results directly on the BT608.
Print supported test results using the built-in thermal printer.
Document
Provide a physical test record for customer or service documentation.
Autel MaxiBAS BT608 for the U.S. & North American Market
This Autel MaxiBAS BT608 is the US / North American Version, combining professional battery and electrical system testing with supported vehicle-connected battery service functions in a single workshop tool.
Built for Battery Service
A strong fit for repair shops, battery service professionals, and technicians who need battery testing, electrical system analysis, battery service functions, and printed test results.
Check Vehicle Coverage
Battery registration, BMS reset, diagnostic functions, and other vehicle-connected capabilities vary by year, make, model, engine, and system.
Need to confirm compatibility? Contact us with the vehicle year, make, model, engine, and required function before ordering.
| Specification | Autel MaxiBAS BT608 |
|---|---|
| BT608 Main Unit | |
| Operating System | Android 9.0 |
| Display | 5.5-inch LCD Touchscreen, 720 × 1280 |
| Storage | 32 GB |
| Wi-Fi | 802.11 a/b/g/n/ac |
| Bluetooth | BT 5.0 + EDR |
| USB | USB 2.0, Type-C |
| Camera | 8 Megapixels |
| Internal Battery | 7.7 V / 2900 mAh |
| Input Voltage | 5 V DC |
| Working Current | < 450 mA at 7.7 V DC |
| CCA Range | 100–3000 A |
| Voltage Measurement Range | 1.5–16 V |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Dimensions | 204 × 90 × 32 mm (8.03 × 3.54 × 1.25 in) |
| Weight | 510 g (1.12 lb) |
| Battery & Electrical System Testing | |
| Battery Testing | 6 V / 12 V |
| Starting & Charging System Testing | 12 V / 24 V |
| Battery Testing Technology | Adaptive Conductance |
| Battery Types | Flooded / AGM / AGM Spiral / EFB / GEL |
| Battery Test Location | In-Vehicle / Out-of-Vehicle |
| Battery Service Functions | Battery Registration / BMS Reset (vehicle-dependent) |
| Built-In Printer | Thermal Printer |
| Included MaxiVCI V200 | |
| Vehicle Communication Interface | MaxiVCI V200 |
| Communication | BLE + EDR / USB 2.0 |
| Wireless Frequency | 2.4 GHz |
| Vehicle Power | 12 V / 24 V via Vehicle DLC |
| Supply Current | 150 mA @ 12 V DC |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -40°C to 80°C (-40°F to 176°F) |
| Dimensions | 89.89 × 46.78 × 21 mm |
| Weight | 70.7 g (0.156 lb) |
| Built-In Battery | 3.7 V Lithium Battery |
Specifications are based on the official Autel MaxiBAS BT608 User Manual. Vehicle-dependent functions and coverage may vary. Optional multimeter accessories are sold separately.

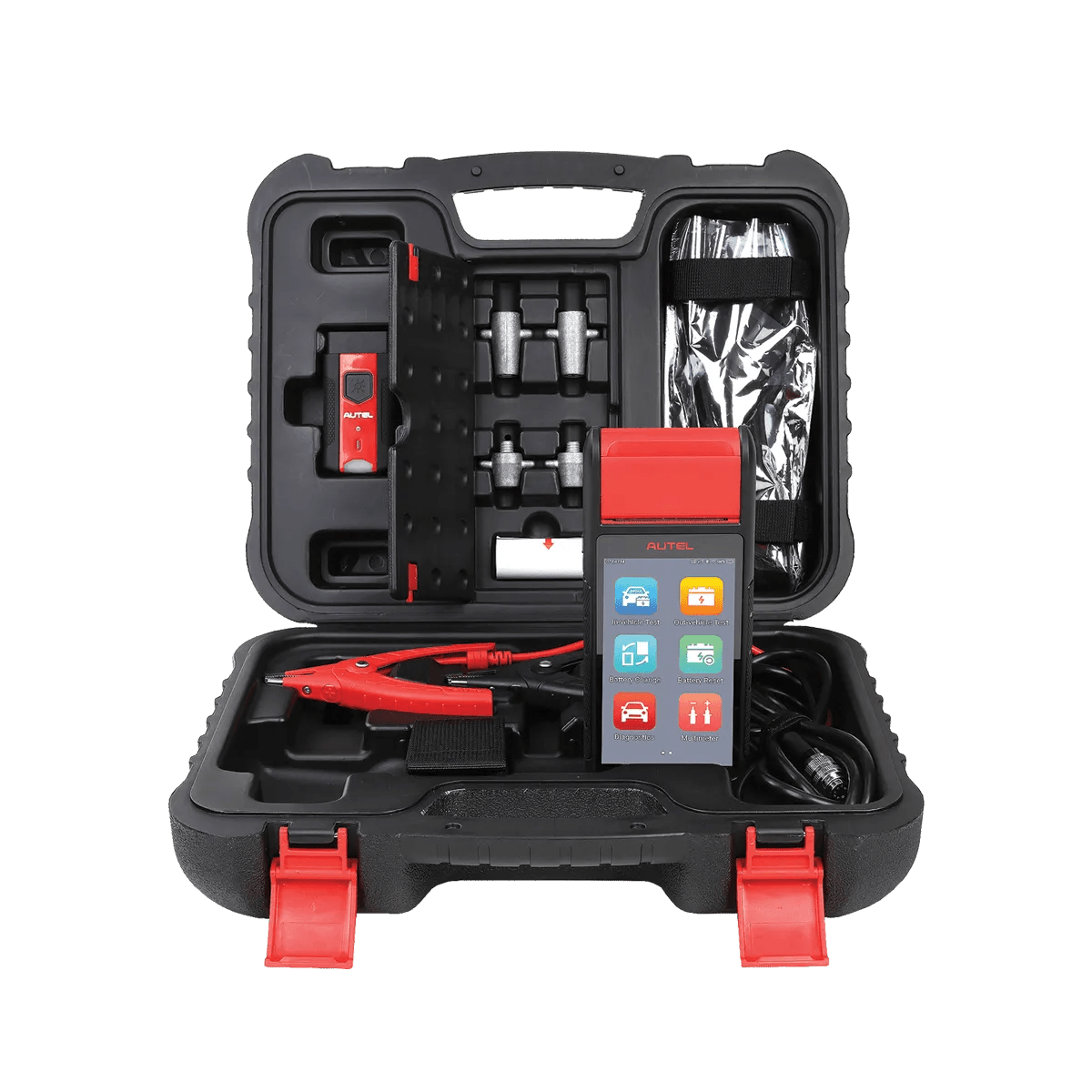

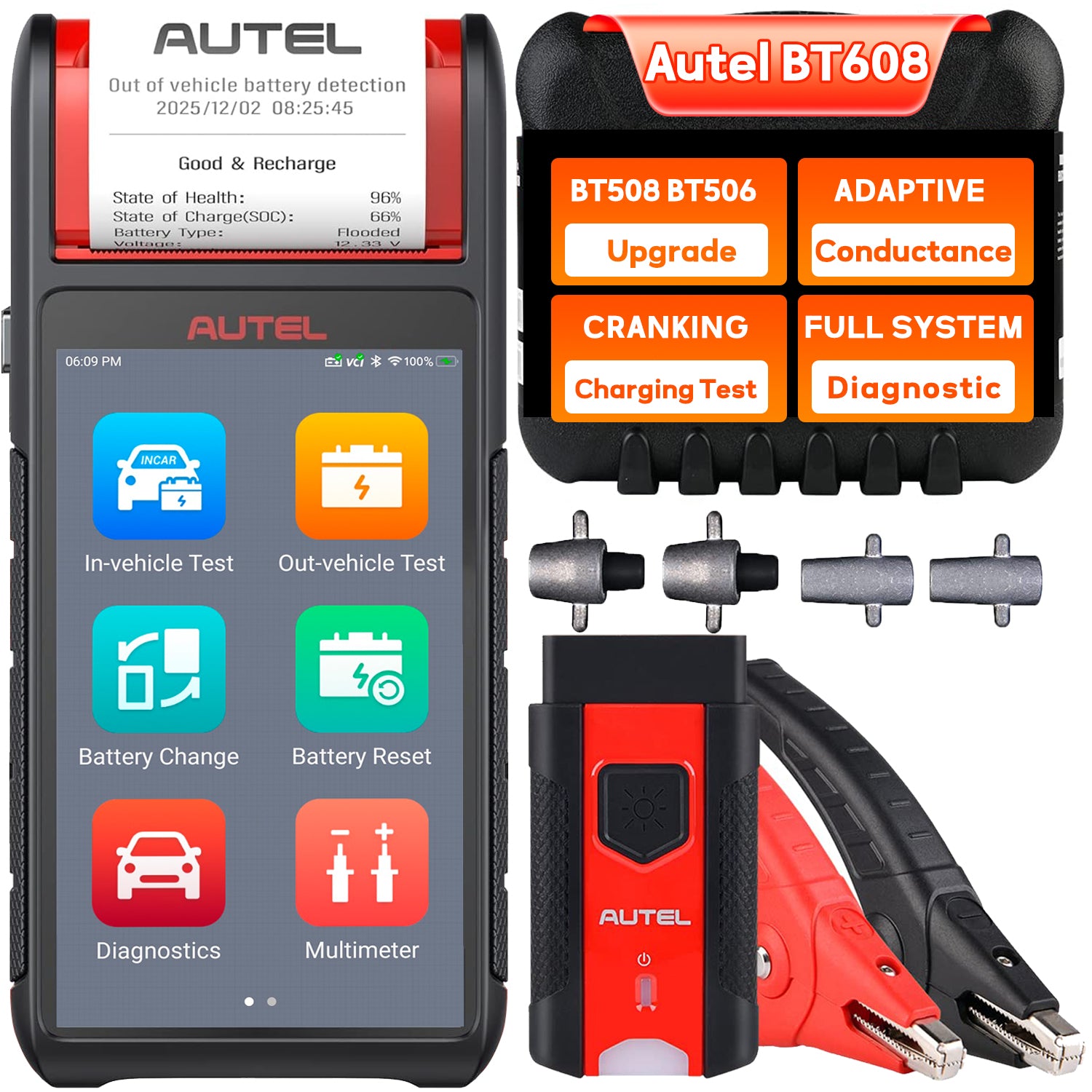

Main Package
- MaxiBAS BT608 Main Unit ×1
- MaxiVCI V200 Series ×1
- Battery Clamp Cable ×1
- Paper Roll ×2
- Power Adapter ×1
- USB Cable ×1
- Battery Side Post Terminal TYPE T ×2
- Battery Side Post Terminal TYPE S ×2
BTAK and optional multimeter accessories are sold separately and are not included in the standard Autel MaxiBAS BT608 package.
Autel BT508 vs. BT608 vs. BT609
Choose based on battery testing capacity, diagnostic capabilities, reporting needs, and workshop workflow—not simply model hierarchy. The BT608 stands out for its built-in thermal printer, while the BT609 offers a larger display and broader maintenance reset capabilities.
| Key Difference | BT508 | BT608 | BT609 |
|---|---|---|---|
| Product Format | App-Based Battery & Electrical Tester | Standalone Battery Service Tablet | Advanced Battery Service Tablet |
| Display | App-Based Interface | 5.5-Inch Touchscreen | 7-Inch Touchscreen |
| Battery Testing | 6V / 12V | 6V / 12V | 6V / 12V |
| CCA Range | 100–2000 CCA | 100–3000 CCA | 100–3000 CCA |
| Starting & Charging Systems | 12V / 24V | 12V / 24V | 12V / 24V |
| Battery Types | Flooded, AGM, AGM Spiral, EFB, GEL | Flooded, AGM, AGM Spiral, EFB, GEL | Flooded, AGM, AGM Spiral, EFB, GEL |
| Battery Registration | Supported Vehicles | Supported Vehicles | Supported Vehicles |
| All-System AutoScan | Limited to One Vehicle Brand* | Supported* | Supported* |
| All Maintenance Resets | Not Included | Not Included | Included* |
| Built-In Thermal Printer | Not Included | Included | Not Included |
| Email Test Reports | Supported | Supported | Supported |
| Temperature Compensation | Not Included | Included | Included |
| Multimeter / Amp Clamp | Not Supported | Optional Accessories | Optional Accessories |
| Best Fit | Technicians needing app-based battery testing and basic electrical analysis. | Repair shops needing standalone battery testing, supported battery service, and printed test results. | Workshops prioritizing a larger screen, all-system diagnostics, and broader maintenance service functions. |
| Main Buying Consideration | App-based workflow with a lower battery testing range. | Dedicated battery service workflow with a built-in printer. | Larger display and additional maintenance capabilities, but no built-in printer. |
Selection Guidance:
Choose the BT508 if you primarily need app-based battery testing and electrical system analysis without a dedicated touchscreen tablet.
Choose the BT608 if you need 100–3000 CCA battery testing, a standalone touchscreen, supported battery registration, and a built-in thermal printer for physical test documentation.
Choose the BT609 if you prefer a larger 7-inch touchscreen and need broader maintenance service functions, without requiring an integrated thermal printer.
Vehicle Coverage & Software Note: Diagnostic functions, battery registration, maintenance resets, and vehicle coverage vary by model, vehicle, software version, and applicable authorization. BT508 diagnostic coverage may require additional vehicle-brand software. Optional multimeter and amp clamp accessories for BT608 and BT609 are sold separately. Confirm specific functions and current software entitlements before purchasing.
