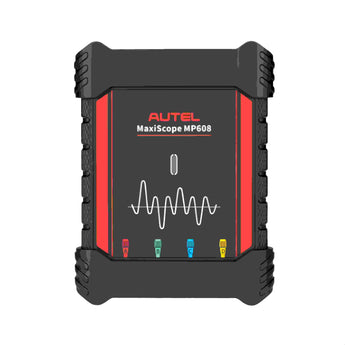

Autel MaxiScope MP608 Oscilloscope Precision 4-channel Oscilloscope
Autel MaxiScope MP608 is a professional 4-channel automotive oscilloscope that transforms a Windows PC or compatible MaxiSYS tablet into a powerful waveform diagnostic platform.
Featuring 12-bit resolution and ±1% measurement accuracy, the MP608 delivers precise signal capture for advanced electrical, electronic, and network diagnostics.
Designed to simplify complex troubleshooting, it offers advanced trigger actions for intermittent fault detection, customizable math channels, serial bus decoding, and guided automotive test procedures.
Compatible with the MaxiSYS MS906 MAX, MS906PRO-TS, MS909 S2, MS908CV II, MS909CV, and Windows PCs, the MP608 provides technicians with a complete solution for analyzing vehicle signals, identifying root causes faster, and improving diagnostic confidence.
Covered by a one-year limited warranty.
- 4-Channel Automotive Oscilloscope for advanced vehicle electrical and electronic diagnostics.
- Compatible with MS906 MAX, MS906PRO2-TS, MS909S2, MS908CV II, MS909CV, and Windows PC.
- 12-Bit Resolution with ±1% Measurement Accuracy for precise waveform capture and analysis.
- Advanced Trigger Actions automatically capture intermittent and hard-to-reproduce faults.
- Custom Math Channels simplify complex waveform calculations and signal analysis.
- Automatic Probe Configuration reduces setup time and minimizes configuration errors.
- Built-In Automotive Test Library with guided procedures, reference waveforms, and connection diagrams.
- Serial Bus Decoding for multiple protocols. including CAN, CAN FD, LIN, FlexRay, UART, and I²C.
- Complete Diagnostic Kit Included with test leads, ignition pickup, probes, attenuators, carrying case, and accessories.
- Covered by one-year Limited Warranty
Professional 4-Channel Automotive Oscilloscope
- The Autel MaxiScope MP608 is a professional-grade 4-channel automotive oscilloscope engineered for advanced vehicle electrical and electronic diagnostics. By capturing and displaying four independent signals simultaneously, technicians can compare waveform relationships across multiple circuits, making complex fault diagnosis faster, more accurate, and significantly more efficient than with conventional single-channel testing.
- Simply connect the MP608 to a compatible Autel MaxiSYS tablet or Windows PC to transform your existing diagnostic device into a powerful waveform analysis platform. Fully integrated with the MaxiSYS software, it provides professional oscilloscope functionality without requiring a separate standalone display, allowing technicians to perform advanced electrical diagnostics within a familiar operating environment.
- Designed for today's increasingly sophisticated vehicles, the MP608 is ideal for diagnosing sensors, actuators, ignition systems, charging systems, electronic control modules, and communication networks. Whether performing routine electrical testing or troubleshooting difficult intermittent faults, it delivers the precision and versatility required by modern repair facilities.
Exceptional Waveform Accuracy
- Unlike traditional 8-bit oscilloscopes, the MP608 features 12-bit vertical resolution, providing dramatically higher waveform detail and improved signal clarity. The increased resolution allows technicians to identify subtle voltage fluctuations, signal distortions, and intermittent electrical problems that lower-resolution tools may fail to capture.
- With ±1% measurement accuracy, every waveform delivers reliable diagnostic data for professional troubleshooting. From crankshaft and camshaft sensors to ignition coils, injectors, charging systems, and various electronic control circuits, the MP608 provides the precision necessary for confident repair decisions.
- Its high-speed signal acquisition technology captures rapidly changing electrical events with exceptional stability, allowing technicians to analyze ignition patterns, PWM signals, injector pulses, charging waveforms, and many other critical automotive signals in real time.
Smart Features for Faster Diagnostics
- The Autel MP608 is equipped with advanced trigger functions that automatically capture intermittent and difficult-to-reproduce faults. Instead of constantly monitoring live waveforms, technicians can define trigger conditions and allow the oscilloscope to record abnormal events automatically, greatly reducing diagnostic time.
- Customizable math channels simplify advanced waveform analysis by performing mathematical calculations between multiple signals. This makes it easier to compare waveform relationships, calculate voltage differences, and perform more in-depth electrical analysis during complex troubleshooting.
- Automatic probe configuration further improves efficiency by recognizing connected probes and applying the appropriate settings automatically. This minimizes setup time, reduces configuration errors, and allows technicians to focus on vehicle diagnostics rather than equipment adjustments.
Comprehensive Electrical & Network Analysis
- The Autel MP608 supports advanced diagnostics across virtually every major automotive electrical system, including sensors, actuators, ignition systems, charging systems, fuel injection systems, starter circuits, electronic control modules, and many other electronic components found in modern vehicles.
- Built-in serial bus decoding supports CAN, CAN FD, LIN, FlexRay, UART, and I²C protocols, allowing technicians to analyze vehicle communication networks, locate network failures, and identify communication issues quickly without requiring additional diagnostic equipment.
- Whether servicing gasoline, diesel, hybrid, or electric vehicles, the MP608 provides the flexibility and performance required for today's increasingly complex automotive electrical systems, making it an essential diagnostic tool for professional workshops.
Guided Testing & Broad Compatibility
- An integrated Automotive Test Library provides guided test procedures, reference waveforms, connection diagrams, and step-by-step instructions to help technicians perform oscilloscope testing more accurately and efficiently. Even users with limited oscilloscope experience can confidently perform advanced electrical diagnostics.
- The MP608 also includes a complete professional accessory kit featuring test leads, probes, ignition pickups, attenuators, adapters, clips, and a durable carrying case, allowing technicians to begin waveform testing immediately without purchasing additional accessories.
- Compatible with MaxiSYS MS906 MAX, MS906PRO-TS, MS908, MS909, MS909 S2, MS908CV II, MS909CV, and Windows PCs, the MP608 offers a flexible solution for expanding the diagnostic capabilities of existing Autel platforms while protecting your investment in diagnostic equipment.
Professional Reliability & Warranty
- Engineered specifically for professional technicians, the MaxiScope MP608 combines precision hardware with intelligent software features to simplify complex troubleshooting, reduce diagnostic time, and improve repair accuracy. It is an ideal solution for repair shops seeking advanced waveform analysis and dependable electrical diagnostics.
- Every MaxiScope MP608 is backed by a 1-Year Limited Warranty, providing dependable product quality, reliable technical support, and long-term confidence for professionals who rely on accurate diagnostic equipment every day.
 |
Autel MaxiScope MP608 Oscilloscope User Manual US-Ver | Download |
|
Autel MaxiScope MP608 Oscilloscope Quick Reference Guide US-Ver | Download |
| Name | list of items |
|---|---|
Main Package
|
 |
| Item | Autel MP408 | Autel MP608 |
|---|---|---|
| Oscilloscope Hardware | Basically the same | Basically the same |
| 12-bit | √ | √ |
| 20MHz | √ | √ |
| 4 Channel | √ | √ |
| Trigger | Standard | Advanced Trigger |
| Test Library | × | Newly Added |
| Auto Probe | × | Newly Added |
| CAN FD | × | Newly Added |
| Guided Test | × | Newly Added |
| Reference Waveform | Basic | Greatly Expanded |
| Accessories | Standard Kit | More Abundant |
| Windows Support | Available | More Comprehensive |
