Autel MaxiSYS MS909 | US Version
$2,999.00
/
Sold out
New

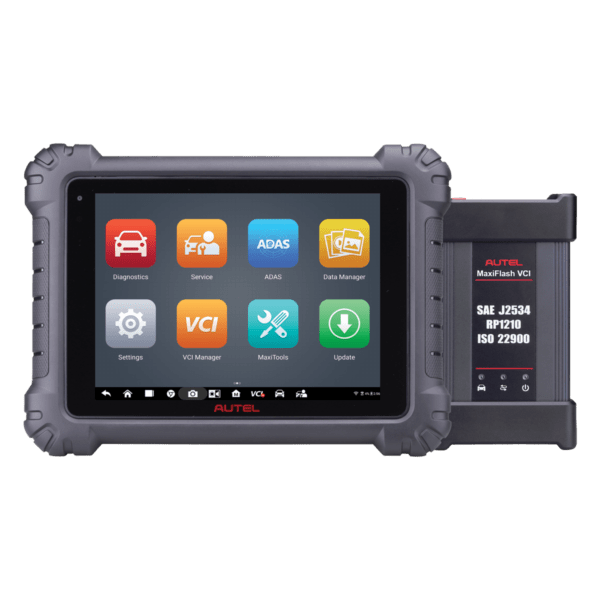

The Autel MaxiSYS MS909 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), 128GB memory and features an advanced VCI supporting latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The MS909 features topology module mapping capability for supported vehicles. The MS909 features a rechargeable Lithium battery proving 8 hours of continues use, and front and rear cameras.
Autel MaxiSYS MS909 – Advanced Diagnostic Tablet (US Ver)
The Autel MaxiSYS MS909 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), 128GB memory and features an advanced VCI supporting latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The MS909 features topology module mapping capability for supported vehicles. The MS909 features a rechargeable Lithium battery proving 8 hours of continues use, and front and rear cameras.
- 9.7’’ Touchscreen (1536 x 2048) / Android 7.0
- 2.3GHz+1.7GHz Octa-core Processor / 128GB Memory
- New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
- Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
- License Plate Reader
- ScanVIN: Barcode or Text Recognition with Camera
- Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account
- Includes Cables, MaxiFlash VCI, Carrying Case, 1YR Warranty & Software Subscription
- Enhanced Diagnostic Reports: PreSCAN & PostSCAN
- 15000mAh – 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera
Powerful OE-Level Diagnostics
- The MaxiSYS MS909 delivers comprehensive OE-level diagnostics for a wide range of American, Asian, and European vehicles. It supports full-system scanning, code reading and clearing, live data streaming, active tests, special functions, coding, and adaptations, making it an all-in-one solution for professional repair shops.
- Powered by an octa-core processor with 128GB of internal storage, the MS909 ensures fast system response, smooth multitasking, and ample space for diagnostic reports, software updates, and vehicle data. Its high-performance hardware allows technicians to work more efficiently without interruptions.

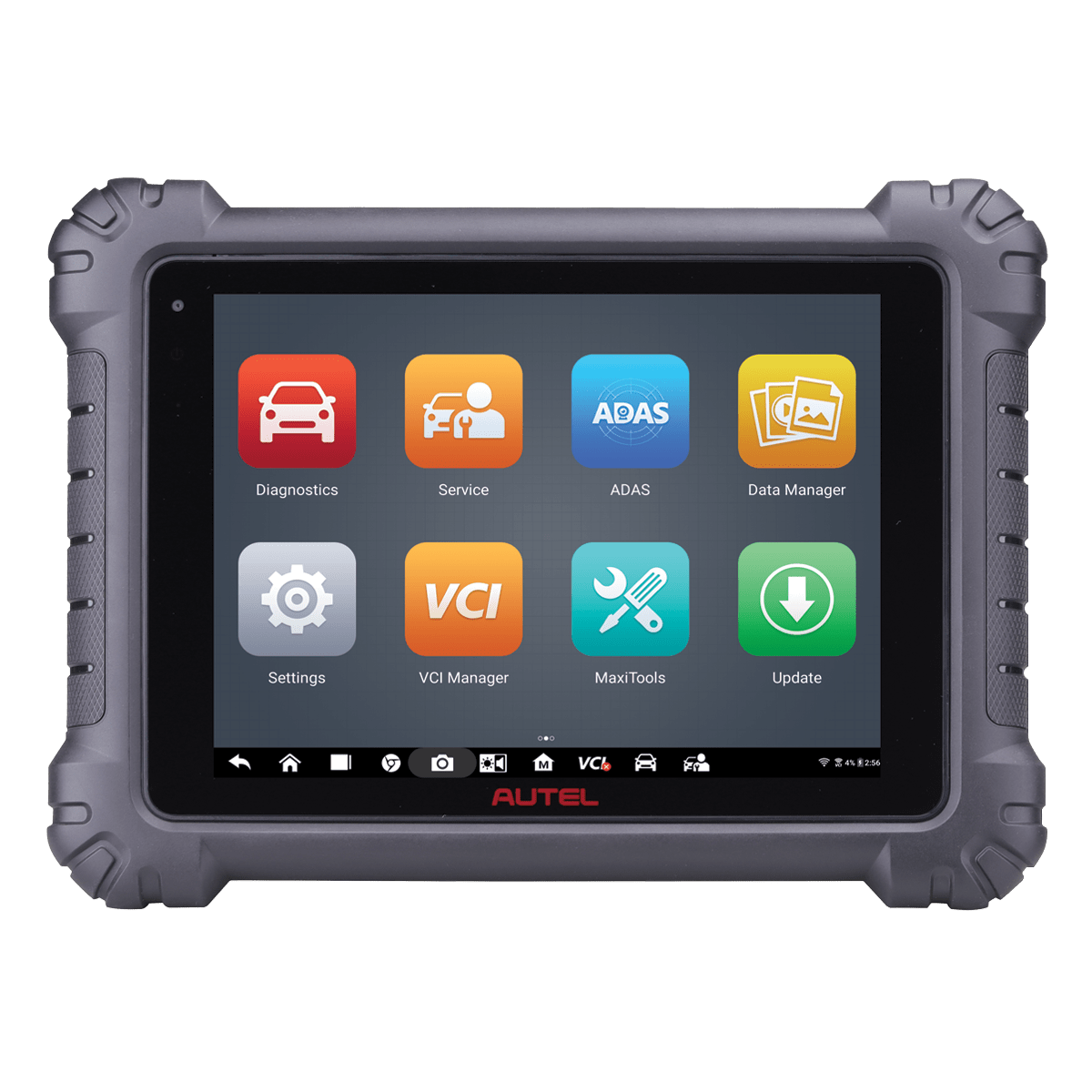

- The 9.7-inch high-resolution touchscreen provides a bright and responsive user experience, making it easy to navigate through complex diagnostic menus, view live data graphs, and analyze vehicle information clearly in any workshop environment.
Advanced Vehicle Communication
- The MS909 is equipped with the latest MaxiFlash VCI, supporting modern communication protocols including DoIP, D-PDU, CAN FD, and Mega CAN. These advanced protocols enable faster communication with newer vehicle platforms while ensuring compatibility with the latest automotive technologies.
- Its high-speed wireless VCI connection allows technicians to perform diagnostics without being restricted by cables, providing greater flexibility when working around the vehicle and improving workflow efficiency.
- With support for modern communication standards, the MS909 is fully prepared to diagnose today's increasingly complex vehicle electronic systems while offering excellent future-proof compatibility for newer vehicle models.
Intelligent Topology Mapping

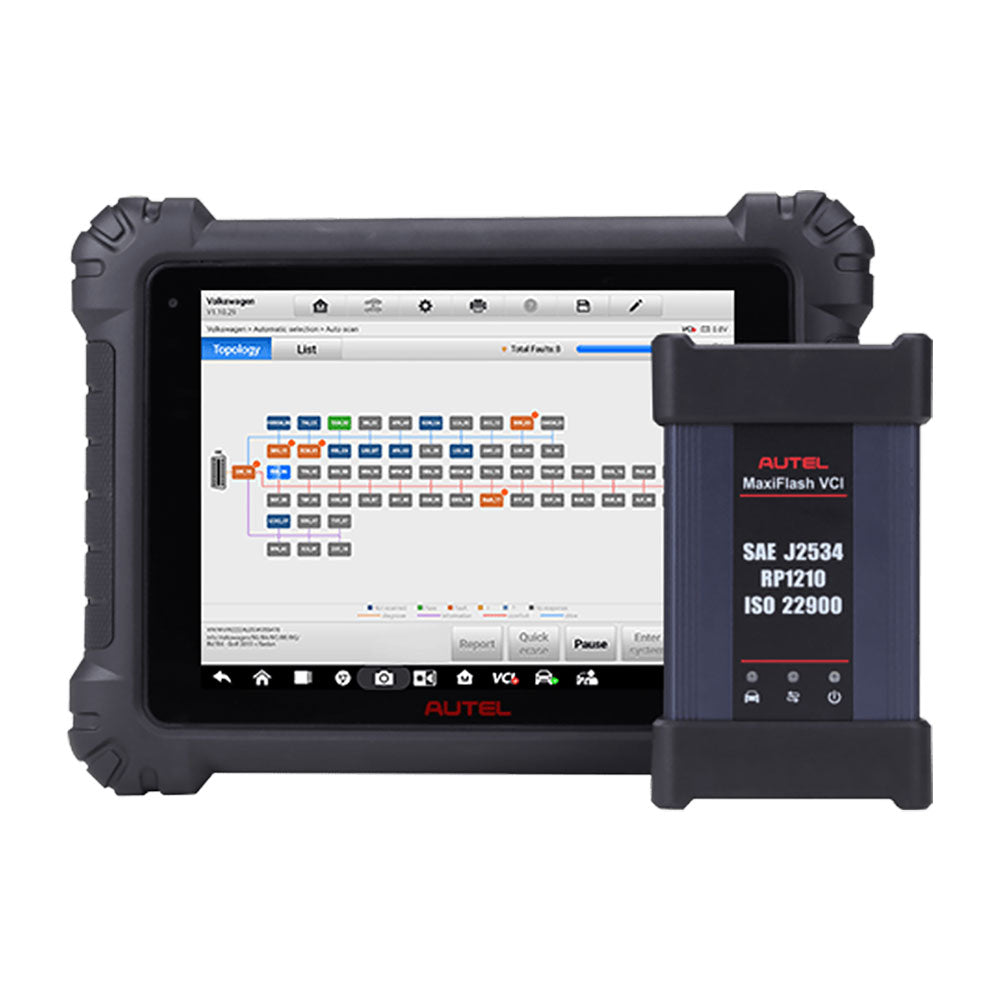

- The MS909 features intelligent topology module mapping, allowing technicians to view all vehicle control modules in a clear color-coded network diagram. This visual layout makes it easy to identify module communication status and quickly locate system faults.
- Instead of checking each control unit individually, technicians can instantly determine which modules are online, offline, or experiencing communication issues, significantly reducing diagnostic time and simplifying complex electrical troubleshooting.
- This intelligent topology function is especially valuable when diagnosing network-related faults, helping repair professionals quickly identify the root cause of CAN communication problems and improve repair efficiency.
Professional Diagnostic Features
- Beyond standard diagnostics, the MS909 offers a complete set of advanced service capabilities, including active tests, bi-directional controls, ECU coding (on supported vehicles), adaptations, resets, and a wide range of maintenance functions to support professional repair work.
- The built-in ScanVIN function automatically identifies vehicles by scanning the VIN barcode or recognizing printed VIN numbers with the integrated camera, allowing technicians to begin diagnostics quickly while minimizing manual data entry.
- Enhanced PreSCAN and PostSCAN reporting automatically records vehicle health before and after repairs, generating professional diagnostic reports that improve service documentation and provide clear evidence of completed repairs for customers.
Built for Daily Workshop Use
- Designed for demanding workshop environments, the MS909 features a durable rugged housing, a large rechargeable battery that provides up to 8 hours of continuous operation, and high-quality front and rear cameras for documentation and VIN recognition.

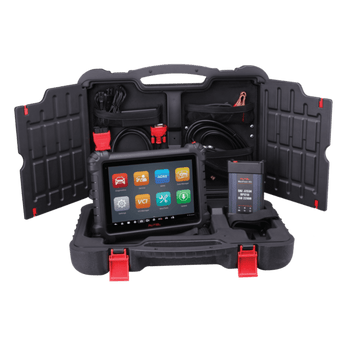

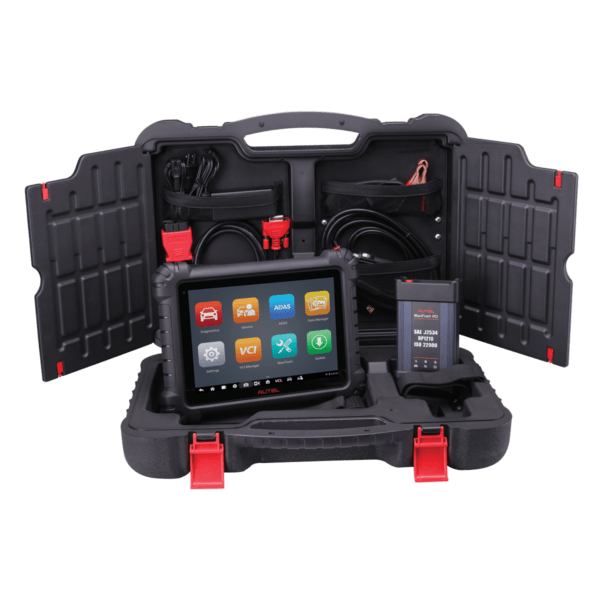

- The complete package includes the MaxiFlash VCI, diagnostic cables, carrying case, and one year of software updates and warranty, providing everything technicians need to begin professional diagnostics immediately without purchasing additional accessories.
- Reliable hardware, fast performance, and professional-grade construction make the MS909 an excellent diagnostic platform for independent repair shops, dealerships, and advanced automotive technicians.
Wide Compatibility & Future-Ready Platform
- The MS909 supports thousands of vehicle models from major manufacturers worldwide and is continuously updated to maintain compatibility with newly released vehicles and evolving automotive technologies. Regular software updates ensure technicians always have access to the latest diagnostic coverage and functions.
- With support for FCA Secure Gateway access (through an authorized AutoAuth account), modern communication protocols, intelligent topology mapping, and advanced diagnostic capabilities, the MaxiSYS MS909 is a powerful long-term investment for professionals seeking accurate diagnostics, improved efficiency, and dependable performance across virtually every repair scenario.
| Name | Parameters |
|---|---|
| Model | AUTEL MAXISYS MS909 |
| Operating System | Android 7.0 |
| Processor | Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen |
| Connectivity | WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) |
| BT v.2.1 + EDR | |
| GPS | |
| USB 2.0 (TWO USB HOST Type A, ONE USB mini device) | |
| HDMI 2.0 | |
| SD Card (Support up to 256GB) | |
| Camera | Rear: 16 Megapixel, Autofocus with Flashlight |
| Front: 5.0 Megapixel | |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone |
| Dual Speakers | |
| 3-Band 3.5 mm stereo/standard headset jac | |
| Power and Battery | 15000mAH 3.8V lithium-polymer battery |
| Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C | |
| Input Voltage | 12V/3A Adapter |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions(W x H x D) | 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67") |
| Weight | 1.66kg (3.66 lb.) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
 |
Autel MaxiSYS MS909 User Manual US-Ver | Download |
|
How To: Upgrade Tablet To Download EV Software US-Ver | Download |
|
Autel MaxiSYS MS909 Sales Flyer US-Ver | Download |
|
Total Care Program Flyer US-Ver | Download |
| Name | list of items |
|---|---|
Main Package
|
 |
| Item | Autel MaxiSys MS909S2 | Autel MaxiSYS MS909 |
|---|---|---|
| Price | $3,799 | $2,799 |
| Processor | Octa-core processor | Samsung Exynos 8895V octa-core Processor |
| Screen | 11-inch | 9.7-inch |
| Resolution | 2176 x 1600 | 1536 x 2048 |
| Battery | 15000 mAh | 15000 mAh |
| Camera | Rear: 16 Megapixel | Rear: 16 Megapixel |
| Front: 16 Megapixe | Front: 5.0 Megapixe | |
| Memory | 12 GB RAM & 256 GB | 4 GB RAM & 128 GB |
| Connectivity | Wi-Fi x 2 (802.11 a/b/g/n/ac/ax 2x2 MIMO) | WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) |
| BT V5.2 + EDR | BT v.2.1 + EDR | |
| GPS | GPS | |
| USB 2.0 (Two USB host Type A) | USB 2.0 (TWO USB HOST Type A, ONE USB mini device) | |
| USB Type C (used to charge the tablet or connect to a PC for data transfer) | HDMI 2.0 | |
| HDMI 2.0 | SD Card (Support up to 256GB) | |
| SD Card (support up to 256 GB) | ||
| VCI | MaxiFlash VCI2 | MaxiFlash VCI |
| Weight | 1656.5 g (3.65 lbs.) | 1.66 kg (3.66 lbs.) |
| Operating System | Android 13 | Android 7.0 |
| vehicle System Support | All Systems | All Systems |
| Read and Clear Codes | ✔ | ✔ |
| Live Data | ✔ | ✔ |
| Freeze Frame | ✔ | ✔ |
| I/M Readiness | ✔ | ✔ |
| Active Test | ✔ | ✔ |
| ECU Coding | ✔ | ✔ |
| ECU Programming | ✔ | ✔ |
| AI Assistant | ✔ | ✘ |
| Digital Vehicle Inspection | ✔ | ✘ |
| Live Data Fusion | ✔ | ✘ |
| Reference Value section | ✔ | ✘ |
| Topology | 3 | 2 |
| Service Fuctions | 38+ | 38+ |
| vehicle Coverage | 150+ brands | 150+ brands |
| Language | Supports languages | Supports languages |
| other than Asia Pacific | other than Asia Pacific | |
| Security Gateway | ✔ | ✔ |
| DOIP | ✔ | ✔ |
| CAN FD | ✔ | ✔ |
| Update | 1 Year Free | 1 Year Free |
