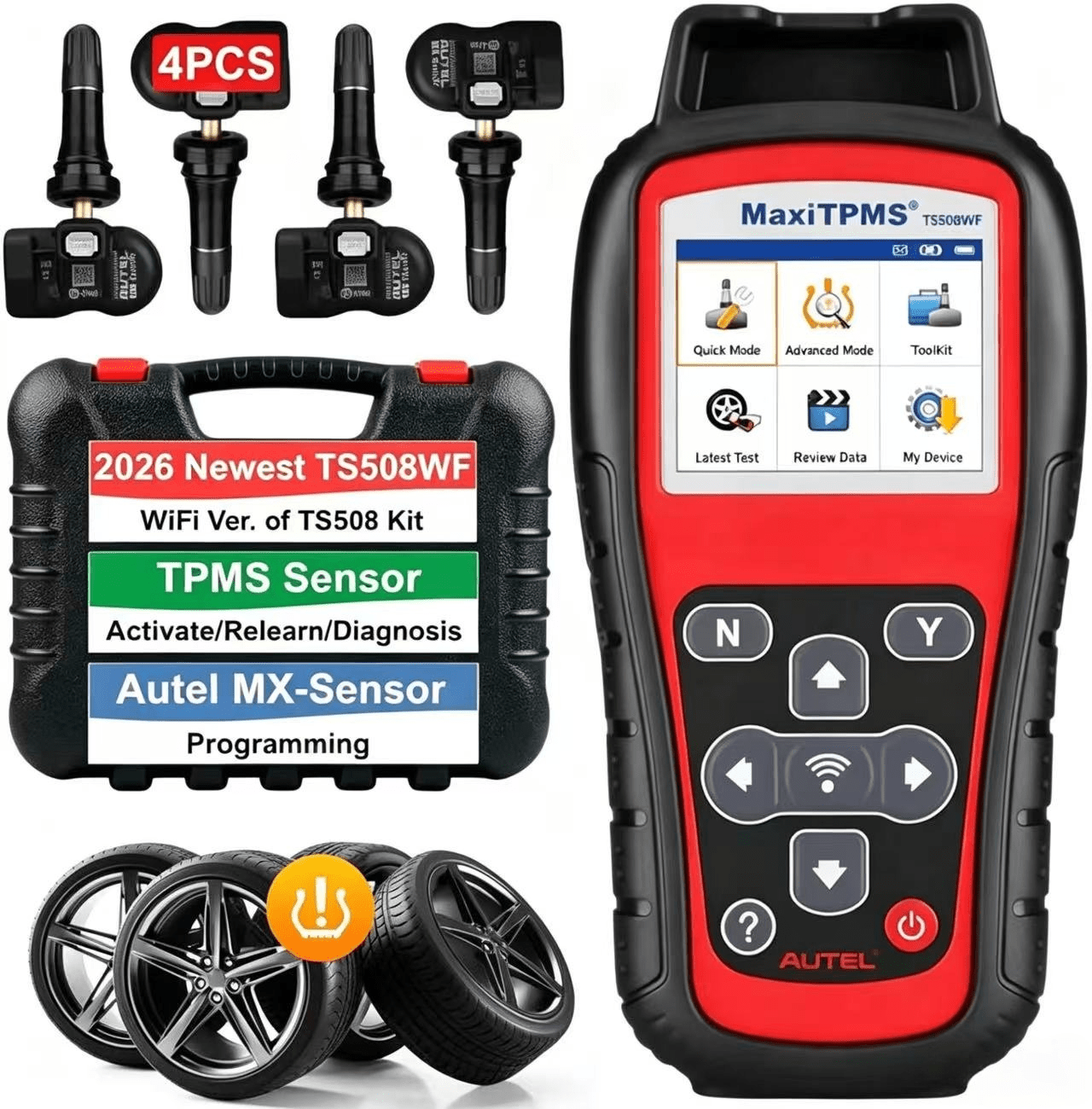

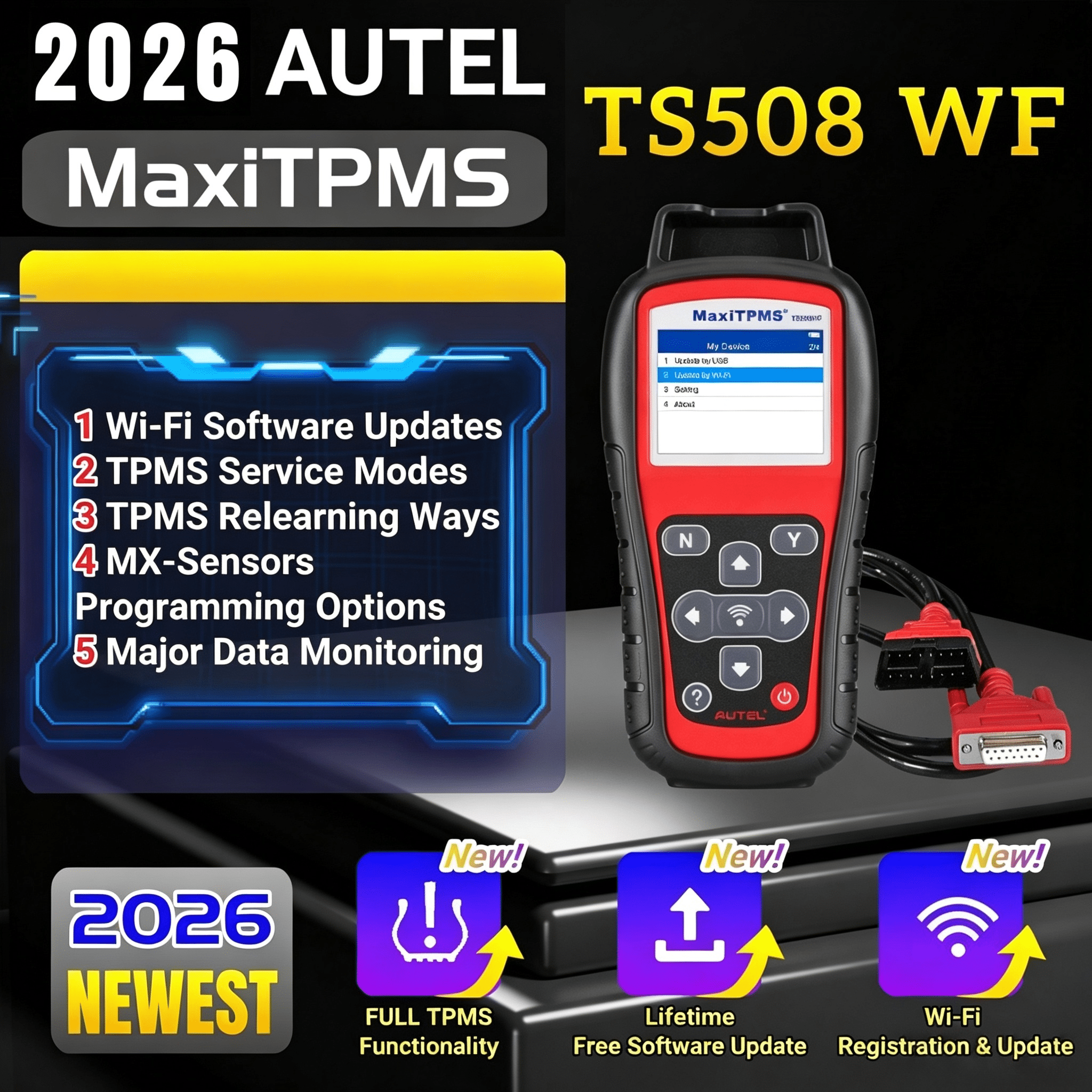

Autel MaxiTPMS TS508WF TPMS Programming Tool

The MaxiTPMS® TS508WF is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn. With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work. The Update by Wi-Fi function helps the update experience more convenient. It can be your right choice to experience AUTEL TPMS lines.

2025 Upgraded WiFi Ver. of TS508/ TS501/ TS408/ TS601/ TS501 PRO

Good News! Autel TS508WF TPMS scanner, Autel's first non-tablet tool providing lifetime WiFi updates is born! You can update it in a WiFi environment directly, no need for a computer anymore.
Autel TS508WF programming tool incorporating all features of TS508/ TS501/ TS408/ TS601, meets all your needs with all-around powerful functions including TPMS relearn, programming, activation, and TPMS related OBD2 diagnostics.
Superior to competitors, TS508WF can diagnose the newest models and updates at an amazing pace which allows you to enjoy more functions.

Activate 99% Sensors, Full TPMS Diagnosis

Autel TS508WF can trigger almost all OE and automotive aftermarket sensors, including both 433MHz and 315MHz sensors
TS508WF can quickly detect sensor information: sensor ID, pressure, temperature, battery, frequency, etc.
Autel TS508WF can scan all TPMS system modules to read and clear codes, turn off the TPMS warning light, etc.

There are two modes for you to choose

The TS508WF is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.
[Quick Mode Service] Scan Sensor & Vehicle Identification; Activate All the TPMS Sensor; Relearn Sensor: Automatic Relearn; Program Sensor: Auto Create; Sensor Information: Sensor ID, Frequency, Voltage, Hardware Version, OE Manufacturer, etc
[Advanced Mode Service] TPMS Diagnostics: Check TPMS and Sensor State; Trigger Sensors; Read/Erase DTCs; Re-check ECU; Turn off the Light; Program Sensor: Copy by OBD, Auto Create; Position Relearn: OBD Relearn, Automatic Relearn, Stationary Relearn; Information: OE Sensor and MX-Sensor Information, OBD2 Port Location, Read/Write Tire Type and Tire Pressure

Relearn All Sensors in Three Ways

Same as TS608, Autel TS508WF works as a professional TPMS reset tool to offer TPMS relearn, Autel TS508WF offers three ways to relearn all-known sensors
1, STATIONARY RELEARN: vehicle in learning mode to trigger sensors and learn sensor ID
2, AUTO RELEARN: can be completed by driving
3, OBD RELEARN: to transfer sensor IDs directly to ECU via OBD, which has become a fixed standard procedure in the workshop, guaranteeing 100% accurate sensor IDs.

Program Autel MX-Sensors

Autel TS508WF relearn tool makes it possible to program the sensor at your fingertips rather than turn to the dealer.
TPMS programming tool TS508WF provides all 2 ways to program Autel MX-Sensors (433MHz & 315MHz): Copy by OBD (TS408/ TS401 CANNOT); Auto Create 1-16 Sensors simultaneously (The Ave. time is 6-8s/pcs, higher programming efficiency). All these are easy to do and time-saving.
NOTE: AUTEL MAXITPMS TS508WF can only program Autel MX sensors; If you are in trouble with the TS508WF, or do not know how to use it properly, please contact us; For some professional questions, we can schedule a specialist from Autel Technology Support to call you; Remember: there is no single tool which fits all models of all vehicles on the market, always check the coverage and compatibility with us before your purchase.

HARDWARE SPEGIFIGATIONS

Display	TFT color display (320 x 240 dpi)
Power	3.7 V Li-polymer battery; 3200 mAh
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Dimensions (LxWxH)	215 mm (8.46″) / 105 mm (4.13″) / 37 mm (1.46″)
Weight	0.39 kg (0.86 lb.)

	Autel – MaxiTPMS TS508WF User Manual	Download
	MaxiTPMS TS508WF Function List	Download

Packing List

Name	list of items
User manual OBD II cable USB cable Carry case AC Adapter Magnet

Comparison

Comparison	TS508WF	TS508	TS501	TS408	TS401	TPMS PAD
TPMS function
Quick Mode & Advance Mode	√	√
Activate TPMS sensors	√	√	√	√	√	√
Read sensor data	√	√	√	√	√	√
TPMS diagnose, one step for complete TPMS health check	√	√	√
Read/clear TPMS DTCs; on-screen DTC description	√	√	√
Scan TPMS sensor ID and copy ID into MX-Sensor	√	√	√	√	√	√
Manual input OE ID into MX-sensor	√	√	√	√	√	√
Program MX-Sensor by auto creating sensor ID	√	√	√	√	√	√
Read Sensor ID by OBD and copy ID into MX-Sensor	√	√	√
Relearn by OBD function	√	√	√
Relearn procedure guide on the tool	√	√	√	√
Check Key FOB	√	√	√	√
Read TPMS live data	√	√
Tire Type/Pressure selection	√	√
Other TPMS special functions	√	√
TPMS Toolkit (other function)	√	√
Diagnostic function
Basic OBDII code reader	√	√
Read/clear codes for all electronic systems	√	√
Support all 10 test modes of the latest J1979 OBDII test specs	√	√
Enhanced OBDII Mode 6	√	√
Display live data in text, graph & analog for easy data review	√	√
Relearn parking brake pad after replacement;	√	√
Reset Steering Angle Sensor (SAS);	√	√
Reset service mileage and service intervals;	√	√
Forced regeneration and adjusting injectors;	√	√
Support battery registration and reset	√	√
Support IMMO functions	√	√
Complete diagnostic function	√	√
Tool features
Built-in rechargeable li-ion battery	√	√	√	√	√
Strong housing with protective rubber boot	√	√	√	√	√
Print TPMS sensor data via PC	√	√	√	√	√	√
Internet updatable	USB	USB	SD card	USB	USB	USB
Multilingual support	√	√	√	√	√	√
Historical test records	√	√	√	√	√
Limited one year warranty	√	√	√	√	√	√
Software Update	free	free	free	free	free	free
WiFi Update	√

Will it program any brand tpm ?

The TS508WF is primarily optimized for use with Autel’s own MX-Sensors, which include both programmable and universal TPMS sensors.
While it can read and diagnose many OEM TPMS sensors (across a broad range of vehicles), its programming functionality is generally limited to MX-Sensors.
It supports sensor cloning, ID copy, and ID generation — but again, these functions are restricted to compatible Autel sensors.
If you're looking to program third-party TPMS sensors from other brands, the TS508WF is not likely to support them. For full multi-brand TPMS sensor programming, a more universal tool or sensor-specific programmer may be required.
