Commercial Vehicle Diagnostics & Service Tablet

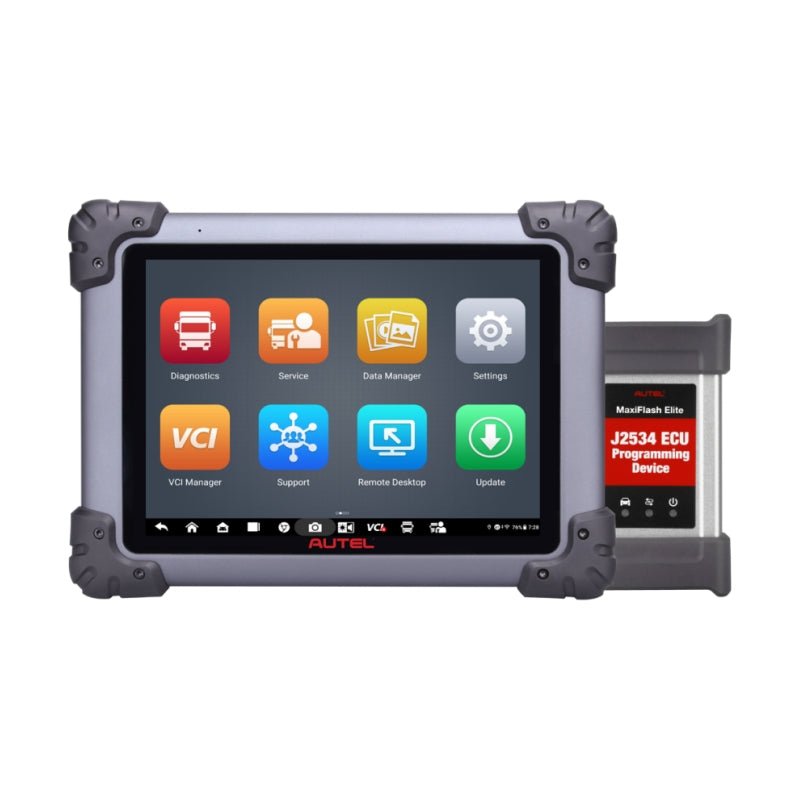

The MaxiSYS MS908CVII is a 9.7″ wireless touchscreen tablet with advanced diagnostics coverage for light-, medium-, and heavy-duty vehicles. All Systems fault detection via Auto Scan. Read and erase codes. View and graph live data. Perform Bi-directional control Active Tests and Special Functions. Expert Mode to enable technicians to access the system directly. Extensive service menu featuring over 40 service functions, including Forced DPF Regen, Oil Light and Maintenance Service Light resets, and Brake Bleed. Tablet features Android 10 OS, an Octa-Core processor and 128 GB of storage memory. Wireless printing. Includes one year of free software updates and is covered by a one-year limited warranty.
9.7″ wireless touchscreen Heavy Duty Vehicle Diagnostics and Service Tablet
Performs advanced diagnostics on Class1-Class9 Heavy duty vehicles
Read and Erase codes, view live data, perform bi-directional active tests
Expert Mode for direct access to OE-specific system components, including engine, transmission, and braking systems
Extensive service and maintenance functions menu including forced DPF regen, EPB, and OLS
Perform injector cutout tests, injector coding
Equipped with MaxiFlash wireless bluetooth VCI/J2534
AutoScan of all available modules
Supports newest communication protocols on light duty vehicles with purchase of MaxiSYS VCI200
Includes one year of free software updates and limited warranty coverage
Autel MaxiSYS MS908 CV II - The Next-Level Heavy-Duty Diagnostic Platform
- The Autel MaxiSys MS908CV II is the newest evolution of Autel's powerful diagnostic tools, purpose-built for the complex needs of commercial vehicle diagnostics. Engineered for professional repair shops and fleet maintenance, the MS908CV II delivers robust functionality across heavy-duty trucks, buses, construction, agriculture, and new-energy commercial vehicles.
- All-in-One Commercial Diagnostics
- Covering 80+ heavy-duty and medium-duty brands and 60+ off-highway manufacturers, the MS908CV II supports full-system diagnostics, ECU functions, and advanced bi-directional tests, enabling technicians to troubleshoot with precision and efficiency.
ECU Programming & Customization
- The MS908CV II provides OE-level ECU programming and adaptation, offering full flexibility for repair and customization:
- Program new or blank ECUs
- Reflash or update ECU software
- Adapt replacement components
- Unlock hidden vehicle features
- Online programming for brands like Freightliner, Volvo, Mercedes-Benz, and International
60+ Service Functions & Active Tests
- Maximize repair capabilities with comprehensive service coverage for 1996025 vehicles:
- Full-system diagnostics for diesel and electric commercial vehicles
- 30+ service functions, including: DPF Regeneration/ Battery Management System (BMS)/ Electronic Parking Brake (EPB)/ Steering Angle Sensor (SAS)/ Oil Reset/ Tire Pressure Monitoring System (TPMS), and more.
- Active Test / Bi-directional Control: Drive actuators and monitor real-time system responses for advanced troubleshooting.
Comprehensive Off-Highway & Agricultural Equipment Coverage
- The MS908CV II brings unparalleled diagnostic support to the construction and agricultural machinery market, with coverage for 60+ brands:
- Caterpillar, John Deere, Hitachi, Komatsu, Kubota, Liebherr, Claas, New Holland, Case IH, and more
- Read/clear codes for all systems
- Live data display in text, graph, and analog views
- Cloud-based report management view, save, print, and share reports easily
- Full support for high-voltage systems in off-highway equipment
(Some applications require dedicated adapters, sold separately)
| Name | parameters |
|---|---|
| Model | Autel MaxiSys MS908CV II |
| Operating System | Android 10 |
| Processor | Octa-core processor (2.2 GHz quad-core A73 + 1.8 GHz quad-core A53) |
| Memory | 4 GB RAM & 128 GB on-board memory |
| Display | 9.7 inch LED capacitive touchscreen with 2048 x 1536 resolution |
| Camera(Rear) | 16.0 megapixels; auto focus with flashlight |
| Connectivity | · WiFi (802.11 a/b/g/n/ac) |
| · USB: 2.0 | |
| · Bluetooth v5.0 + EDR | |
| · SD Card (Support up to 64 GB) | |
| · HDMI | |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | · Microphone |
| · Dual Speakers | |
| · 3-Band 3.5 mm stereo/standard headset jack | |
| Power and Battery | · 11000 mAh 3.7 V lithium-polymer battery |
| · Charging via 12 V AC/DC power supply with a temperature between 0 °C and 45 °C | |
| Input Voltage | 12 V (9-24 V) |
| Power Consumption | 6.5 W |
| Operating Temp | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temp | -20 °C to 60 °C (-4 °F to 140 °F) |
 |
MaxiSYS_MS908CV_II_User_Manual_EN_V2.1 | Download |
|
HeavyDuty-CompChart-01182024 | Download |
|
MS908CVII_Packing_List | Download |
|
MS908CVII-Flyer-10022023 | Download |
| Name | list of items |
|---|---|
Main Package
|
 |
| MS909CV | MS908CV II | MS908CV | MD600CV | |
|---|---|---|---|---|
| Hardware | ||||
| CONNECTION | J2534 PASS THRU PROGRAMMING DEVICE |
J2534 PASS THRU PROGRAMMING DEVICE |
J2534 PASS THRU PROGRAMMING DEVICE |
J2534 PASS THRU PROGRAMMING DEVICE |
| WIRELESS / BLUETOOTH | WIRELESS / BLUETOOTH | WIRELESS / BLUETOOTH | WIRELESS / BLUETOOTH | |
| COLOR SCREEN | 9.7inch touchscreen | 9.7inch touchscreen | 9.7inch touchscreen | 5.5 inch touchscreen |
| 1536X2048 DPI / LED COLOR SCREEN | 1536X2048 DPI / LED COLOR SCREEN | 1024X768 DPI / LED COLOR SCREEN | 1280X720 DPI / LED COLOR SCREEN | |
| PROCESSOR | 2.2GHz+1.8GHz OCTA-CORE | 2.2GHz+1.8GHz OCTA-CORE | 1.4GHz QUAD-CORE | |
| MEMORY | 128GB SSD/ 4GB RAM | 128GB SSD/ 4GB RAM | 64GB SSD/ 1GB RAM | |
| INTERNAL BATTERY | 15,000mAh | 15,000mAh | 11,000mAh | |
| CAMERA | 16.0 MP & 5.0 MP Front & Rear | 16.0 MP & 5.0 MP Front & Rear | 5.0 MP with flashlight | |
| ACCESSORY PORTS | HDMI / USB | HDMI / USB | HDMI / USB | USB |
| OBDII CONNECTORS | DEUTSCH 6PIN & 9PIN & COMPLETE PROBE SET | DEUTSCH 6PIN & 9PIN & COMPLETE PROBE SET | DEUTSCH 6PIN & 9PIN & COMPLETE PROBE SET | DEUTSCH 6PIN & 9PIN & COMPLETE PROBE SET |
| PRINTING | Wi-Fi to PC | Wi-Fi to PC | Wi-Fi to PC | Wi-Fi to PC |
| SOFTWARE | ||||
| OPERATING SYSTEM /USER INTERFACE |
ANIDROID 10.0 | ANIDROID 10.0 | ANIDROID 4.42 | ANIDROID 7.0 |
| MAXISYS SYSTEM SUITE | REMOTE SUPPORT/DATA LOGGING | REMOTE SUPPORT/DATA LOGGING | REMOTE SUPPORT/DATA LOGGING | REMOTE SUPPORT/DATA LOGGING |
| INTERNET UPDATES | 1 YEAR FREE | 1 YEAR FREE | 1 YEAR FREE | 1 YEAR FREE |
| AUTOMATIC DETECTION | AUTO-VIN/AUTO SCAN/SCANVIN | AUTO-VIN/AUTO SCAN/SCANVIN | AUTO-VIN/AUTO SCAN | AUTO-VIN |
| OFF-HIGHWAY+AGRICULTURAL | OVERAGE INCLUDED | |||
| TRAILER+SPECIAL VEHICLE | OVERAGE INCLUDED | OVERAGE INCLUDED | OVERAGE INCLUDED | |
| FEATURES | ||||
| VEHICLE DIAGNOSTICS | CLASS 1 - CLASS 9 0 33,000LBS |
CLASS 1 - CLASS 9 0 33,000LBS |
CLASS 1 - CLASS 9 0 33,000LBS |
CLASS 3 - CLASS 9 10,000LBS 33,000LBS |
| BASIC*&SPECIAL FUNCTIONS | ALL MAKES &ALL MODELS | ALL MAKES &ALL MODELS | ALL MAKES &ALL MODELS | ALL MAKES &ALL MODELS |
| HD VEHICLE FEATURES | SAEJJ1939/SAEJ708 MIFG.CUST.J1939/JJI708 PROTOCOLS |
SAEJJ1939/SAEJ708 MIFG.CUST.J1939/JJI708 PROTOCOLS |
SAEJJ1939/SAEJ708 MIFG.CUST.J1939/JJI708 PROTOCOLS |
SAEJJ1939/SAEJ708 MIFG.CUST.J1939/JJI708 PROTOCOLS |
| SERVICE RESETS | 64+ SERVICE FEATURES | 40+ SERVICE FEATURES | 36+ SERVICE FEATURES | 30+ SERVICE FEATURES |
| DIESEL PM | CLASS 1-9 RESET DIESEL | CLASS 1-9 RESET DIESEL | CLASS 1-9 RESET DIESEL | CLASS 3-9 RESET DIESEL |
| SYSTEM DIAGNOSTICS | ACCESS ALL MODULES IN ALL SYSTEMS ON SELECT VEHICLE |
ACCESS ALL MODULES IN ALL SYSTEMS ON SELECT VEHICLE |
ACCESS ALL MODULES IN ALL SYSTEMS ON SELECT VEHICLE |
ACCESS ALL MODULES IN ALL SYSTEMS ON SELECT VEHICLE |
| ENHANCED FUNCTIONS | ADVANGED CODING+ADAPTATIONS | ADVANGED CODING+ADAPTATIONS | ADVANGED CODING+ADAPTATIONS | ADVANGED CODING+ADAPTATIONS |
| COMPONENT ACTIVATIONS | BI-DIRECTIONAL CONTROLS | BI-DIRECTIONAL CONTROLS | BI-DIRECTIONAL CONTROLS | |
| BATTERY ANALYSIS | MAXIBAS SOFTWARE WITH MULTIMETER AMP CLAMPS & B200 INCLUDED |
|||
| ADAS CALIBRATIONS | STATIC CALIBRATION CLASS 3-5° CLASS 6-8 DYNAMIC CALIBRATION |
|||
