Autel MA60020 LDW 2.0 ADAS Calibration Package | US Version
US Version | MA60020 LDW 2.0 Package
- Included: Portable MA600 frame, LDW targets and patterns case.
- Software: ADAS software upgrade included; compatible MaxiSYS tablet required and sold separately.
- Expansion: Optional packages for supported ACC, BSM, AVM and night vision applications sold separately.
- Setup: Virtual setup and onboarding with an Autel ADAS expert. In-shop training not included.
- Warranty: One-year limited warranty.
Already own a MaxiSYS tablet?
Before ordering, email
support@autel-us.com
with your tablet model, vehicle details and required
calibration so we can help check compatibility,
targets and additional equipment.
Suggested accessories—select only what your calibration procedure requires. Already own a component? Uncheck it before adding to cart.
Autel MA60020 — Portable LDW 2.0 ADAS Calibration Package

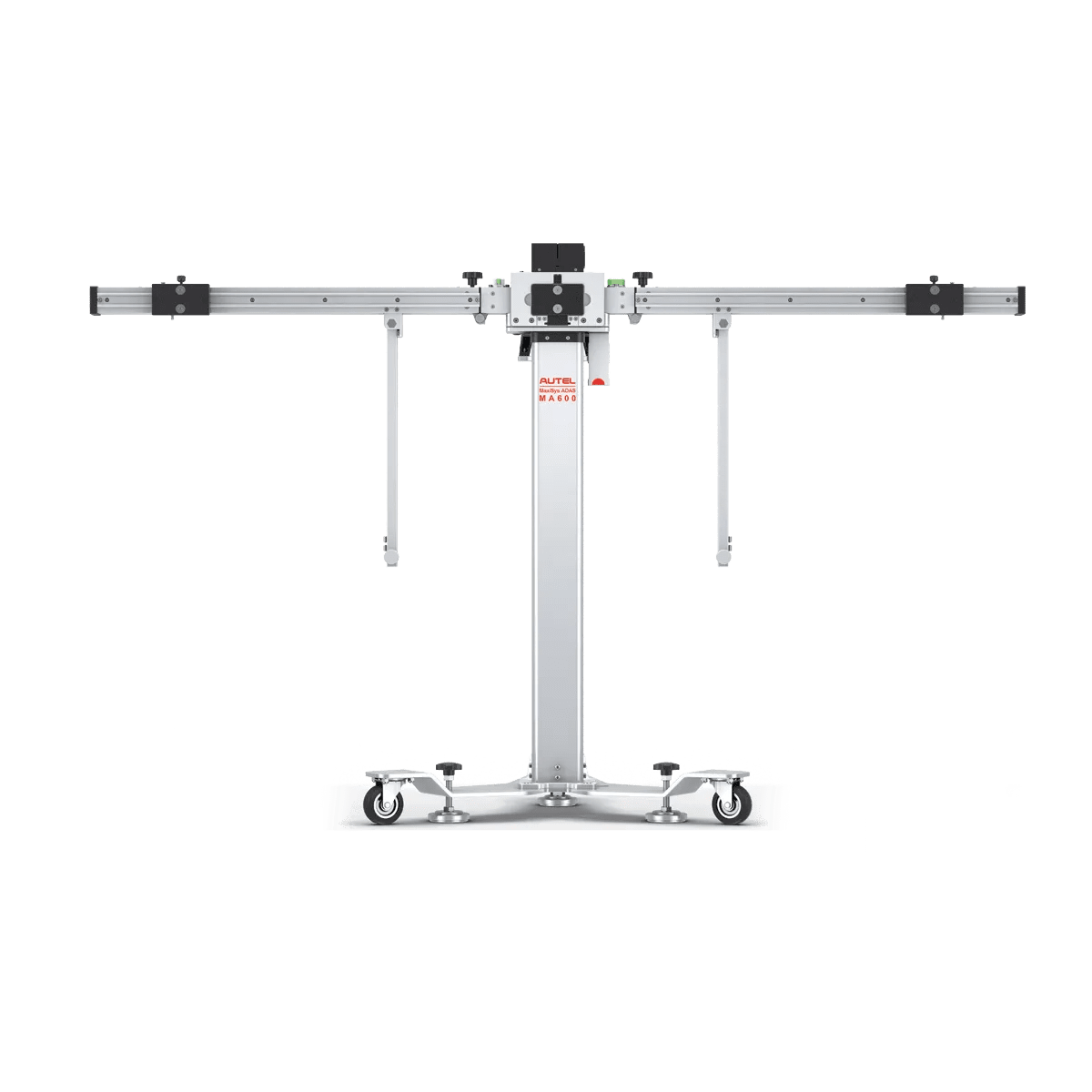

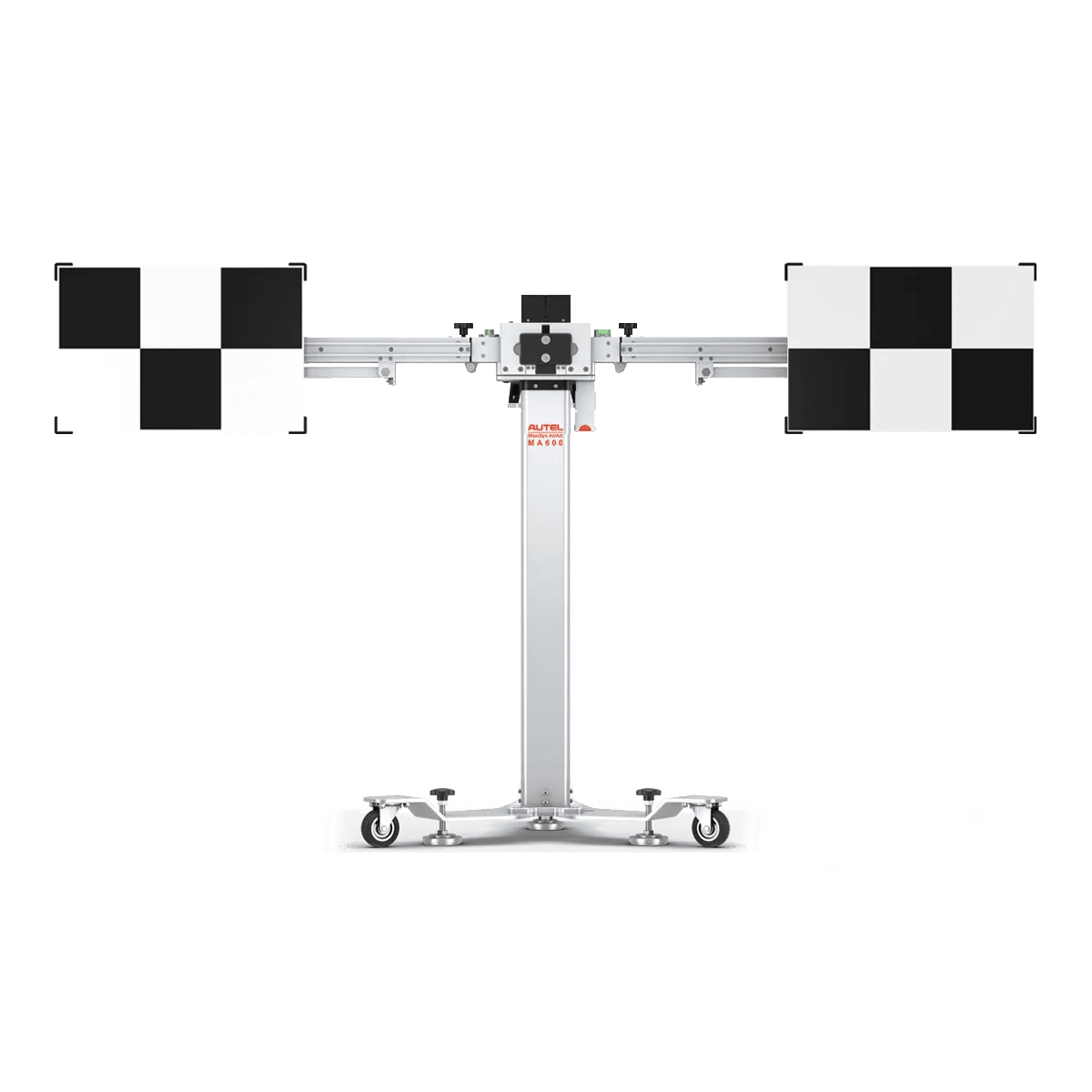

The Autel MA60020 combines the portable MA600 calibration frame with LDW targets, a patterns case and an ADAS software upgrade for a compatible MaxiSYS tablet. This US Version package is designed for workshops performing supported lane departure warning camera calibrations. A diagnostic tablet is not included.
- Portable MA600 frame: A collapsible calibration frame for mobile service and workshops that need a setup they can store between jobs.
- LDW targets and patterns case: Includes targets for supported vehicle applications, including the Toyota LDA target, together with a patterns case.
- ADAS software upgrade included: For use with a compatible MaxiSYS tablet, purchased separately. Confirm your tablet’s eligibility before ordering.
- Optional calibration expansion: Additional packages are available for supported BSM, ACC, AVM and night vision applications. These expansion packages are sold separately.
- Setup support and warranty: Includes virtual setup and onboarding training conducted by an Autel ADAS expert, plus a one-year limited warranty. In-shop training is not included.
Check your tablet, targets and workspace before ordering. Email support@autel-us.com with your MaxiSYS tablet model, existing ADAS equipment, vehicle year, make and model, and the calibration you need to perform. We can help review the required configuration before purchase.
Calibration coverage depends on the vehicle, installed software, required targets and applicable procedure. Follow the vehicle manufacturer’s instructions for workspace, vehicle preparation and equipment positioning.
MA60020 · US Version
Portable ADAS Calibration for LDW Camera Service
The Autel MA60020 LDW 2.0 package combines the portable MA600 calibration frame with LDW targets, a patterns case and an ADAS software upgrade for supported calibration applications.
It provides a starting point for workshops adding lane departure warning camera calibration to their services, using a compatible MaxiSYS tablet to access the applicable calibration workflow.
- Portable MA600 calibration frame.
- LDW targets and patterns case.
- ADAS software upgrade included.
- Compatible MaxiSYS tablet sold separately.
Calibration coverage depends on the vehicle, installed software, required targets and applicable service procedure. Confirm your intended applications before ordering.

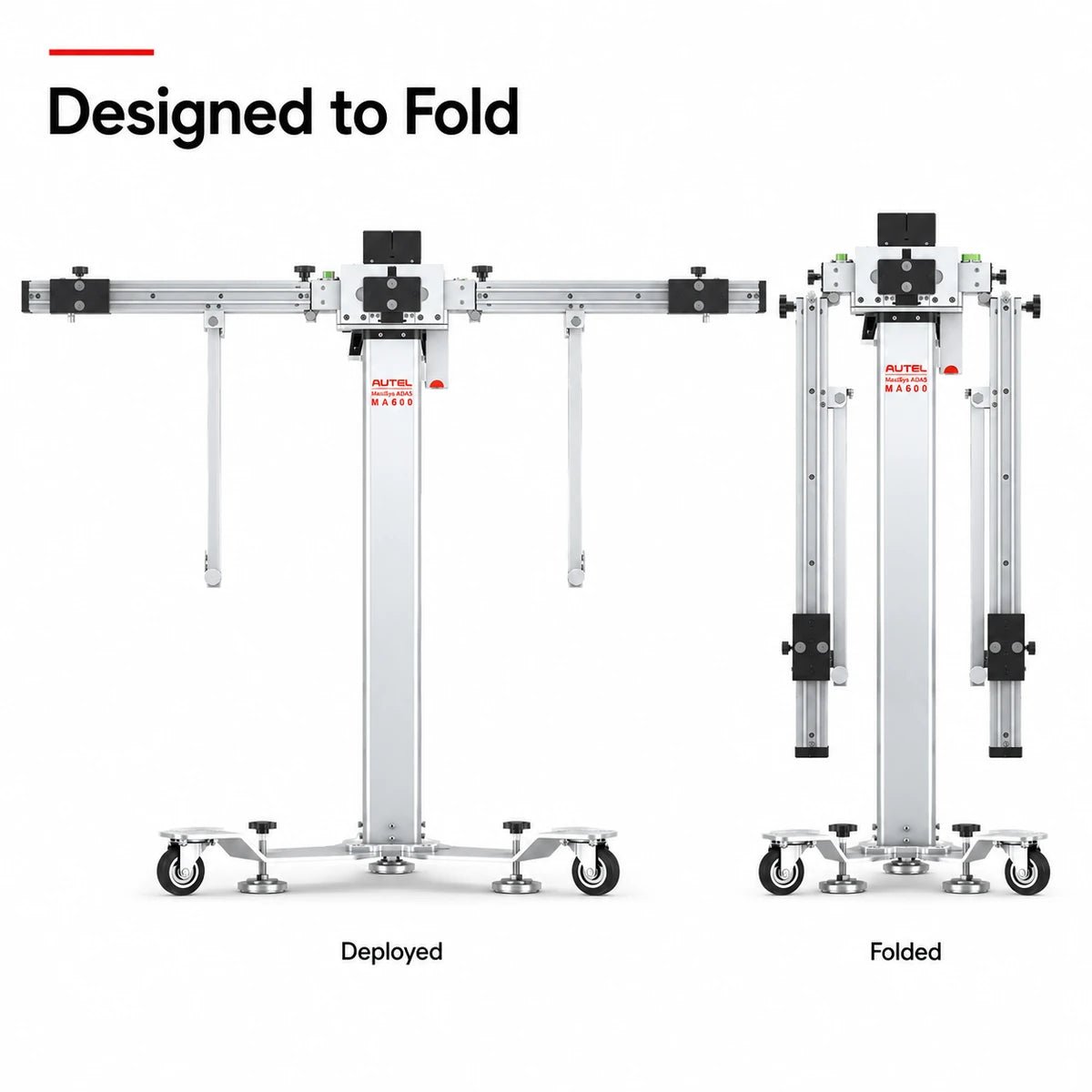

Transport & Storage
A Collapsible Frame for Your Workshop Workflow

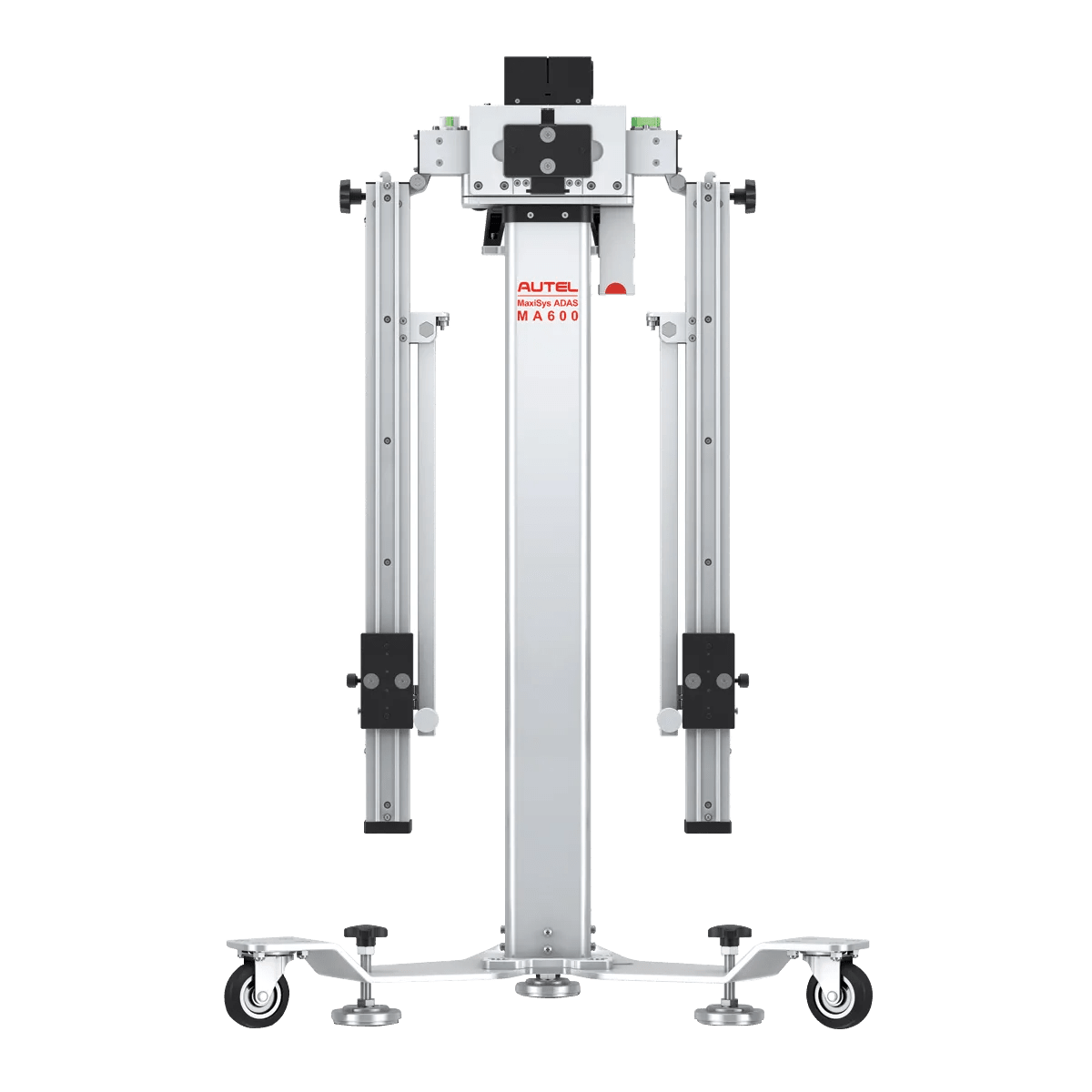

The MA600 frame folds for transport and storage, offering a portable alternative for workshops that need to move or store their calibration equipment between jobs.
Its collapsible design supports practical equipment handling. Once deployed, the frame must be positioned and checked according to the calibration procedure for the vehicle being serviced.
Portability does not remove the need for a suitable working area. Verify the required floor conditions, clearances, lighting and vehicle preparation before beginning a calibration.

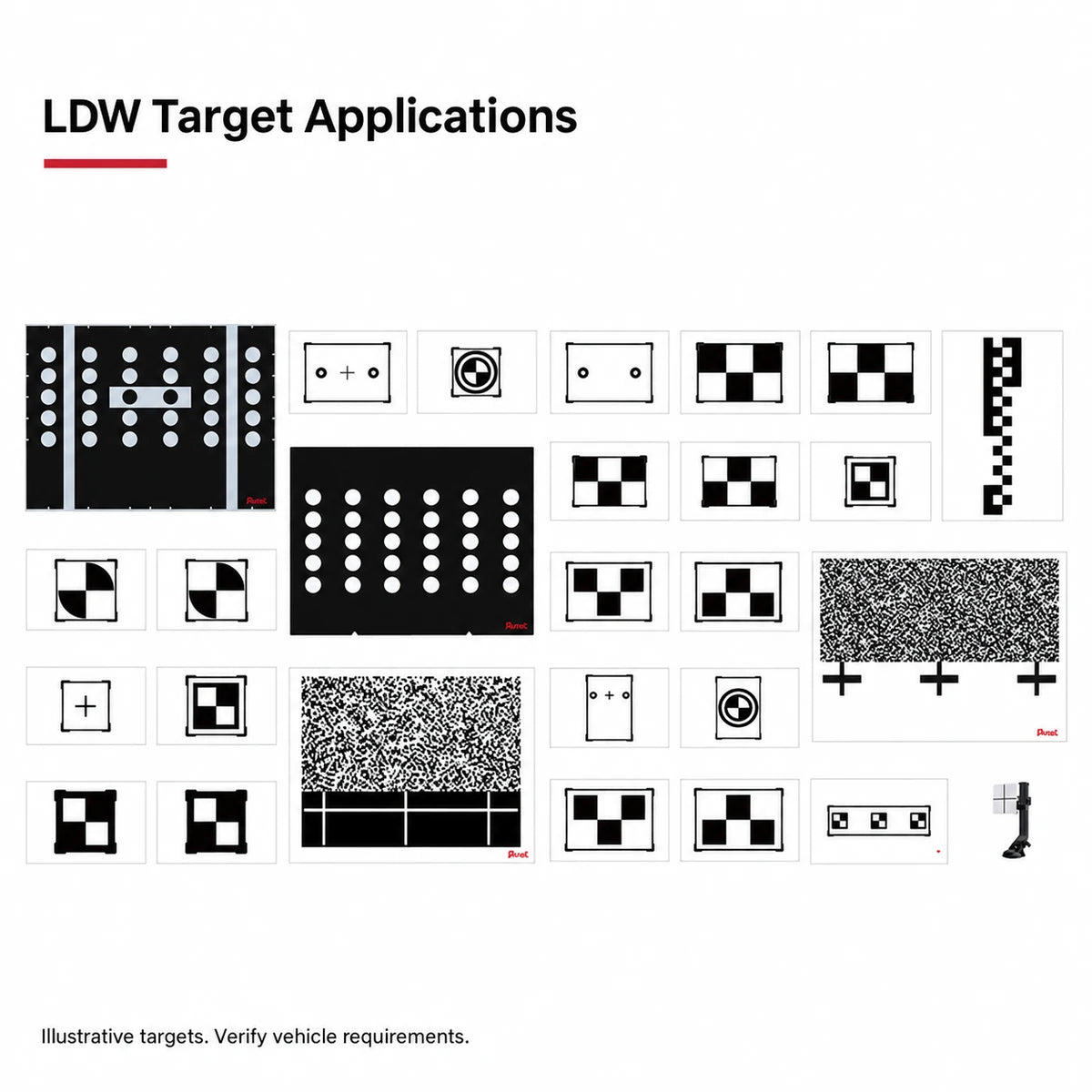

Vehicle-Specific Targets
Match the LDW Target to the Vehicle Procedure

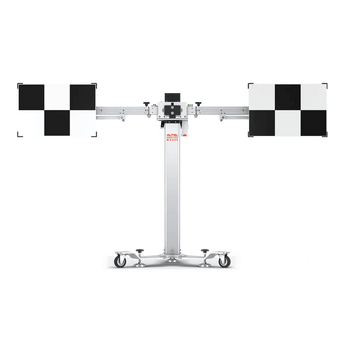

The MA60020 package includes LDW targets and a patterns case. Autel also identifies a Toyota LDA target among the package features.
Different vehicles can require different target patterns and positioning procedures. Select the target specified by the applicable calibration instructions rather than assuming that one pattern covers every vehicle from a manufacturer.
Before purchasing, contact our team with the vehicle year, make, model and intended calibration procedure. We can help check the required target and package configuration.
The image illustrates target applications and is not an itemized packing list or a calibration-ready target file.

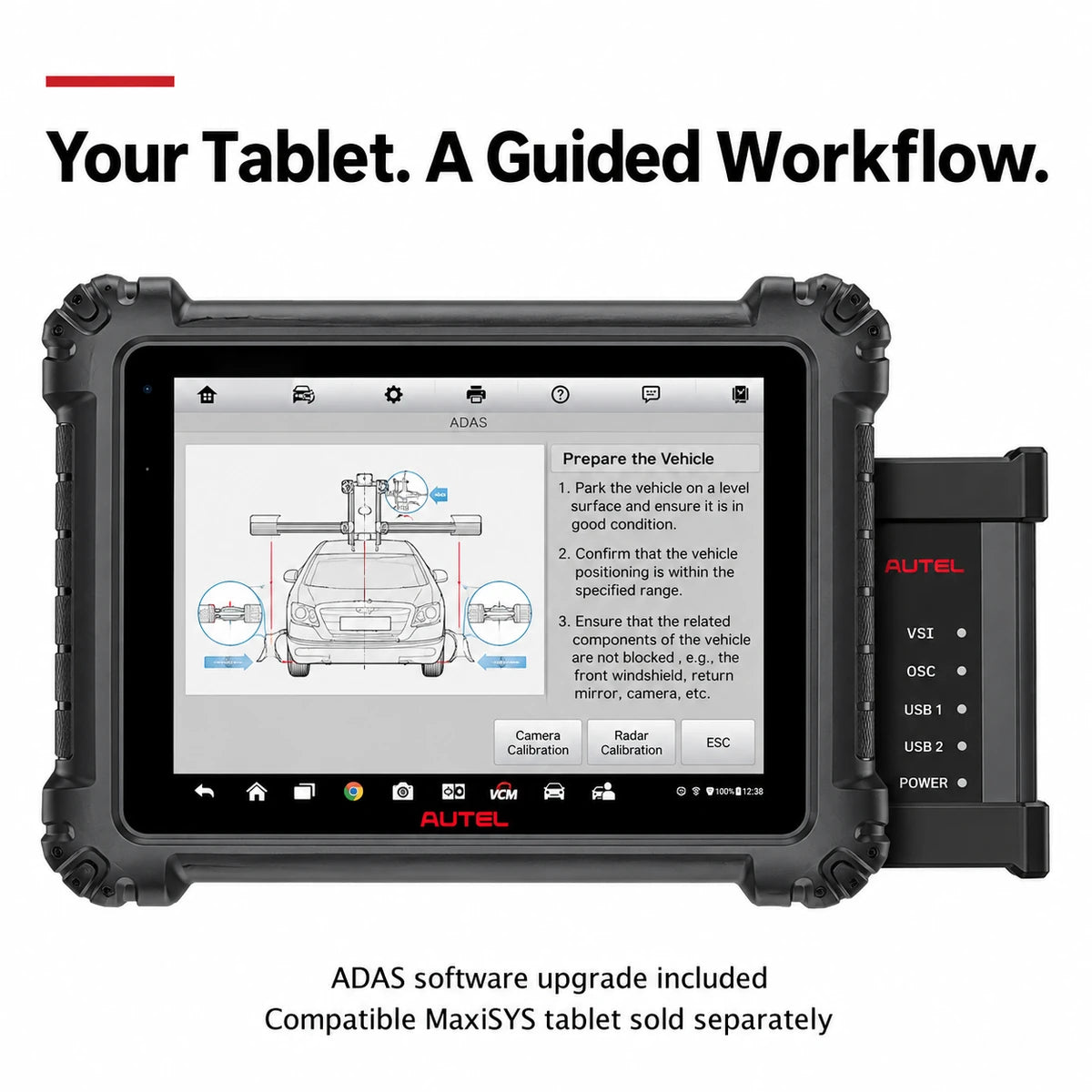

Software & Compatibility
ADAS Software Upgrade Included — Tablet Sold Separately
The MA60020 package includes an ADAS software upgrade. A compatible MaxiSYS tablet is required to access supported calibration functions and is sold separately.
If you already own an Autel tablet, confirm its exact model and current software configuration before ordering. Do not assume every MaxiSYS tablet supports the same ADAS functions or upgrade options.
The included ADAS software upgrade is different from a Total Care software renewal. Contact our team to verify the activation and software requirements for your existing equipment.
The tablet image is illustrative. No tablet is included with this MA60020 listing.

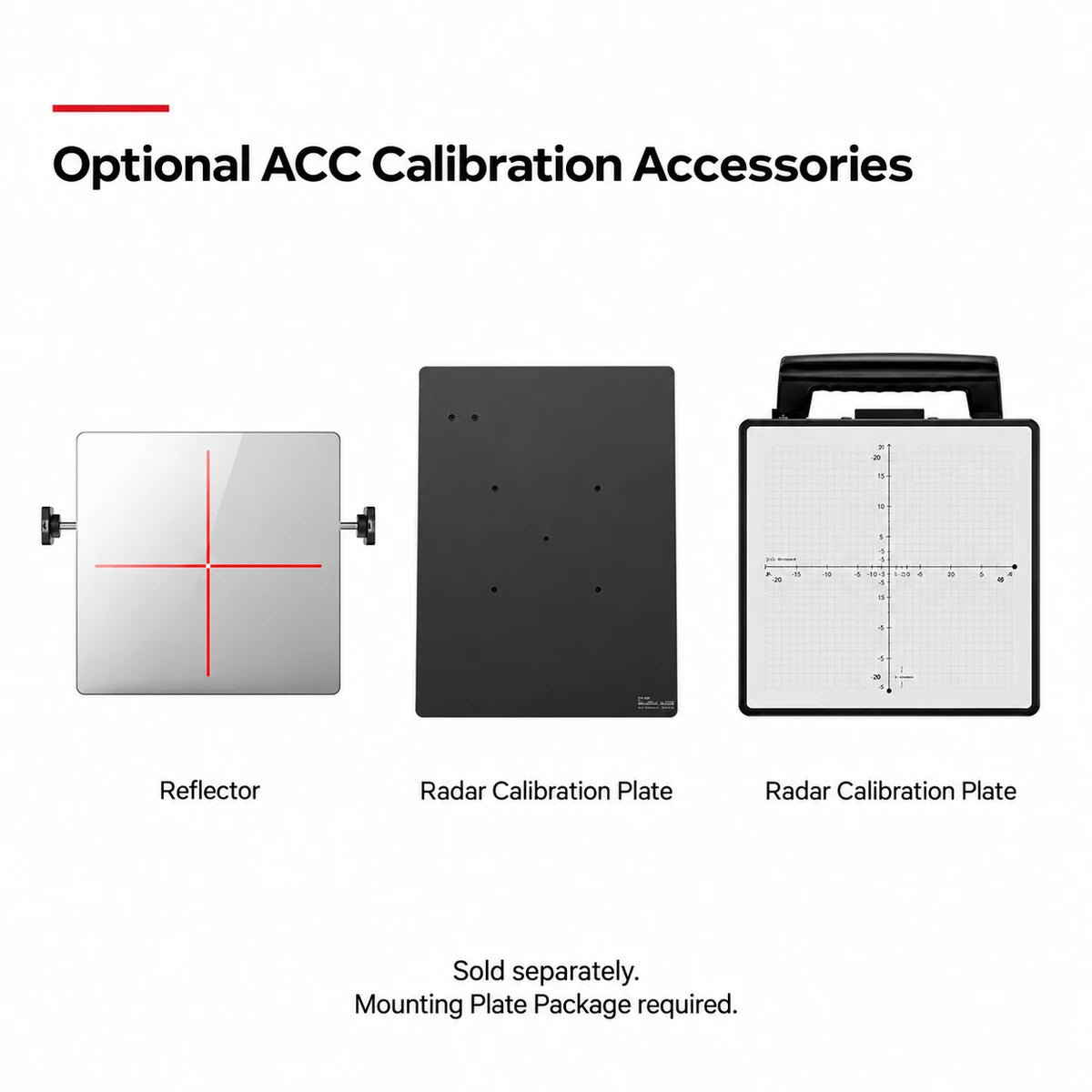

Optional Expansion
Expand into ACC Calibration with Optional Accessories
The MA600 platform supports optional accessories for additional calibration applications. The examples pictured here are ACC accessories: a reflector and two radar calibration plates.
These accessories are sold separately and are not included in the MA60020 LDW package. Autel specifies a Mounting Plate Package for the three pictured accessories.
The correct accessory depends on the vehicle and radar system. Before ordering an expansion accessory, contact our team with the vehicle year, make, model and required calibration procedure so we can help verify the necessary configuration.
Additional accessories, software and setup equipment may be required for the selected application.

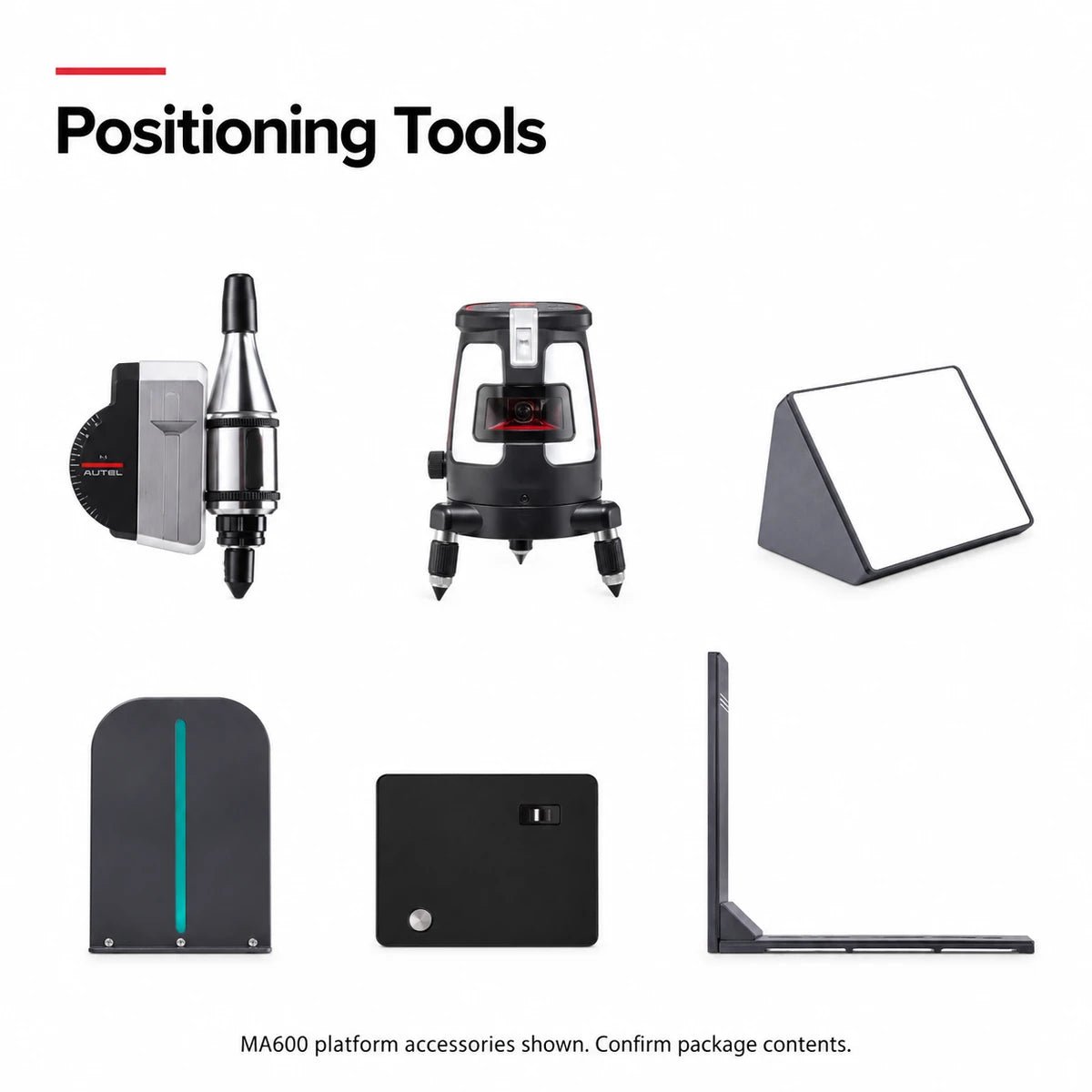

Positioning & Preparation
Prepare for Vehicle-Specific Positioning
ADAS calibration starts with the setup required by the vehicle procedure. Autel's MA600 platform materials illustrate positioning tools such as laser tools, a plumb line and an L-shaped positioning bracket.
Required tools and positioning steps vary by application. Follow the applicable vehicle procedure when preparing the vehicle, positioning the frame and selecting the target.
Contact our team before purchasing to confirm the MA60020 package contents, compatible tablet, software requirements and any additional equipment needed for your intended work.
The image illustrates MA600 platform accessories and does not establish the exact contents of this MA60020 package.
MA60020 Application & Compatibility
The Autel MA60020 LDW 2.0 US Version package is intended for supported lane departure warning camera calibration applications. A suitable setup requires the correct targets, a compatible MaxiSYS tablet, applicable ADAS software and the working conditions specified for the vehicle.
LDW Camera Calibration
- The package includes the portable MA600 frame, LDW targets and a patterns case.
- Autel identifies the Toyota LDA target among the MA60020 package features.
- Coverage must be checked for the exact vehicle and calibration procedure. A manufacturer name alone does not confirm compatibility.
Tablet & Software Requirements
- A compatible MaxiSYS tablet is required and is sold separately.
- An ADAS software upgrade is included. Confirm eligibility and activation requirements for your exact tablet model before ordering.
- The ADAS software upgrade is different from a Total Care software renewal.
Optional Calibration Expansion
- Autel offers optional MA600 platform packages for supported BSM, ACC, AVM and night vision applications.
- Expansion packages are sold separately and are not included in this MA60020 LDW listing.
- Confirm the required targets, mounting hardware, software and other equipment for each additional application.
Workspace & Vehicle Preparation
- Check the vehicle procedure for floor conditions, working clearances, lighting and target positioning.
- Complete the specified vehicle preparation and any required diagnostic or alignment checks.
- A portable frame does not remove the need to meet the calibration procedure's setup requirements.
Check Your Configuration Before Ordering
Email support@autel-us.com with the following information so we can help review your intended setup:
- Vehicle year, make, model and the ADAS calibration you need to perform.
- Your MaxiSYS tablet model and current ADAS software or activation status.
- The model numbers of any calibration frame, targets and accessories you already own.
Compatibility depends on the vehicle configuration, installed software, required equipment and applicable procedure. Follow the vehicle manufacturer's service instructions. This section is application guidance, not a complete vehicle coverage list.
What’s Included with the Autel MA60020?
This listing is for the Autel MA60020 LDW 2.0 US Version package. It includes the portable MA600 frame, LDW targets, a patterns case and an ADAS software upgrade. A compatible MaxiSYS tablet is sold separately.
| Included Item | Description |
|---|---|
| MA600 Calibration Frame | Portable, collapsible MA600 frame for supported ADAS calibration applications. |
| LDW Patterns / Targets | LDW targets for supported vehicle applications. The required pattern depends on the vehicle and calibration procedure. |
| Toyota LDA Target | Toyota LDA target identified by Autel among the MA60020 package features. |
| Patterns Case | Case for storing and transporting the included calibration patterns. |
| ADAS Software Upgrade | ADAS software upgrade for a compatible MaxiSYS tablet. Confirm tablet eligibility and activation requirements before ordering. The tablet itself is not included. |
Included Support & Warranty
- Virtual setup and onboarding training conducted by an Autel ADAS expert.
- One-year limited warranty.
- In-shop training is not included.
Sold Separately
- Compatible MaxiSYS diagnostic tablet.
- Optional BSM, ACC, AVM and night vision expansion packages.
- Additional targets, mounting hardware or equipment required for applications beyond the supplied package configuration.
Need to confirm a specific target or accessory? Email support@autel-us.com with your vehicle details, required calibration and existing equipment model numbers before ordering. Description images illustrate product applications and should not be treated as an itemized packing list.
Compare Autel MA600 Calibration Packages
Choose your package around the tablet you already own and the calibration applications you plan to offer. MA60020 and MA60020T focus on LDW calibration, while MAS20 supplies a broader selection of calibration equipment.
| Package Feature | MA60020 LDW 2.0 · This Product | MA60020T LDW 2.0T · With Tablet | MAS20 All Systems 2.0 |
|---|---|---|---|
| Package Focus | LDW camera calibration with a separately purchased compatible tablet. | LDW camera calibration with a tablet included. | Broader calibration applications with a separately purchased compatible tablet. |
| MA600 Mobile Frame | Included | Included | Included |
| LDW Targets | Included | Included | Included |
| Diagnostic Tablet | Not included. Compatible MaxiSYS tablet required. | MS909 S2 included, as identified on Autel's current MA60020T product page. | Not included. Compatible MaxiSYS tablet required. |
| ADAS Software Upgrade | Included | Included | Included |
| Equipment Beyond LDW | Optional expansion packages sold separately. | Optional expansion packages sold separately. | Broader equipment package, including accessories for supported ACC, AVM and night vision applications. |
| Typical Purchase Situation | You already own a compatible MaxiSYS tablet and want to add supported LDW calibration. | You need both the LDW calibration equipment and a diagnostic tablet. | You want equipment for a wider range of calibration applications and already own or plan to purchase a compatible tablet. |
| Confirm Before Ordering | Existing tablet eligibility, required LDW targets and workspace. | Supplied tablet configuration, required LDW targets and workspace. | Required systems, vehicle-specific targets, tablet eligibility and workspace. |
Not sure which MA600 package to choose? Email support@autel-us.com with your existing tablet and equipment model numbers, the vehicles you service and the calibration applications you need. We can help review the appropriate configuration before you order.
This comparison summarizes package differences. An All Systems package does not guarantee coverage for every vehicle or calibration procedure. Confirm the exact equipment and software required for your intended applications.
Autel MA60020 US Version: Frequently Asked Questions
Check package contents, tablet compatibility and calibration requirements before choosing your MA60020 setup.
Q1. What is included in the Autel MA60020 LDW 2.0 package?
The Autel MA60020 LDW 2.0 package includes the portable MA600 calibration frame, LDW patterns and targets, a patterns case and an ADAS software upgrade. Autel also identifies a Toyota LDA target among the package features.
A compatible MaxiSYS tablet is required and is sold separately. Optional expansion packages for additional calibration applications are not included.
Q2. What is the difference between MA60020, MA60020T and MAS20?
MA60020 is an LDW calibration package for use with a separately purchased compatible MaxiSYS tablet. MA60020T is the LDW package with a tablet included.
MAS20 is the MA600 All Systems 2.0 package, supplying a broader selection of calibration equipment for supported applications beyond LDW. A compatible tablet is sold separately with MAS20.
Choose according to your existing tablet and the calibration services you intend to offer. Broader equipment coverage does not mean every vehicle or procedure is supported.
Q3. Will MA60020 work with my existing MaxiSYS tablet?
MA60020 requires a compatible MaxiSYS tablet with the applicable ADAS software. Compatibility must be checked for your exact tablet model and software configuration; owning a MaxiSYS tablet alone does not confirm eligibility.
Before purchasing, email support@autel-us.com with your tablet model, current ADAS activation status and the calibration applications you need. We can help review compatibility and activation requirements before you order.
Q4. Is the included ADAS software upgrade the same as a Total Care renewal?
No. The included ADAS software upgrade and a Total Care software renewal serve different purposes. The ADAS upgrade relates to enabling applicable ADAS calibration functions on a compatible tablet; it should not be treated as a promise of a new tablet update subscription.
If your tablet already has ADAS software or its update subscription has expired, email support@autel-us.com with the model and current software status. Confirm the required activation and update arrangements before purchasing the package.
Q5. How do I check whether MA60020 supports my vehicle’s LDW calibration?
Check the exact vehicle year, make, model, ADAS system and required calibration procedure. Support depends on the installed software and the specified target and equipment configuration.
A target associated with a vehicle manufacturer does not establish coverage for every model or every camera calibration from that manufacturer.
Before purchasing, email support@autel-us.com with the vehicle details, required procedure and your existing equipment. Include the VIN if available so we can help review the intended application.
Q6. Does MA60020 include ACC, blind spot, around-view or night vision calibration equipment?
MA60020 is the LDW 2.0 package. Autel offers optional MA600 platform expansion packages for supported ACC, blind spot monitoring, around-view monitoring and night vision applications. These packages are sold separately.
The three ACC accessories illustrated in this product description are optional examples. Autel specifies a Mounting Plate Package for those accessories; purchasing a reflector or radar plate alone may not provide the complete setup your procedure requires.
Email support@autel-us.com before ordering additional accessories. Provide the vehicle, required calibration and equipment you already own so we can help check the configuration.
Q7. Can I use the portable MA600 frame at any workshop or mobile service location?
The MA600 frame folds for transport and storage, but each calibration location must still meet the applicable vehicle procedure's requirements.
Check floor conditions, clear working space, lighting, vehicle preparation and target positioning. Complete any diagnostic or alignment checks required by the vehicle manufacturer.
Before purchasing for a specific workshop or mobile workflow, email support@autel-us.com with the vehicles and procedures you plan to service, together with your available workspace dimensions. We can help review the relevant setup requirements.
Q8. What training and warranty are included with this MA60020 US Version package?
Autel identifies virtual setup and onboarding training conducted by an Autel ADAS expert for MA600 system purchases. In-shop training is not included. The MA60020 package includes a one-year limited warranty.
For setup arrangements or warranty assistance, email support@autel-us.com with your order number and equipment details.
