Autel
US Version | MA600 Frame Only
Check your configuration before ordering.
Email
support@autel-us.com
with your tablet model, existing equipment, vehicle details
and required calibration task.
The Autel MA600 US Version is a portable, collapsible aluminum calibration frame for use in compatible Autel ADAS calibration setups. Its folding design supports transport and storage, while adjustable positioning helps technicians set up compatible calibration targets according to the vehicle-specific procedure. This listing is for the MA600 frame-only configuration.
Confirm your setup before ordering. Email support@autel-us.com with your tablet model, ADAS software status, existing targets and intended vehicles or calibration tasks. We can help identify the equipment requirements and confirm the supplied configuration before purchase.
MA600 | US Version

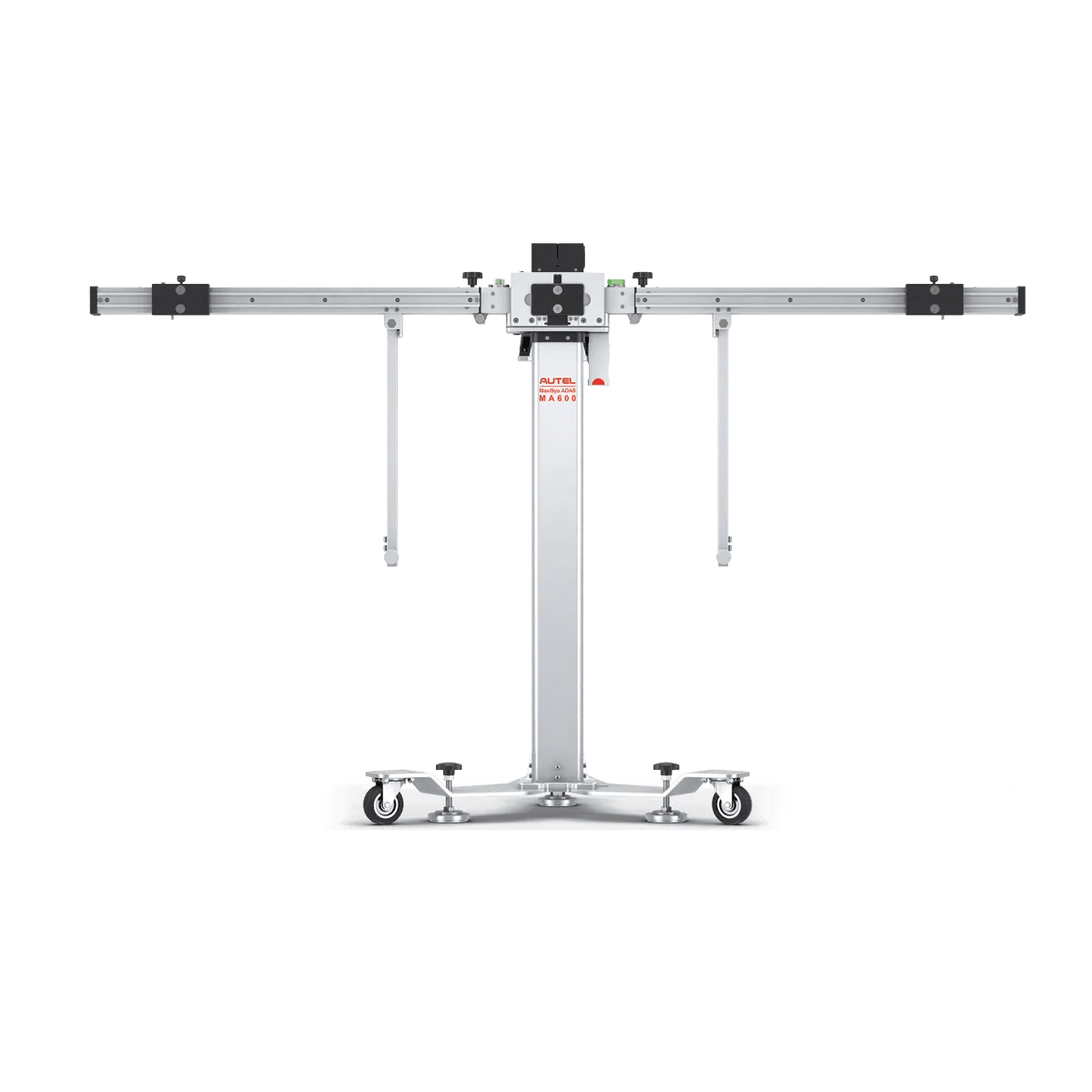

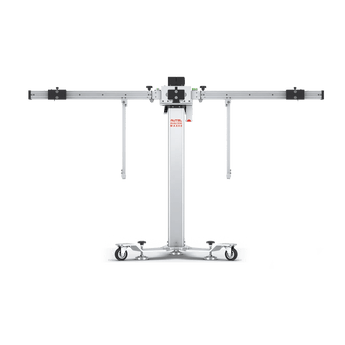

The Autel MA600 provides a collapsible aluminum frame for compatible ADAS calibration setups. Its adjustable structure supports target positioning for vehicle-specific procedures, making it a practical platform for shops building or expanding an existing Autel calibration setup.
Frame-only configuration: This US Version listing is for the MA600 frame. Calibration capability depends on the compatible tablet, ADAS software, targets and accessories used with the frame.
Storage & Transport

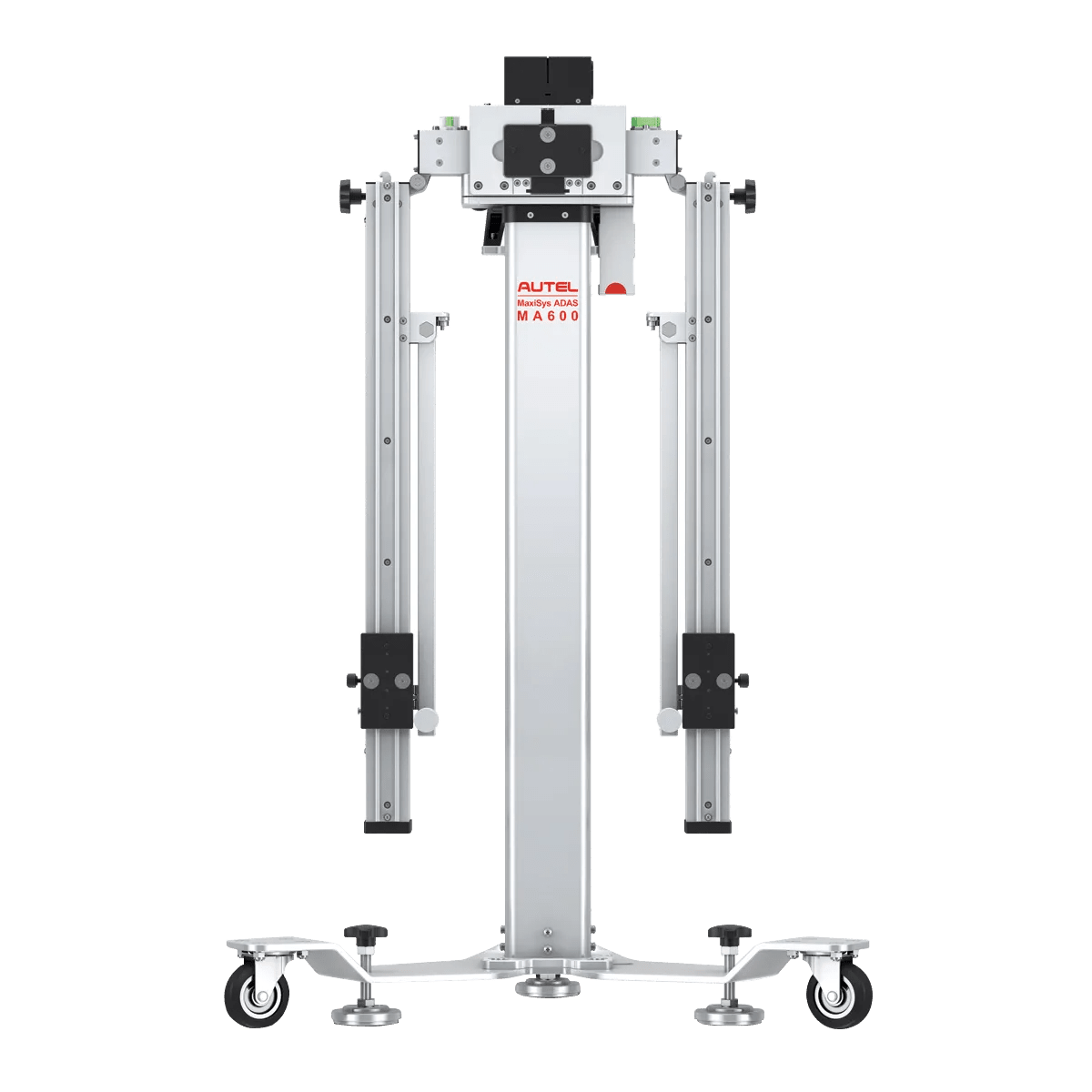

The MA600 crossbar folds into three sections, and the crossbar assembly can be removed from the column for transport. This design helps technicians store the equipment between jobs and move it between suitable calibration locations.
A portable frame still requires a suitable work area. Follow the vehicle-specific requirements for floor conditions, lighting, clearance and target placement at each location.
Target Setup
The MA600 frame provides height adjustment and fine-positioning controls to help technicians place compatible calibration targets according to the applicable procedure. Target selection, mounting and measurement requirements vary by vehicle and calibration task.
Use the specified targets and positioning equipment, and follow the instructions provided by the compatible Autel ADAS software and relevant vehicle service information.
Configuration Check
Choose the MA600 frame when you need the frame platform for an existing or separately configured ADAS setup. Before ordering, confirm your tablet compatibility, ADAS software status, target requirements and any additional mounting or positioning accessories.
Need help checking your setup? Email support@autel-us.com with your current equipment and intended calibration tasks. We can help review the configuration requirements before you purchase.
The MA600 frame is one component of an ADAS calibration setup. Before ordering this frame-only configuration, confirm the tablet, software, targets and workspace required for your intended calibration procedures.
Use the frame with a compatible Autel MaxiSYS tablet configured for the required ADAS calibration procedures. Tablet compatibility, ADAS software access and vehicle coverage must be checked for your specific setup.
Owning a MaxiSYS diagnostic tablet does not by itself confirm that the required ADAS software or calibration procedure is available.
Select compatible targets, holders, mounting adapters and positioning equipment according to the calibration instructions for the vehicle.
The frame alone does not provide a complete LDW, ACC, blind spot, around-view or night vision calibration setup. Additional equipment requirements vary by application.
Calibration support depends on the vehicle and installed system, the available software procedure and the equipment used. A vehicle brand match alone is not sufficient to confirm compatibility.
The portable frame can be moved between work areas, but each location must meet the requirements of the applicable calibration procedure.
Check floor conditions, lighting, working clearance, vehicle preparation and target placement before starting. Follow the relevant Autel instructions and vehicle service information.
Check compatibility before purchasing. Email support@autel-us.com with your tablet model, ADAS software status, existing targets and accessories, vehicle details and required calibration task.
We can help review the equipment requirements and confirm the supplied frame configuration before you order.
| Autel MaxiSYS ADAS MA600 User Manual | Download | |
| Autel ADAS MA600 Calibration Toolset User Manual | Download |
These official manuals cover the MA600 platform and associated calibration equipment. Targets, tablets and accessories shown in the manuals do not define the contents of this frame-only listing. Refer to the What's Included section for this product's supplied configuration.
This listing is for the Autel MA600 US Version frame-only configuration. It is intended for use with compatible, separately configured ADAS calibration equipment.
| Item | Supplied Configuration |
|---|---|
| MA600 Calibration Frame | Portable calibration frame with base, main column and collapsible crossbar assembly. |
| MaxiSYS Tablet | Not included. A compatible tablet is required for the applicable Autel ADAS calibration workflow. |
| ADAS Software | No ADAS software upgrade is included with this frame-only configuration. Confirm software requirements for your existing tablet before ordering. |
| Calibration Targets & Application Accessories | Not included in this frame-only configuration. Required targets and application-specific accessories depend on the vehicle and calibration procedure. |
Need a complete calibration package? The MA600 frame-only configuration differs from the MA60020 LDW package and other MA600 system packages. Choose according to the equipment you already own and the calibration services you intend to perform.
To confirm the supplied configuration and any additional equipment needed, email support@autel-us.com before ordering.
Choose the frame-only configuration or an LDW calibration package according to your existing tablet, software and targets. The main difference is the supplied equipment configuration.
| Configuration | MA600 Frame Only | This Product | MA60020 LDW 2.0 Package | MA60020T LDW Package with Tablet |
|---|---|---|---|
| Portable MA600 Frame | Included | Included | Included |
| LDW Targets | Not included | Included | Included |
| MaxiSYS Tablet | Not included | Not included | Included |
| ADAS Software Configuration | Requires separately configured compatible tablet and ADAS software | ADAS software upgrade included for a compatible tablet | Supplied with a tablet configured for the package's ADAS workflow |
| Additional Calibration Applications | ACC, blind spot, around-view and night vision applications require the appropriate compatible equipment and supported software procedures. Application-specific equipment is not included in these frame-only or LDW configurations. | ||
| Choose This Configuration If | You need the frame and already own, or plan to source, compatible software, targets and other required equipment. | You need the frame and LDW targets and already own a compatible MaxiSYS tablet. | You need an LDW package that also supplies a tablet. |
| Confirm Before Ordering | Existing equipment compatibility and any additional components required | Tablet eligibility, software requirements and target coverage | Current supplied tablet model and vehicle-specific calibration coverage |
Package contents do not guarantee support for every vehicle. Available procedures depend on the vehicle, software and equipment configuration. Review the selected product's What's Included section for its supplied contents.
Before purchasing, email support@autel-us.com with your existing equipment and intended calibration tasks. We can help you compare configurations and identify additional requirements.
Check frame contents, existing equipment compatibility and calibration requirements before ordering the MA600 US Version.
This listing supplies the portable MA600 calibration frame, including its base, main column and collapsible crossbar assembly.
A MaxiSYS tablet, ADAS software upgrade and calibration targets are not included in this frame-only configuration. Refer to the What's Included section for the supplied configuration.
For confirmation before ordering, email support@autel-us.com.
This MA600 listing is the frame-only configuration. MA60020 adds an LDW target package and an ADAS software upgrade for a compatible, separately purchased MaxiSYS tablet. MA60020T is an LDW package that also includes a tablet.
Choose according to the equipment you already own and the calibration tasks you intend to perform. Confirm the current contents of the selected package before ordering.
The tablet must support the required Autel ADAS software and vehicle-specific calibration procedure. Owning a MaxiSYS diagnostic tablet alone does not confirm ADAS compatibility.
Before purchasing, email support@autel-us.com with your exact tablet model, software status, vehicle details and required calibration task. Please confirm compatibility before ordering the frame.
No ADAS software upgrade or Total Care renewal is included with this frame-only listing.
ADAS software access and a diagnostic software renewal are different purchase considerations. If you already have a tablet, confirm its ADAS software status and any additional software requirements before buying an upgrade or renewal.
Email support@autel-us.com with your tablet model and current software information for assistance.
Existing targets and accessories must be checked for compatibility with the MA600 mounting arrangement and the required calibration procedure. A matching vehicle brand or similar-looking target does not establish compatibility.
Before ordering, email support@autel-us.com with the part numbers or clear photos of your targets, holders and positioning equipment, together with the vehicles and calibration tasks you intend to support.
No. The frame is a positioning platform within a calibration setup. Completing a procedure requires a compatible tablet, the supported ADAS software procedure and the specified targets and accessories.
LDW camera, ACC radar and blind spot calibration can require different equipment. Purchasing the frame alone does not provide all of these calibration capabilities.
The collapsible frame supports transport and storage, but each calibration location must meet the applicable procedure's requirements. Check floor conditions, lighting, working clearance, vehicle preparation and target placement.
Before purchasing for mobile use or a restricted workspace, email support@autel-us.com with your intended vehicles, calibration tasks and available workspace details. We can help review equipment requirements; final setup must follow the applicable calibration instructions.
Check the exact vehicle and ADAS system against the available Autel software procedure and its required equipment. Vehicle make alone is not sufficient to confirm coverage.
Email support@autel-us.com before ordering. Include the vehicle year, make, model and market, the system or sensor requiring calibration, your tablet model and any targets or accessories you already own.
We can help review the configuration and identify additional equipment requirements before you purchase.
