Autel MaxiALIGN IWA500ACT Wheel Alignment System with Cabinet | US Version
US Version | North American Market
- Application: Dedicated wheel alignment system for professional workshops.
- Included: Alignment frame, 10.1-inch tablet, MaxiVCI V200, four rim clamps with positioning targets and an Autel-branded metal storage cabinet.
- Configuration: Choose IWA500ACT for the cabinet-equipped package, or IWA500T if you do not need the storage cabinet.
- Support: One year of tablet software updates and a one-year limited warranty covering the system, tablet and cabinet.
Check your workshop setup before ordering.
Email
support@autel-us.com
with your lift model, bay dimensions, intended cabinet
location and required vehicle functions. ADAS camera
and radar calibration require additional equipment
and applicable software separately.
Autel MaxiALIGN IWA500ACT — Wheel Alignment System with Storage Cabinet
The Autel MaxiALIGN IWA500ACT US Version combines a dedicated wheel alignment system with a 10.1-inch MaxiALIGN tablet, Bluetooth MaxiVCI V200, four rim clamps with positioning targets and a metal storage cabinet. It brings guided measurement, supported adjustment functions and digital reporting together for professional alignment service.
- Cabinet-equipped package: The included Autel-branded metal cabinet provides storage for rim clamps and accessories. Choose IWA500ACT when you need the alignment package with dedicated storage; IWA500T excludes the cabinet.
- Alignment measurements: View camber, caster, toe and thrust angle, with additional measurements such as rolling diameter and symmetry values available through the applicable workflow.
- Guided adjustment functions: Follow on-screen instructions and real-time feedback for supported MaxiToe, wheel-off and raised-vehicle adjustments. Steering angle sensor calibration and other post-alignment tasks depend on the vehicle and installed software.
- Mobile workshop configuration: Reposition the alignment frame between suitable service bays. Confirm lift compatibility, working clearance and surface requirements before ordering.
- Digital service documentation: Generate alignment reports to record measurements and completed adjustments, with supported options to save, print or share results.
- Updates and warranty: Includes one year of tablet software updates and a one-year limited warranty covering the system, tablet and cabinet.
The IWA500ACT is a dedicated wheel alignment package. ADAS camera and radar calibration require the applicable calibration frame, targets, software and related equipment separately. Vehicle coverage and available functions vary by vehicle and installed software.
Confirm your workshop setup before ordering. Email support@autel-us.com with your lift make and model, available bay dimensions, target vehicles and required functions so we can help review the appropriate configuration before purchase.
Wheel Alignment with Dedicated Storage

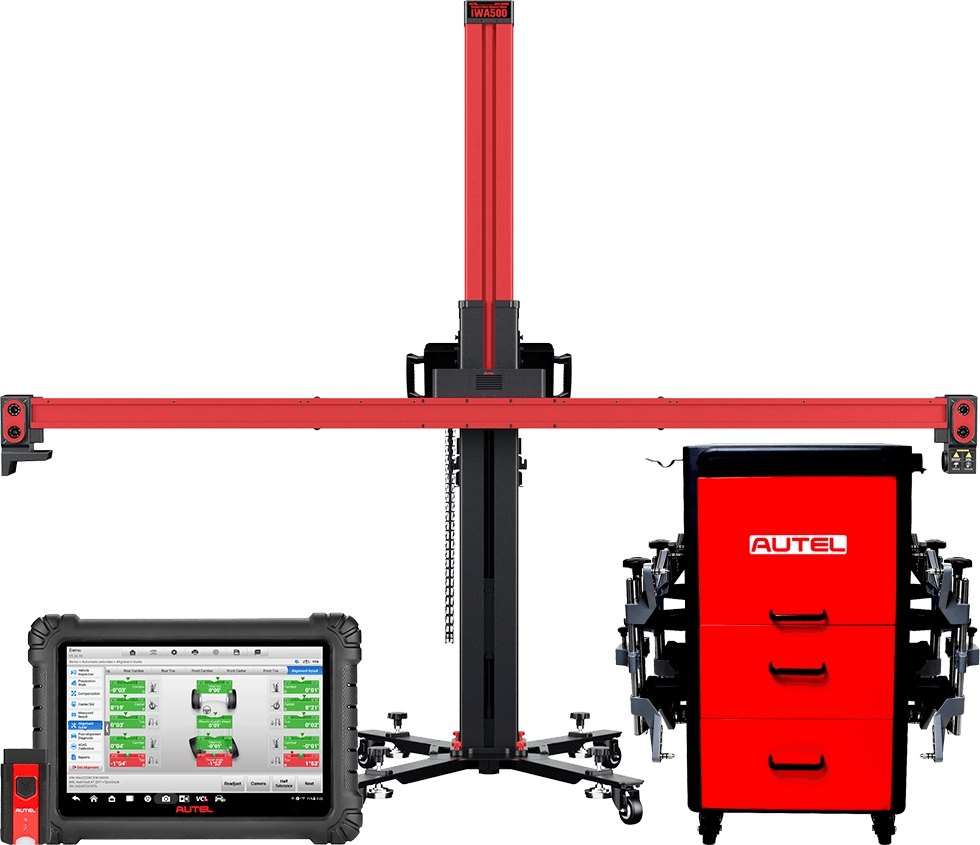

The Autel MaxiALIGN IWA500ACT US Version combines the IWA500 alignment system with a dedicated 10.1-inch tablet, Bluetooth MaxiVCI V200, four rim clamps with positioning targets and an Autel-branded metal storage cabinet.
The cabinet provides dedicated storage for clamps and accessories, helping technicians keep the alignment equipment organized between jobs. Choose IWA500ACT for the cabinet-equipped package, or IWA500T if you do not need the cabinet.
Guidance from Setup to Adjustment

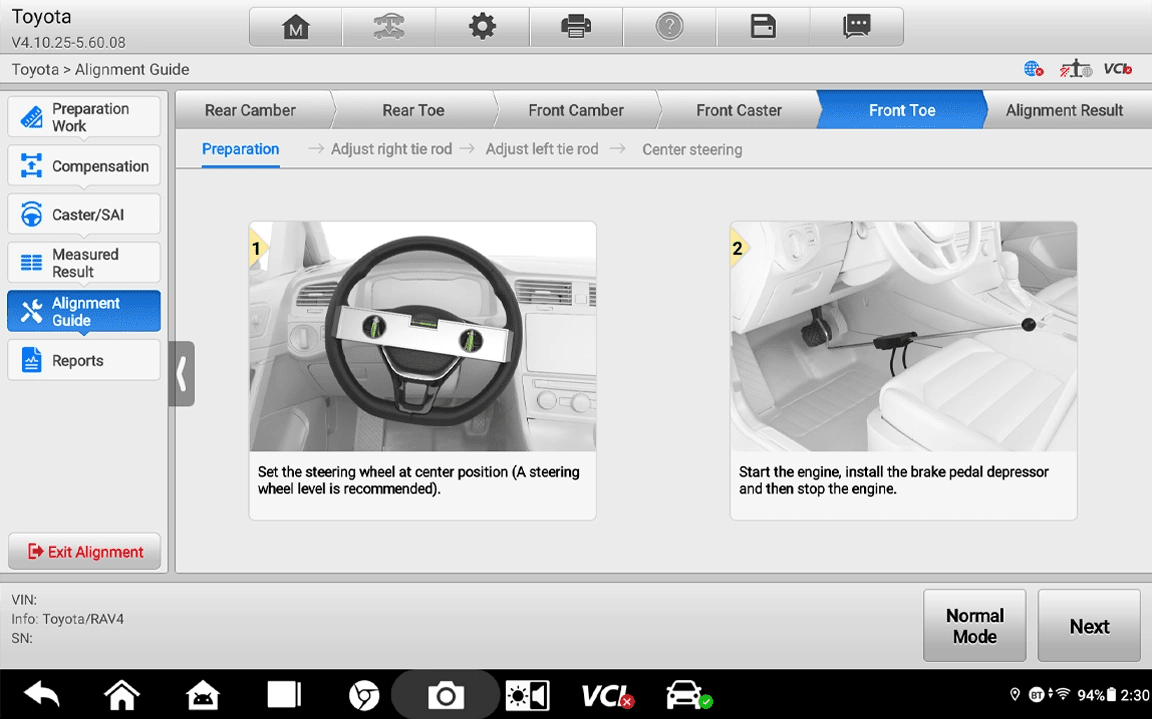

Follow graphical instructions through vehicle preparation, measurement and adjustment. The MaxiALIGN tablet brings procedural guidance and real-time measurement feedback together so technicians can monitor changes as they work.
Supported workflows include MaxiToe, wheel-off adjustment and raised-vehicle adjustment. MaxiToe guides toe adjustment to help center the steering wheel without a holder when supported by the vehicle and procedure. Confirm required functions for your target vehicles before ordering.
Alignment Measurements at a Glance

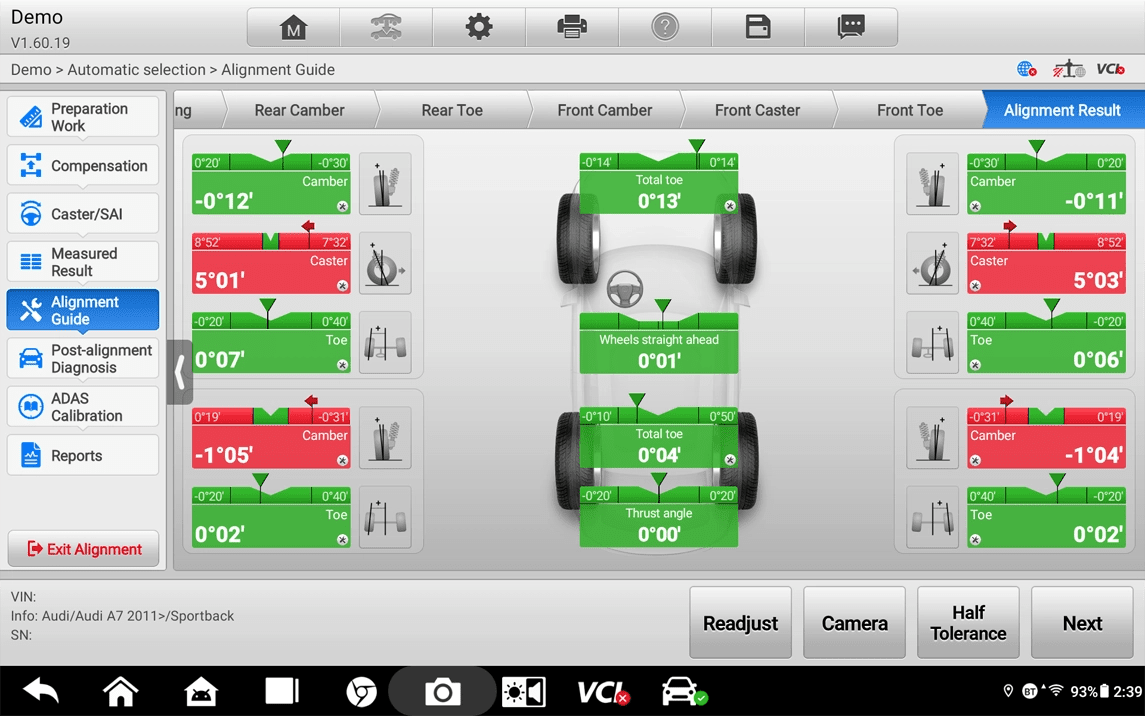

View camber, caster, toe and thrust angle alongside the applicable vehicle specifications. Color-coded readings help technicians identify measurements that require attention during the alignment procedure.
Additional measurements include rolling diameter and symmetry values. Available measurements, adjustment modes and post-alignment tasks depend on the selected vehicle, equipment configuration and installed software.
A Mobile Frame for Suitable Service Bays

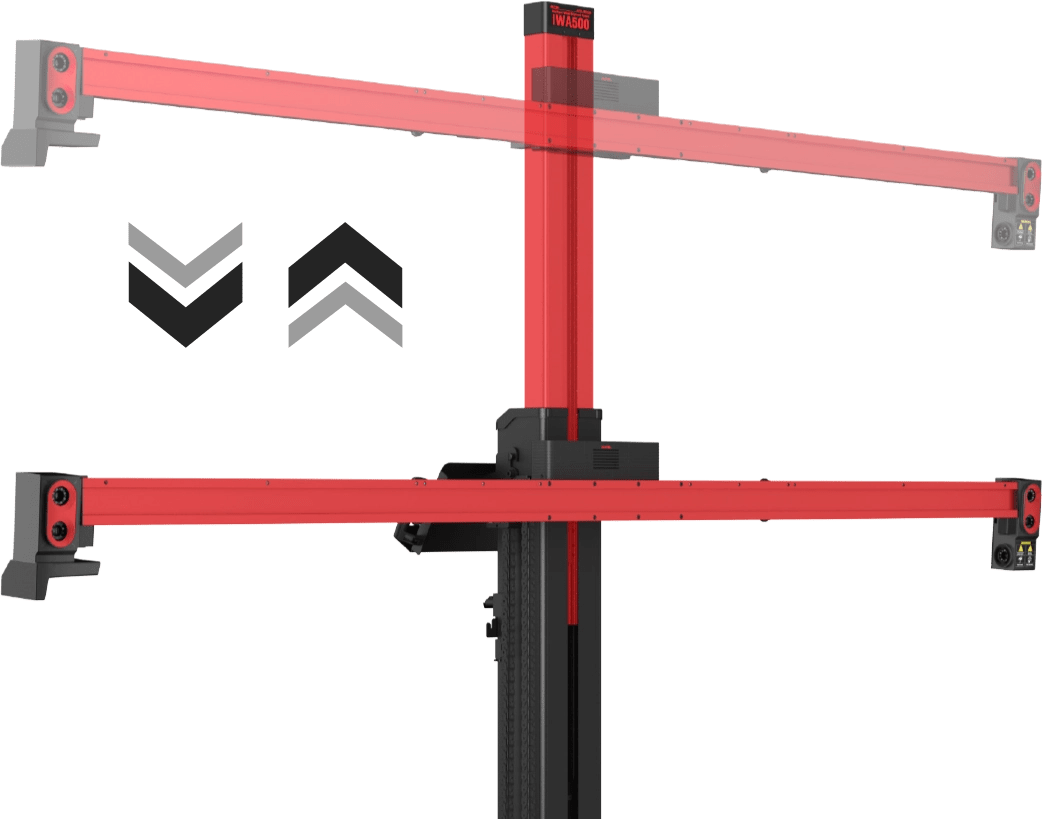

Reposition the alignment frame between suitable service bays. Automatic crossbar height tracking helps maintain target visibility as the vehicle is raised or lowered with the lift.
Each bay must still meet the applicable surface, clearance and equipment-positioning requirements. Provide your lift model and available working space before purchase so we can help review the intended setup.
Reports That Document the Service

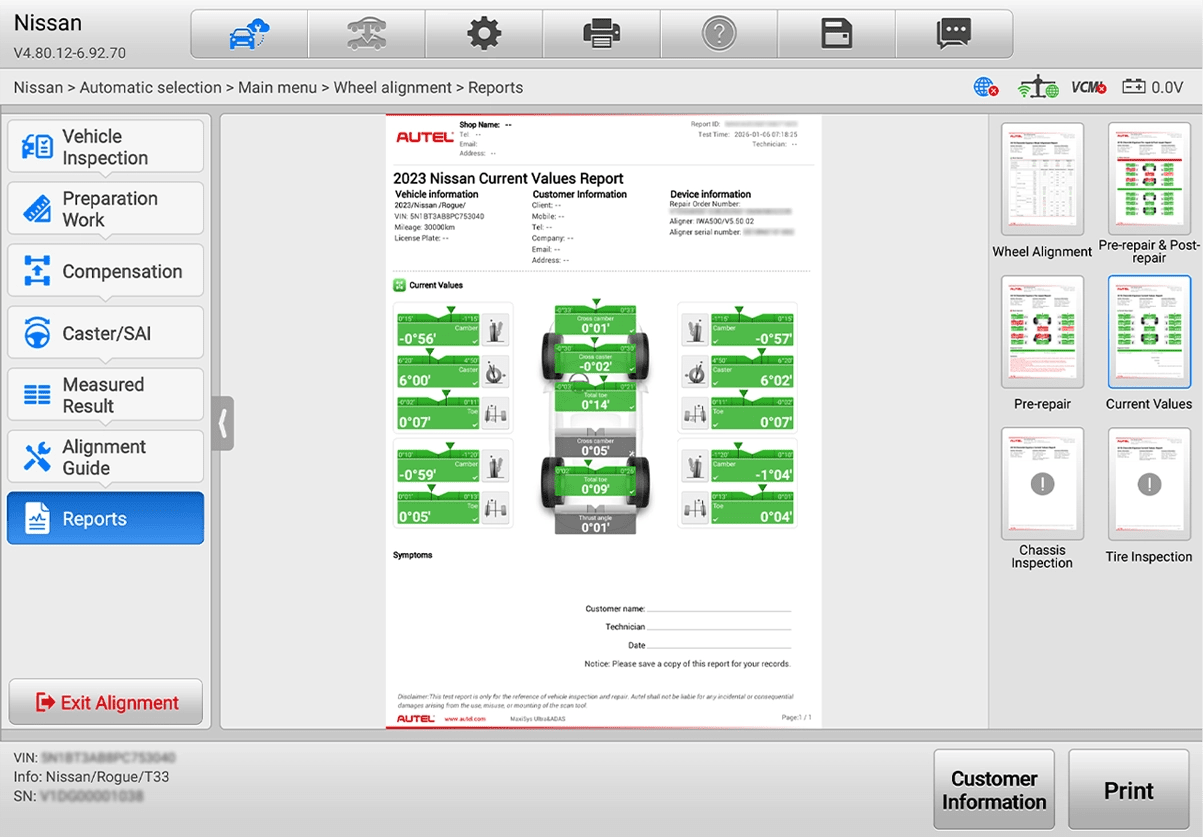

Generate pre- and post-alignment reports to record measured values and completed adjustments. Reports help technicians explain the work to customers and retain a service record.
Save, print or share supported reports digitally. Available report content depends on the vehicle, selected procedure and installed software.
Confirm your configuration before ordering. Email support@autel-us.com with your lift make and model, available bay dimensions, target vehicles and required functions. ADAS camera and radar calibration require the applicable calibration equipment and software separately.
Package Configuration
| Specification | IWA500ACT |
|---|---|
| System | MaxiALIGN IWA500 wheel alignment system |
| Control tablet | MaxiALIGN IWA500 tablet |
| Tablet display | 10.1-inch touchscreen |
| Vehicle communication interface | Bluetooth MaxiVCI V200 |
| Wheel attachment configuration | Four rim clamps with four positioning targets |
| Storage cabinet | Included — Autel-branded metal rim-storage cabinet |
Alignment Frame
| Specification | IWA500 Frame |
|---|---|
| Alignment frame model | AUTEL-CSCW500 |
| Resolution per camera | 3072 × 2048 pixels |
| Crossbar length | 2671.60 mm (105.18 in) |
| Frame height range | 1456–2406 mm (57.32–94.72 in) |
| Crossbar height range | 300–2200 mm (11.81–86.61 in) |
| Compatible control tablet | MaxiALIGN IWA500 |
Frame Power & Operating Conditions
| Specification | IWA500 Frame |
|---|---|
| Rated power | 260 W |
| Power supply | 100–264 V AC, 50/60 Hz |
| Maximum current | 5 A |
| Operating temperature | −10 to 50°C (14 to 122°F) |
| Storage temperature | −20 to 60°C (−4 to 140°F) |
Software Updates & Warranty
| Item | Included Coverage |
|---|---|
| Tablet software updates | One year included |
| Limited warranty | One year — system, tablet and cabinet |
Frame specifications apply to the IWA500 alignment frame, not the storage cabinet. Confirm lift compatibility, available working space and any additional equipment required for your intended procedures before ordering.
Need help checking your setup? Email support@autel-us.com with your lift model, bay dimensions and required vehicle functions.
Vehicle Coverage & Function Availability
The Autel IWA500ACT is a dedicated wheel alignment package with a tablet and storage cabinet. Autel publishes coverage for U.S., Asian and European vehicles from 1975 to current production. Confirm your specific vehicles and required procedures before purchase; broad vehicle coverage does not mean every function is available on every model.
| Application | What to Confirm |
|---|---|
| Vehicle identification & alignment specifications | Check the year, make, model and configuration of your intended vehicles against the available alignment database. |
| Alignment measurements | Camber, caster, toe and thrust angle are core measurements. Additional measurements and adjustment workflows depend on the selected vehicle and procedure. |
| Advanced adjustment functions | Confirm availability of MaxiToe, wheel-off adjustment, raised-vehicle adjustment and other required functions for your target vehicles. |
| SAS & post-alignment tasks | Steering angle sensor calibration and other supported post-alignment tasks depend on the vehicle and software. Follow the required VCI connection and vehicle-specific procedure. |
| ADAS camera & radar calibration | The IWA500ACT package is not a complete ADAS calibration setup. Applicable calibration frames, targets, software and related equipment are required separately for those procedures. |
Check Your Workshop Setup
- Lift and working clearance: Provide your lift make and model, available bay dimensions and working clearance so the intended setup can be reviewed against the applicable installation and alignment requirements.
- Floor and positioning: The mobile frame can move between suitable bays. Each working area must still meet the required surface, clearance and equipment-positioning conditions.
- Storage cabinet placement: Allow space for the included cabinet, drawer access and clamp handling without obstructing the alignment work area or vehicle access. Confirm cabinet dimensions before planning a restricted storage location.
- Wheel clamps and targets: This listing includes four rim clamps with positioning targets. Do not assume an alternative tire-clamp configuration is included.
- Additional accessories: Some vehicle procedures require additional equipment, such as an appropriate inclinometer. Confirm the accessories needed for your intended work and whether they are included or sold separately.
Confirm Compatibility Before Ordering
Email support@autel-us.com with:
- Vehicle year, make, model and required measurements or functions.
- Lift make and model, bay length and width, working clearance and intended cabinet location.
- Model numbers of existing Autel equipment and accessories you plan to use.
We can help review the appropriate configuration and identify any additional equipment required before you purchase.
Autel MaxiALIGN IWA500ACT — US Version. This package includes the alignment system, tablet, VCI, rim clamps with positioning targets and a metal storage cabinet.
System Hardware & Storage
| Included Item | Quantity |
|---|---|
| IWA500 alignment frame | 1 |
| MaxiALIGN IWA500 10.1-inch tablet | 1 |
| Bluetooth MaxiVCI V200 | 1 |
| Tablet holder | 1 |
| Autel-branded metal rim-storage cabinet | 1 |
Standard Accessories — Rim Clamp Configuration
| Included Item | Quantity |
|---|---|
| Rim clamps | 4 |
| Positioning targets | 4 |
| Brake pedal depressor | 1 |
| Steering wheel holder stand tool | 1 |
| Wheel chocks | 2 |
| 12/24 V power cord | 1 |
| AC power cord | 1 |
| Equipment cover | 1 |
Alignment Frame Assembly Hardware & Tools
| Included Item | Quantity |
|---|---|
| M5 × 20 screws | 5 |
| M4 × 10 spare screws | 3 |
| 2.5 mm hex L-wrench | 1 |
| 4 mm hex L-wrench | 1 |
Check the Configuration Before Ordering
- Storage cabinet included: IWA500ACT supplies the cabinet-equipped package. The IWA500T configuration excludes the cabinet.
- Rim-clamp configuration: This listing includes four rim clamps and four positioning targets. An alternative tire-clamp configuration is not included.
- Additional equipment: A vehicle lift, ADAS calibration frames and targets, and optional alignment accessories are not included in the package listed above. Confirm any additional equipment required for your intended procedures.
Need help checking the package? Email support@autel-us.com with your existing equipment, target vehicles and required functions before ordering.
Compare Wheel Alignment Configurations
Compare the cabinet-equipped IWA500ACT with the IWA500T package and the IA900WAT frame-and-tablet configuration. Choose according to your alignment work, storage needs and ADAS calibration plans.
On smaller screens, swipe horizontally to view all three configurations.
| Selection Guide | IWA500ACT Current product · Alignment package with cabinet | IWA500T Alignment package without cabinet | IA900WAT IA900WA frame + ULTRAADAS tablet |
|---|---|---|---|
| Primary purpose | Dedicated wheel alignment | Dedicated wheel alignment | Wheel alignment and an ADAS-capable calibration platform |
| Core package | IWA500 alignment system, MaxiALIGN tablet, VCI, four rim clamps with targets and storage cabinet | IWA500 alignment system, MaxiALIGN tablet, VCI and four rim clamps with targets | IA900WA frame, ULTRAADAS tablet and alignment/ADAS software, with package accessories |
| Storage cabinet | Included | Not included | Confirm storage arrangements for the selected IA900 configuration |
| Operator display | 10.1-inch MaxiALIGN IWA500 tablet | 10.1-inch MaxiALIGN IWA500 tablet | 12.7-inch ULTRAADAS tablet and frame-mounted 24-inch touchscreen |
| Wheel alignment | Supported; available functions depend on the vehicle and software | Supported; available functions depend on the vehicle and software | Supported; available functions depend on the vehicle and software |
| ADAS calibration equipment | Applicable ADAS calibration frame, targets and software required separately | Applicable ADAS calibration frame, targets and software required separately | ADAS-capable frame and software included; select the required targets and calibration equipment for each intended application |
| Choose this configuration when… | You need the IWA500 alignment package with dedicated clamp and accessory storage | You need the IWA500 alignment package without a storage cabinet | You need wheel alignment and plan to configure an integrated ADAS calibration setup |
Compare complete configurations. IA900WAT is the frame-and-tablet package; confirm the contents of any IA900WA configuration separately. ADAS-capable hardware and software do not mean every required camera target, radar reflector or calibration accessory is included.
Need help choosing? Email support@autel-us.com with your lift model, available bay space, existing equipment and intended alignment or ADAS work before ordering.
Autel IWA500ACT FAQs
Compare cabinet-equipped packages, check workshop requirements and confirm the equipment needed for your alignment services before ordering.
Q1. What is included with the Autel IWA500ACT?
IWA500ACT includes the IWA500 wheel alignment system, a 10.1-inch MaxiALIGN tablet, Bluetooth MaxiVCI V200, four rim clamps with positioning targets and an Autel-branded metal storage cabinet, plus the listed standard accessories.
Review the What’s Included section for the itemized package. A vehicle lift and ADAS calibration equipment are not included.
Q2. Should I choose IWA500ACT or IWA500T?
Choose IWA500ACT if you need the alignment package with a storage cabinet for clamps and accessories. IWA500T excludes the cabinet.
If you already have suitable storage, IWA500T may suit your setup. The cabinet is a package difference; it should not be treated as an alignment-performance upgrade.
Q3. Will the alignment frame and cabinet fit my workshop?
Suitability depends on your lift, bay dimensions, working clearance and surface conditions. Allow additional space for cabinet placement, drawer access and handling the clamps without obstructing the work area.
Before ordering, email support@autel-us.com with your lift make and model, bay dimensions and intended cabinet location. Photos of the proposed setup can help us review the configuration.
Q4. Does IWA500ACT include everything needed for ADAS calibration?
No. IWA500ACT is a dedicated wheel alignment package. Camera and radar calibration require the applicable ADAS calibration frame, targets, software and related equipment separately.
If you plan to offer alignment and ADAS calibration, email support@autel-us.com with your intended vehicles and services before purchase so we can help compare suitable configurations.
Q5. Can I use an existing Autel tablet instead of the included tablet?
A dedicated 10.1-inch MaxiALIGN IWA500 tablet is included. Do not assume another MaxiSYS tablet can replace it.
Before planning to reuse existing equipment, email support@autel-us.com with its exact model and software details so we can help check compatibility.
Q6. Are tire clamps and an inclinometer included?
This package includes four rim clamps and four positioning targets. An alternative tire-clamp configuration and an optional inclinometer are not included in the listed package.
Some vehicle procedures require additional accessories. Confirm the equipment needed for your intended vehicles before ordering; the included storage cabinet does not indicate that every optional accessory is supplied.
Q7. Will IWA500ACT support my vehicles and required alignment functions?
Autel publishes broad U.S., Asian and European vehicle coverage, but individual measurements and functions depend on the vehicle, configuration and installed software. Brand coverage does not guarantee every function for every model.
Before purchase, email support@autel-us.com with the vehicle year, make, model and required functions, such as MaxiToe, wheel-off adjustment, raised-vehicle adjustment or steering angle sensor calibration.
Q8. What updates, warranty and setup support come with IWA500ACT?
Autel lists one year of tablet software updates and a one-year limited warranty covering the system, tablet and cabinet.
Before ordering, email support@autel-us.com to confirm setup and training arrangements for your order, software renewal options and any installation services you require. Do not assume in-shop installation or training is included.
