Autel MaxiVideo MV108S

Digital inspection camera

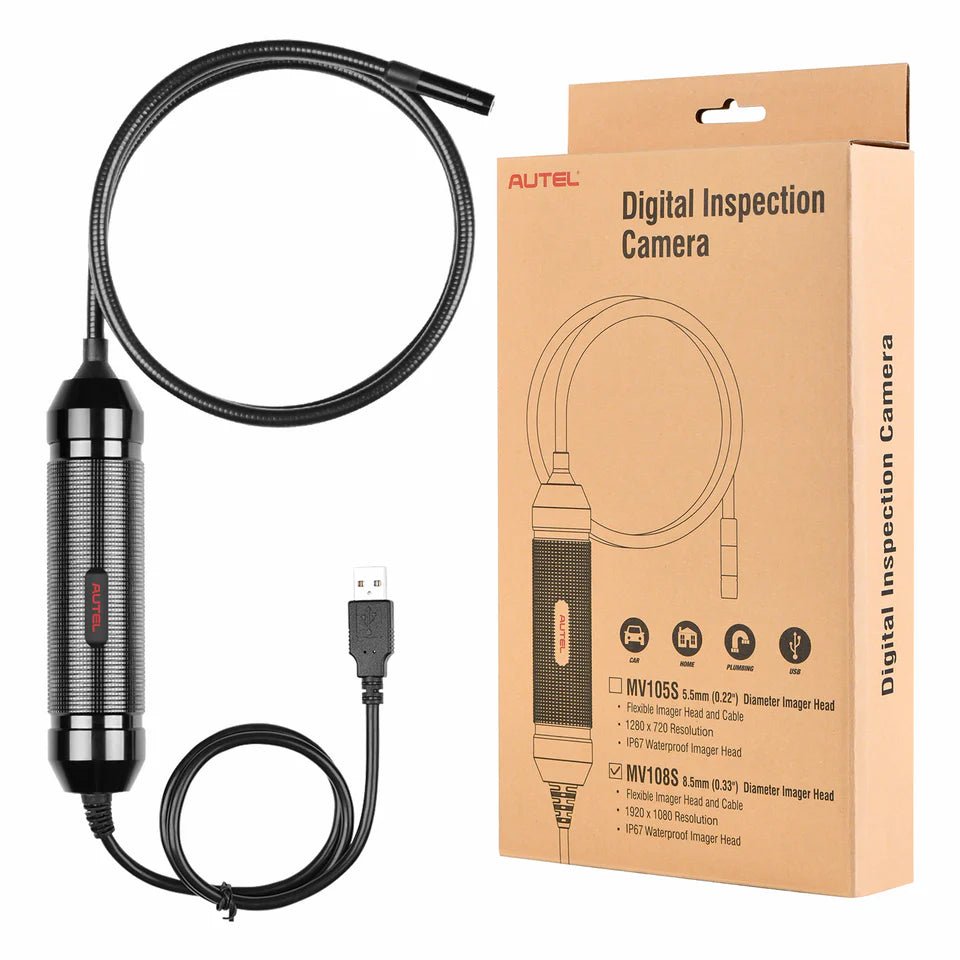

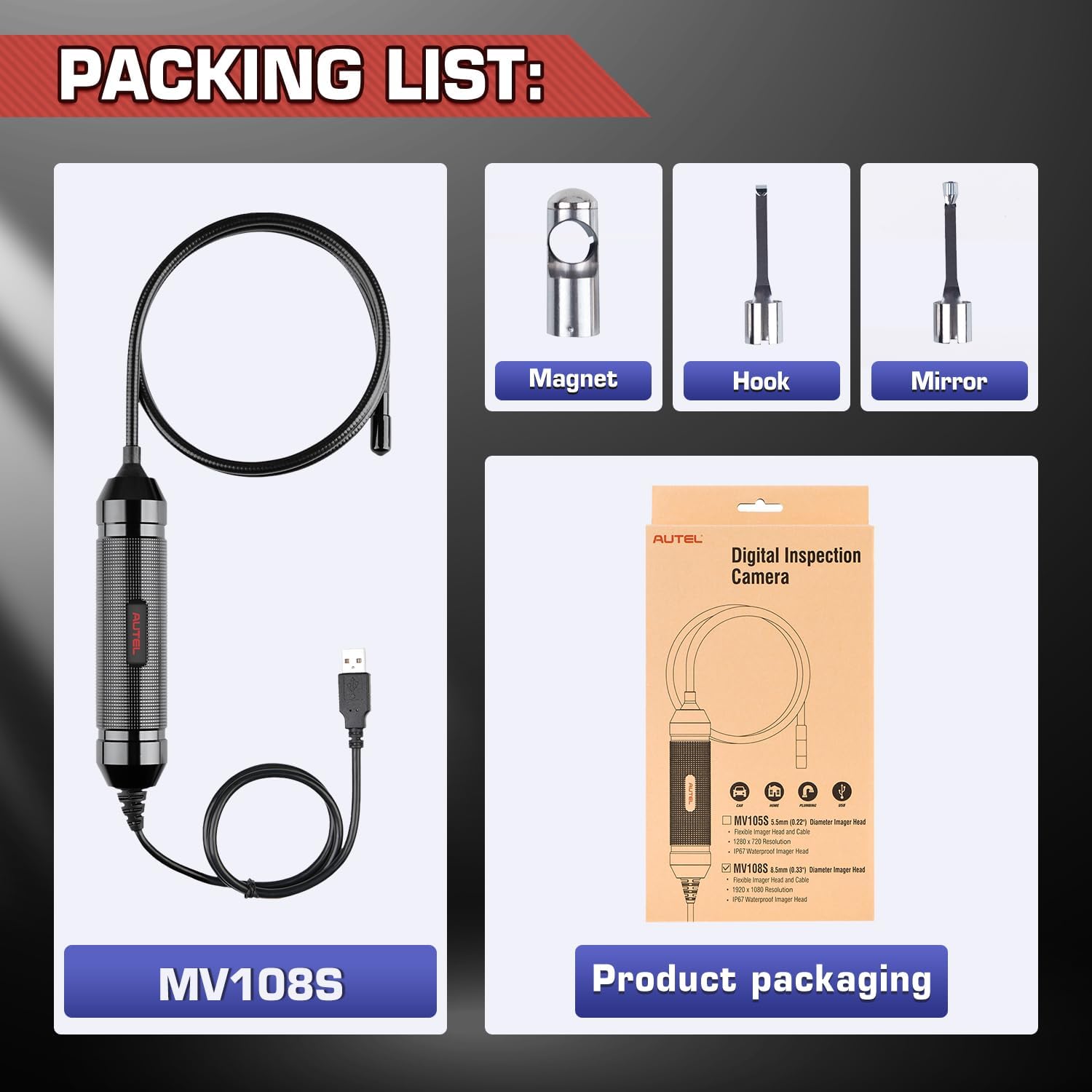

The MV108S digital inspection camera is designed to work with Autel diagnostic tablets. The MV108S features a 8.5mm camera head, 2 mega-pixel camera providing 1920×1080, LED illumination, and a 1-meter waterproof USB cable. It turns your Autel tablet into a video inspection scope, allowing you to examine difficult-to-reach areas hidden from sight. It is capable of recording digital still images and videos. Includes mirror, hook and magnet attachments. Covered by a one-year limited warranty.

**Autel MaxiVideo MV108S: 1920*1080 Resolution & 2MP Camera**

The MV108S digital inspection camera is designed to work with MaxiSys series products or PC. It turns your scanner into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight.

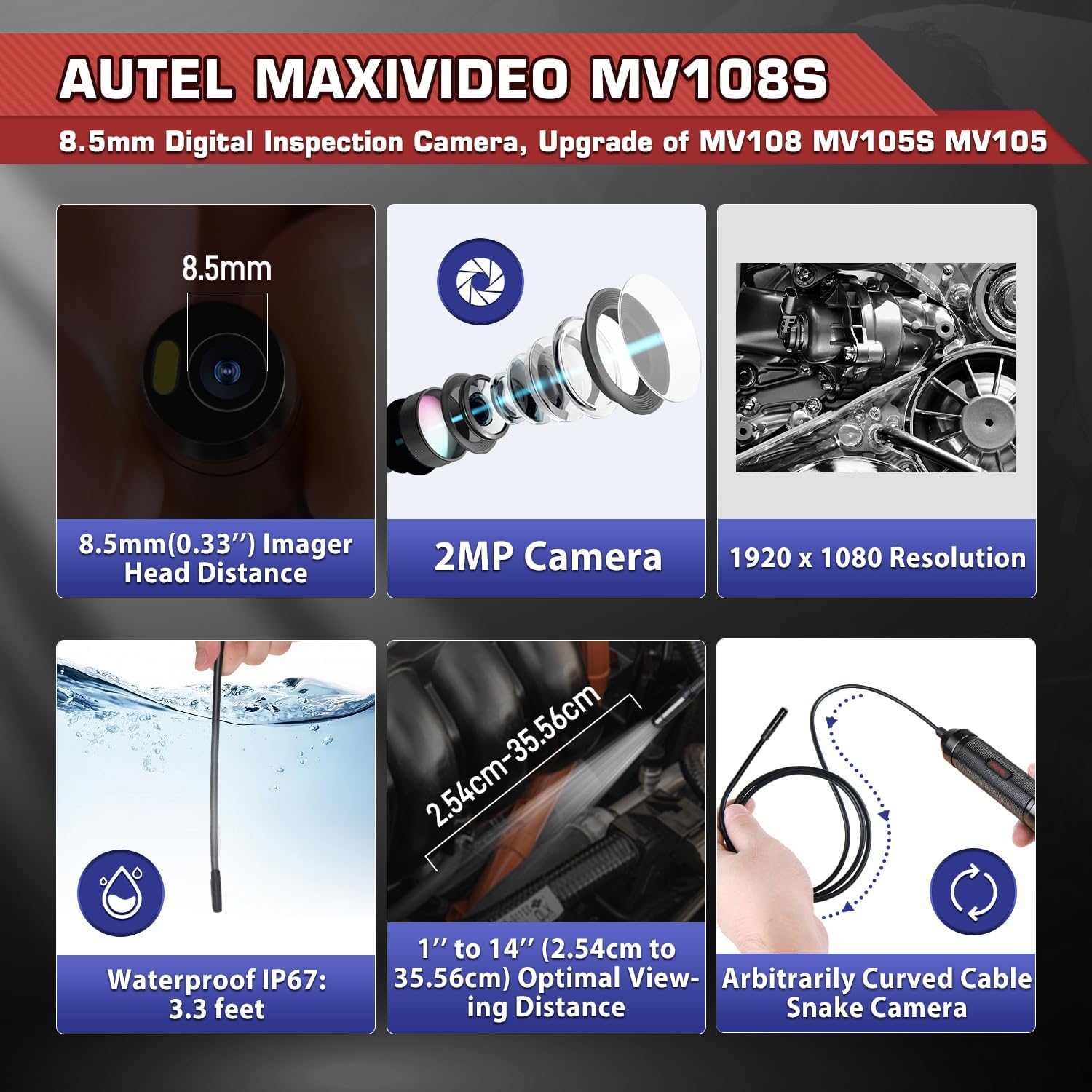

Equipped with 8.5mm(0.33’’) Diameter Imager Head, 1920*1080 Resolution, LED brighter light, Arbitrarily Curved Cable Snake Camera, MV108S offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
1. Imager Head Cable – connects to the tool when performing digital inspections for image and video viewing
2. Handgrip – ergonomically designed handle for comfortable grips and agile operation

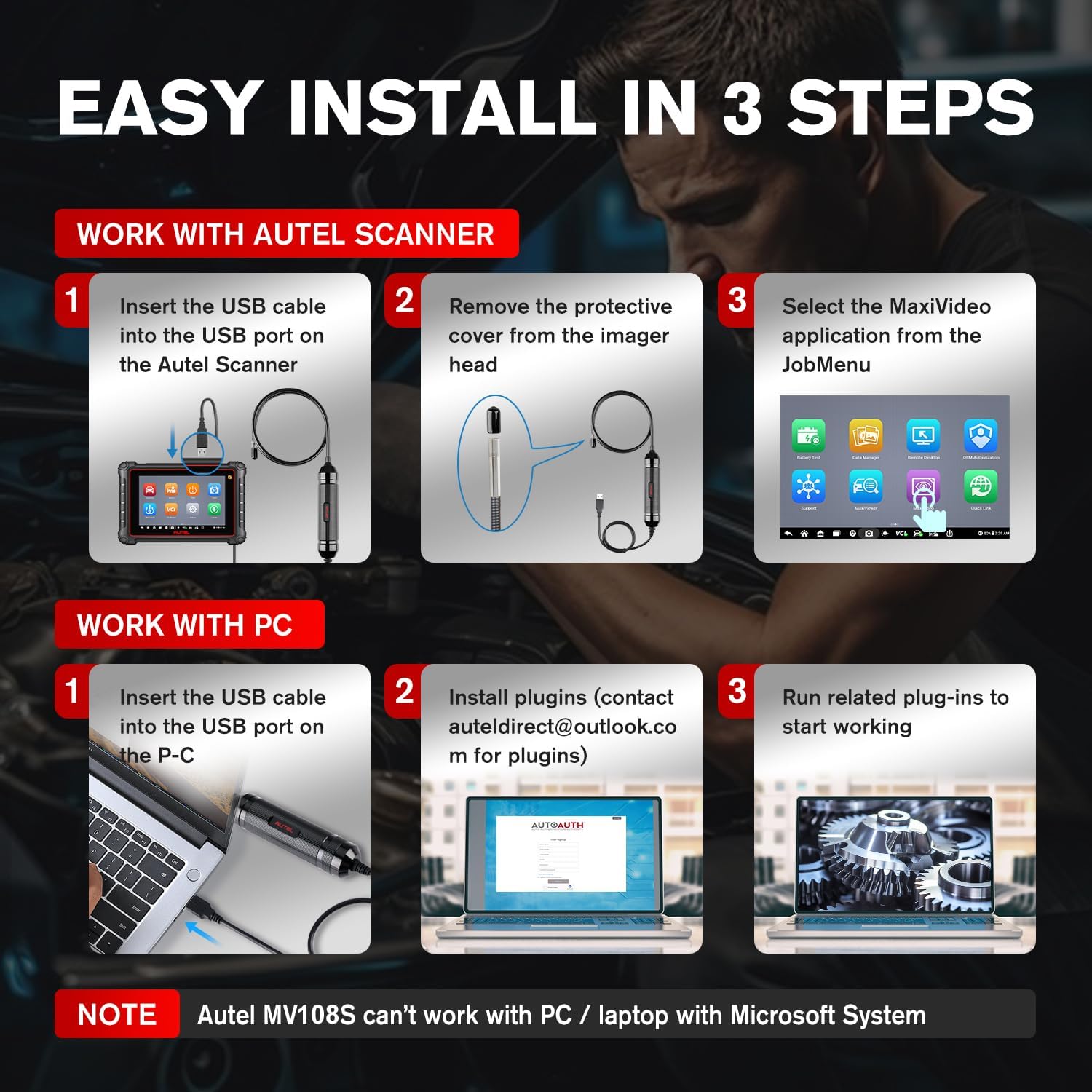

3. USB Cable – connects the Digital Inspection Camera to Autel scanner or PC

Widely Using Scenes---Check narrow Areas

Equipped with 8.5mm diameter camera, serpentine cable, MV108S is a utility device that enables video viewing, video recording and picture capture to hard-to-reach areas, such as cars/ automobiles/ Tractor/ motor repair, sewer inspection/ maintenance, ventilation pipe inspection, etc.
Widely used multipurpose endoscope:
1. Daily Use: Air Conditioning, HVAC Inspection, Air Duct Inspection; Bathroom Plumbing, Interior and In-Wall Inspection; Leakage or Blockage Troubleshooting, Camping Equipment, etc.
2. Industrial use: inspection and maintenance of automobile and motorcycle engines; inspection and maintenance of plumbing, ventilation pipes, machinery and equipment; building construction, cable wiring, refrigeration and home inspection, etc.
3. Scientific research: laboratory equipment, biological plant viewing and small animal viewing, bird nest viewing, etc.

Crystal Image---High-resolution Video

Compared with the MV105 endoscope, Autel MV108S has greatly improved on the pixels of pictures and videos, 640x480 resolution, brighter Led light, which is an ideal tool for car maintenance.
Autel MV108S Industrial endoscopes can capture clear images and vivid videos at close range, allowing you to see repairing areas on the scanner that are difficult to see with the naked eye, facilitating maintenance.
For get best image and video, make sure the viewing distance between endoscope camera and the object is approximately 1’’ to 14’’, too far or too close may degrade the image quality.

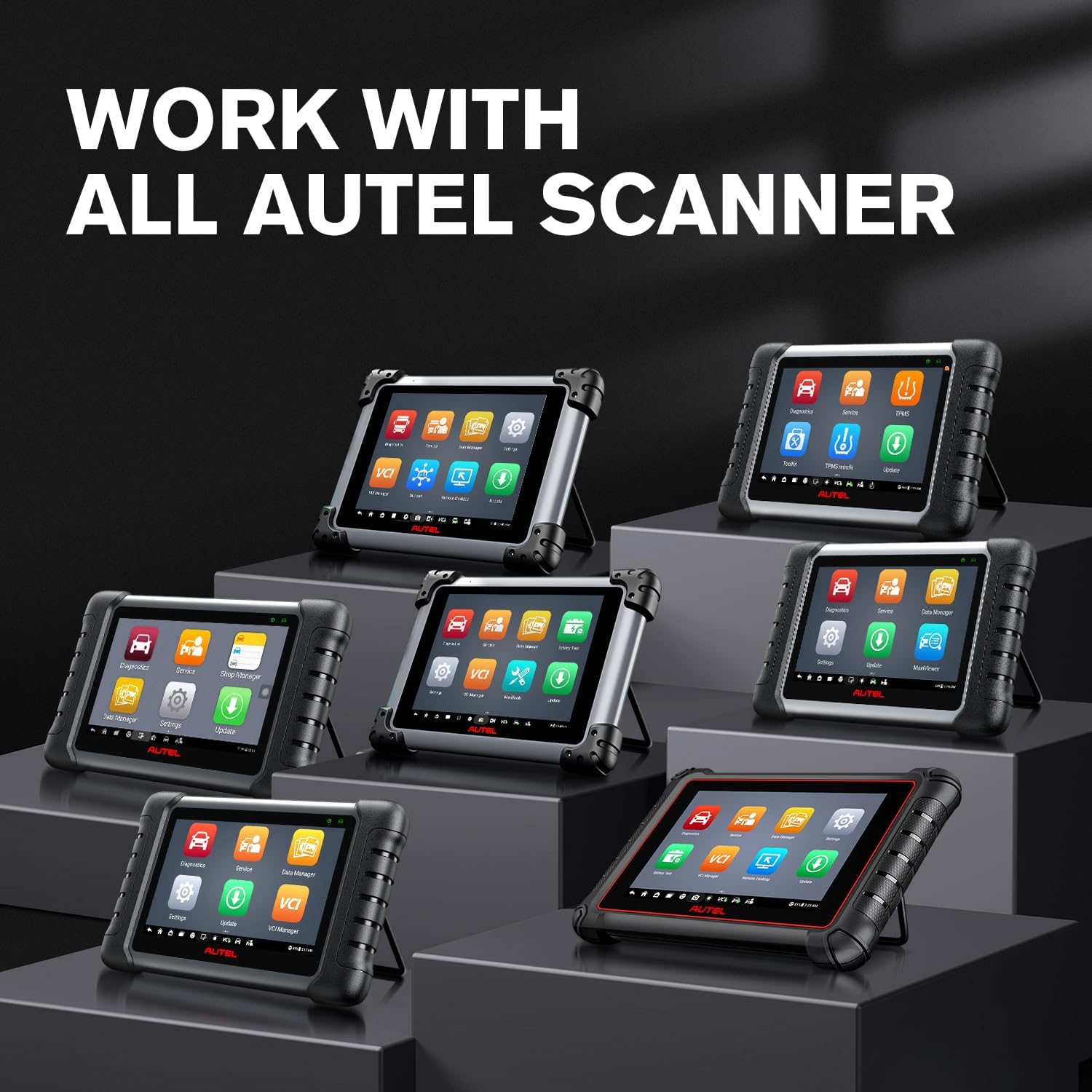

Work With All Autel Scanners:

-- MX900 TS900 Series: MX900 / MK900 / MP900 / TS900 / MP900BT / MK900-BT/ MK900-TS / MP900-TS / MX900-TS / MK900S / MP900TS
-- MK808 MX808 Series: MK808S MK808 MX808S MX808 MK808BT PRO MK808BT MK808S-TS MX808S-TS MK808Z-TS MK808TS MX808TS
-- MS906 MK906 Series: MS906 / MS906S / MS906TS / MS906BT / MK906BT / MS906 Pro / MK906 Pro / MS906 Pro-TS / MK906 Pro-TS
-- MS908 MK908 Series: MS908 / MK908 / MS908 PRO / MS908S / MS908S II / MS908S PRO II / MK908P / MK908 II / MK908 PRO II
-- Elite Series: Elite / Elite II / Elite II PRO
-- INTELLIGENT DIAGNOSTIC SERIES: MS909 / MS919 Ultra / Ultra S2 / UltraEV / MS909EV

HARDWARE SPEGIFIGATIONS

Name	parameters
Model	Autel MaxiVideo MV108S
Imager Head Distance	MV108S: 8.5 mm; MV105S: 5.5 mm
Camera	MV108S: 2 MP; MV105S: 1 MP
Resolution	MV108S: 1920 x 1080 / MV105S: 1280 x 720
Depth of Field	MV108S: 3cm to 8cm (1.18” to 3.15”) / MV105S: 2cm to 10cm (0.79” to 3.94”)
LED Beads	8 pcs
Imager Head Cable Length	1 m (39.37")
Waterproof Level (Imager Head)	IP67
Operating Temp	-10 °C to 70 °C (14 °F to 158 °F )
Storage Temp	-10 °C to 70 °C (14 °F to 158 °F )
